Components [05/2019 - ]
| Callout | Description | Callout | Description |

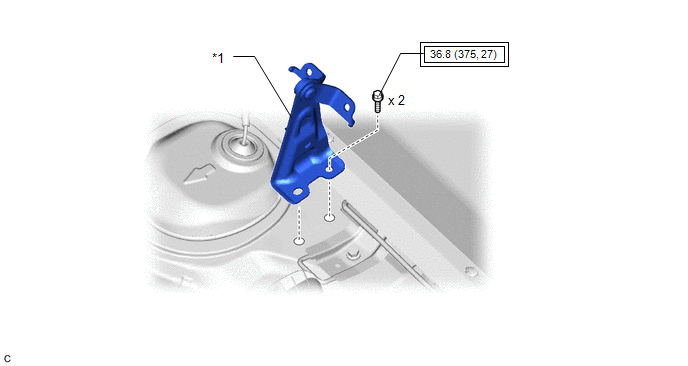

| *1 | CENTER REAR SEATBACK HINGE SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

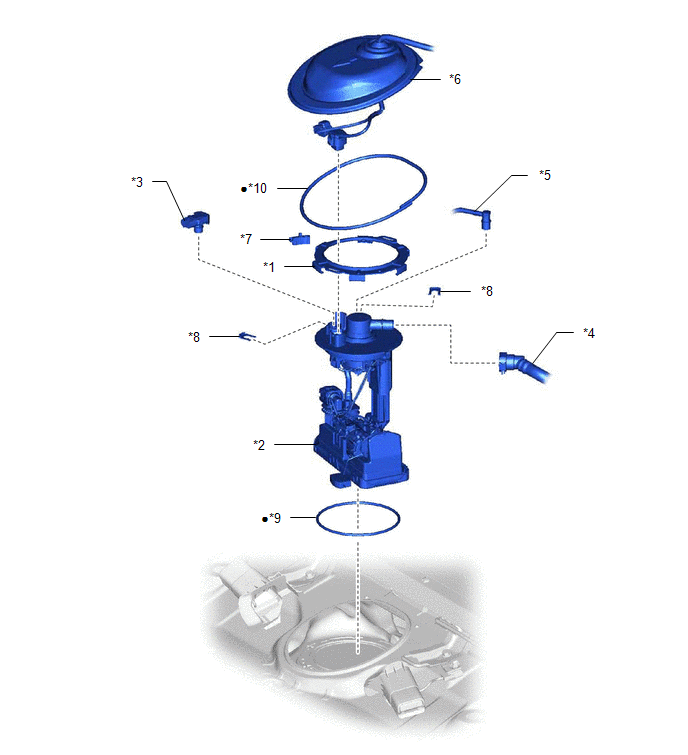

| *1 | FUEL PUMP GAUGE RETAINER | *2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 | FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR) | *4 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *5 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *6 | REAR FLOOR SERVICE HOLE COVER |
| *7 | NO. 1 FUEL TUBE CLAMP | *8 | TUBE JOINT CLIP |
| *9 | FUEL SUCTION TUBE SET GASKET | *10 | BUTYL TAPE |
| • | Non-reusable part | - | - |
| *1 | FUEL PUMP | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | NO. 1 FUEL SUB-TANK | *4 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *5 | NO. 2 FUEL SUCTION SUPPORT | *6 | FUEL PUMP HARNESS |
| *7 | O-RING | *8 | FUEL PUMP SPACER |
| • | Non-reusable part | - | - |
