Components [11/2015 - ]: Illustration

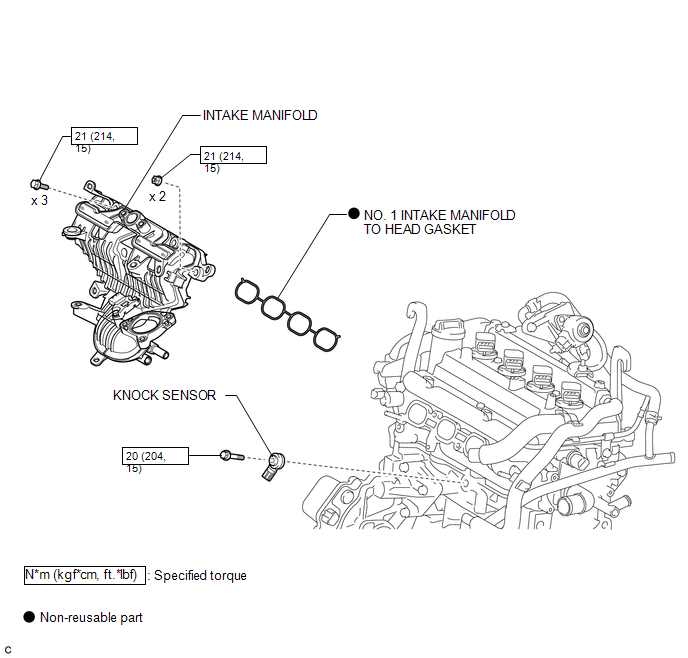

Fig 1: Knock Sensor Replacement Components With Torque Specifications

GTY726152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
