System Diagrams

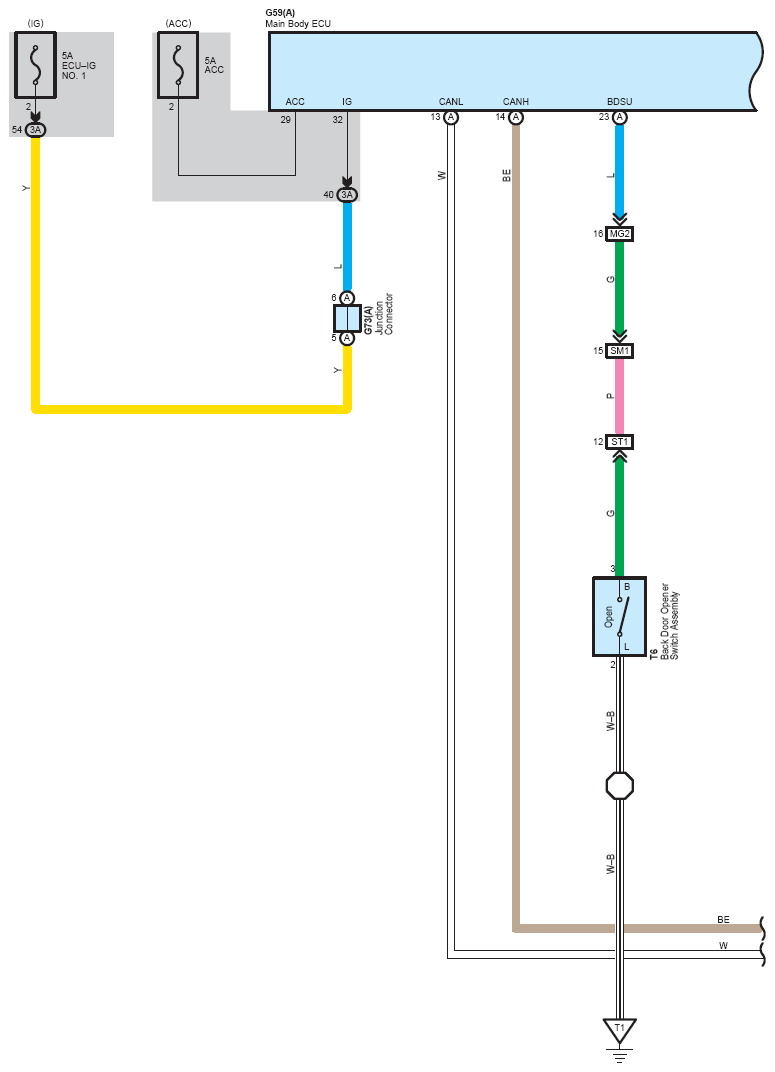

Fig 1: Back Door Opener (W/O Smart Key System) (1 Of 3)
G12211182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

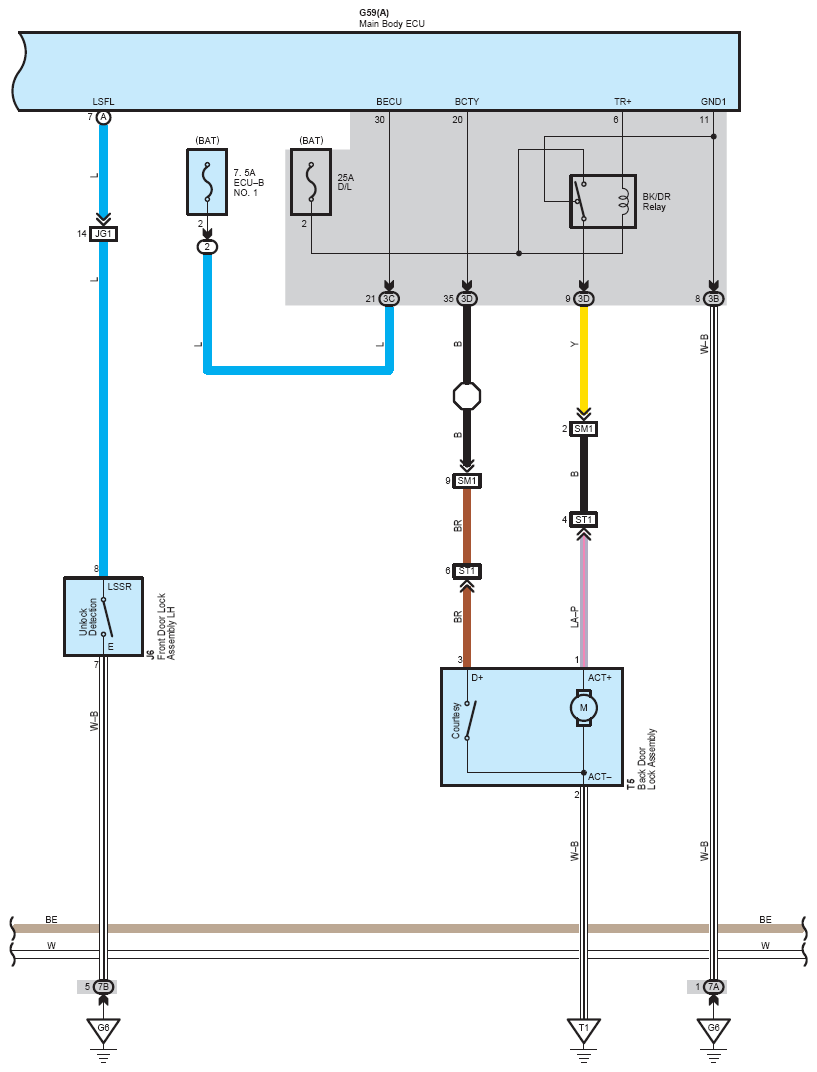

Fig 2: Back Door Opener (W/O Smart Key System) (2 Of 3)
G12211183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Back Door Opener (W/O Smart Key System) (3 Of 3)
G12211184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
