Removal [11/2015 - ]: Procedure

  1. REMOVE REAR CONSOLE BOX COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE VSC OFF SWITCH

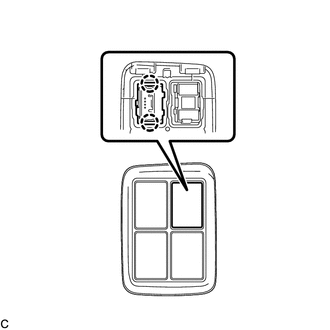

    1. Disengage the 2 claws to remove the VSC OFF switch from the rear console box cover.
      GTY476502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
