Brake Control System (Service Information)
>>
Front Speed Sensor
>>
Components [11/2015 - ]
>>
Illustration
Components [11/2015 - ]: Illustration

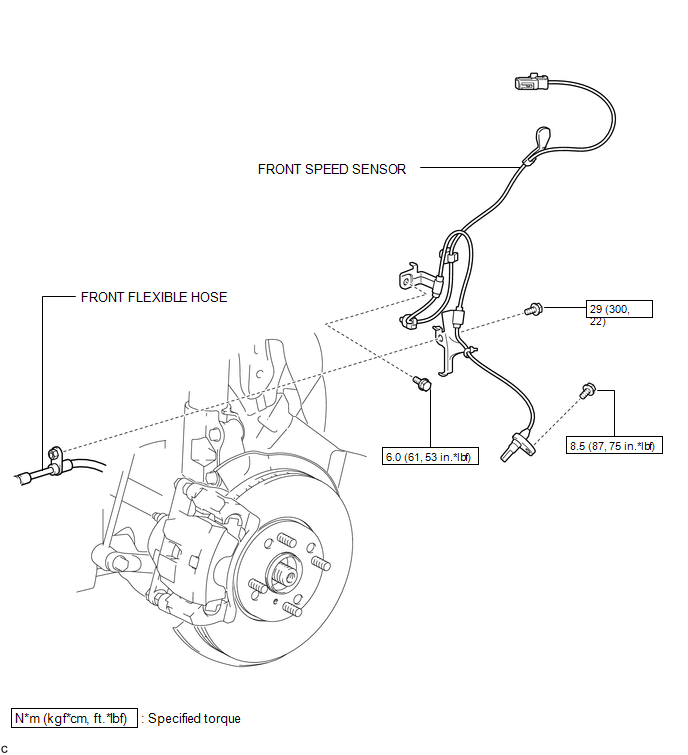

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
