System Diagrams

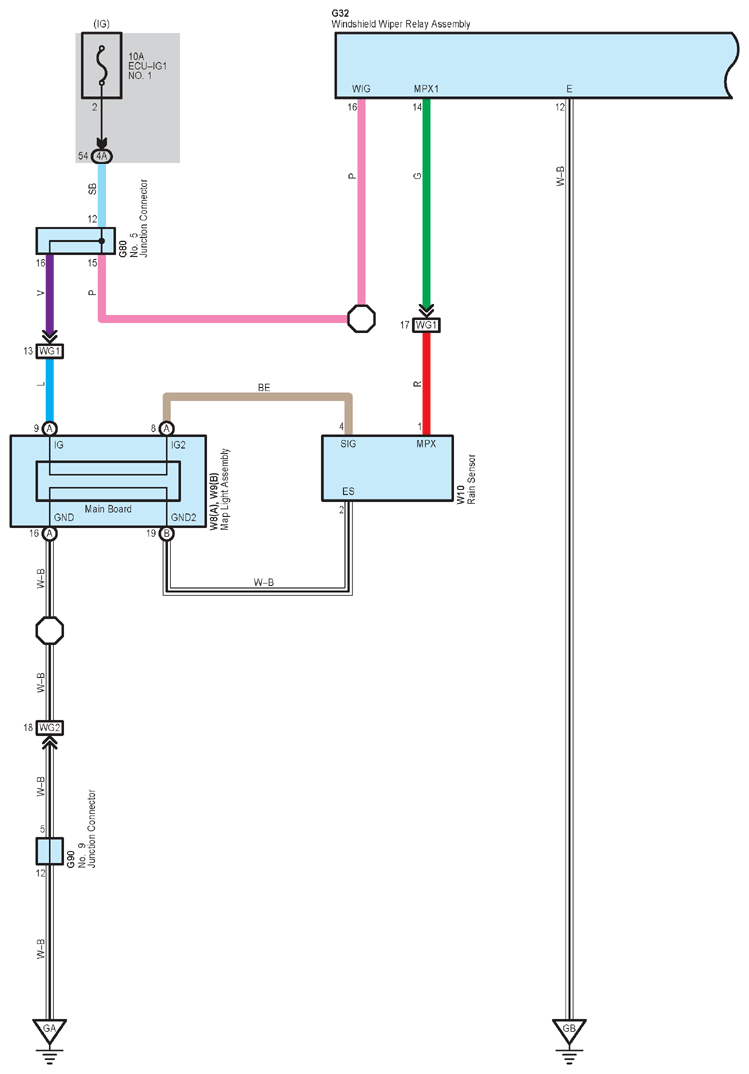

Fig 1: Wiper And Washer (1 Of 4)
G12204251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

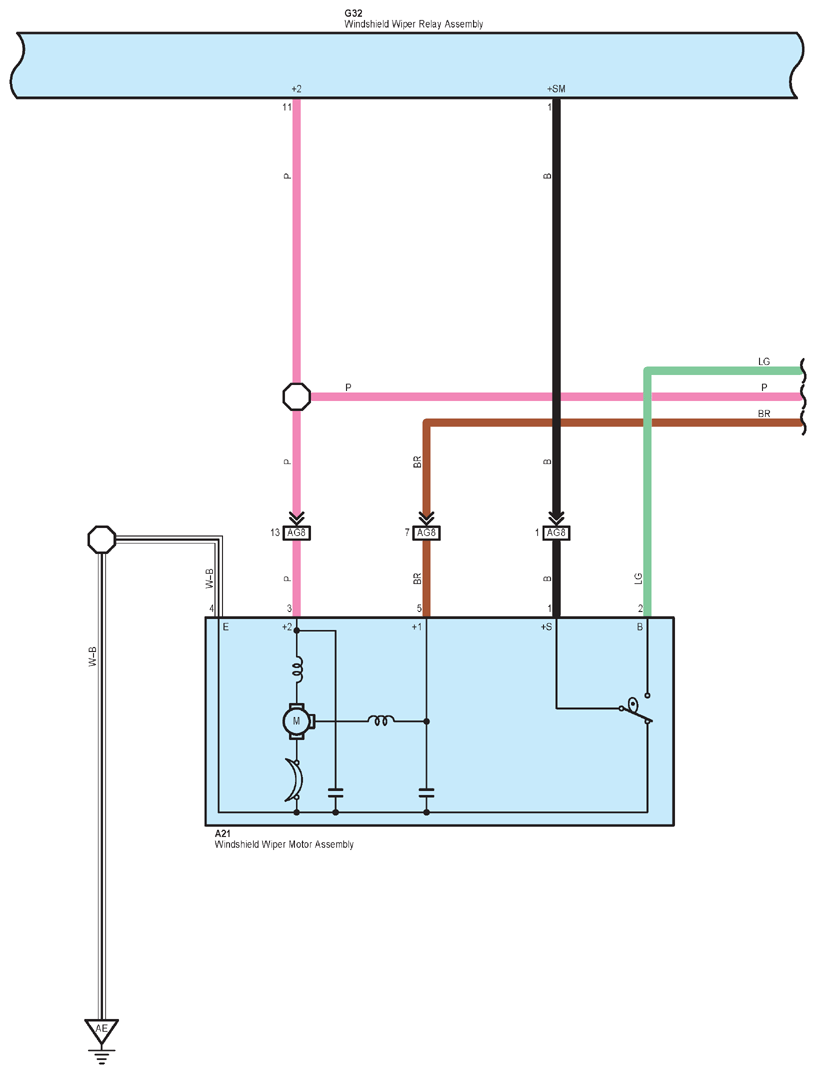

Fig 2: Wiper And Washer (2 Of 4)
G12204252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

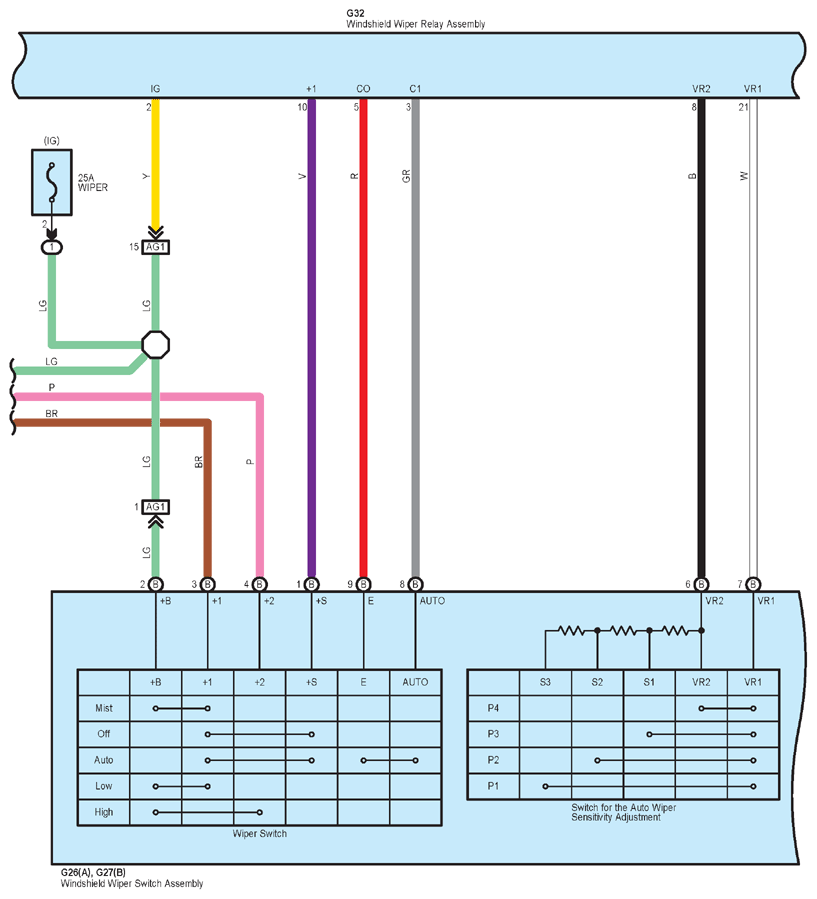

Fig 3: Wiper And Washer (3 Of 4)
G12204253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

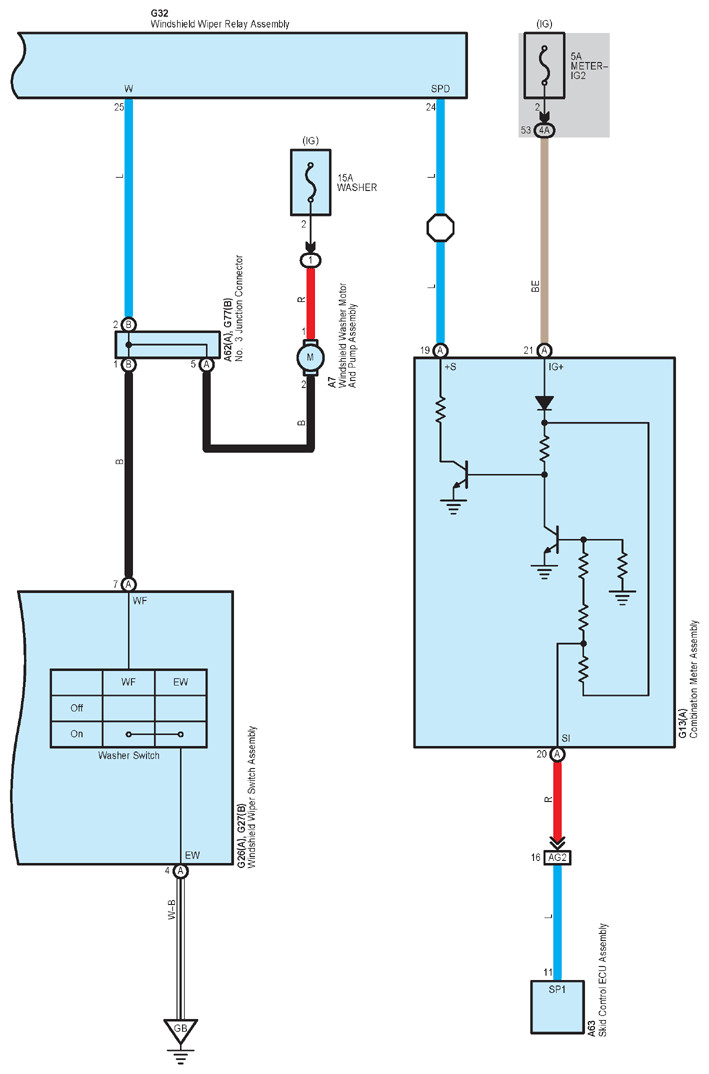

Fig 4: Wiper And Washer (4 Of 4)
G12204254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
