Installation [06/2015 - ]: Procedure

1. Install the 2 grommets of the skid control sensor wire to the rear axle beam assembly.
   NOTE:

   Do not twist the skid control sensor wire harness when installing it.

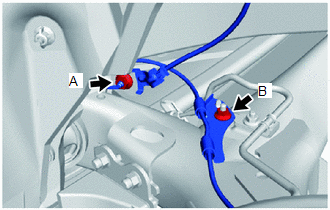

2. Install the 2 sensor clamps to the side member and rear axle beam assembly with the 2 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   For Bolt A

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   For Bolt B

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   Do not twist the skid control sensor wire harness when installing it.

3. Insert the connector and grommet of skid control sensor wire into the inside of the vehicle body through the hole in the wheel house.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Grommet
   *2	Connector
   *3	Band Clamp
   *a	Inside of Vehicle

   NOTE:

   Make sure the band clamp remains on the outside of the vehicle.

4. Hold the grommet and pull it toward the outside of the vehicle. Then fix the grommet in place so that it is not tilted.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Outside of Vehicle

   *b

   30°

   NOTE:

   • When pulling out the grommet, do not grip the skid control sensor wire.
   • Fix the grommet in place within the range shown in the illustration.
5. Connect the connector.

Refer to INSTALLATION [06/2015 - ]

Refer to INSTALLATION [06/2015 - ]

1. Install the rear wheel house liner with the 2 clips.

1. Install the rear axle hub and bearing assembly to the rear axle beam assembly with the 4 bolts.

   Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)

   HINT:

   1. The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor is malfunctioning, replace the rear axle hub and bearing assembly.

Refer to PROCEDURE - Step 7 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 7 [11/2018 - ]

Refer to PROCEDURE - Step 8 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 8 [11/2018 - ]

Refer to PROCEDURE - Step 1 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 1 [11/2018 - ]

Refer to PROCEDURE - Step 2 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 2 [11/2018 - ]

Refer to PROCEDURE - Step 6 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 6 [11/2018 - ]

1. Connect the skid control sensor wire connector to the rear axle hub and bearing assembly.

Refer to ADJUSTMENT [06/2015 - ]

Refer to PROCEDURE - Step 1

Refer to TEST MODE PROCEDURE [06/2015 - ]
