86 Base, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Seat Belt Warning
>>
System Diagrams
System Diagrams

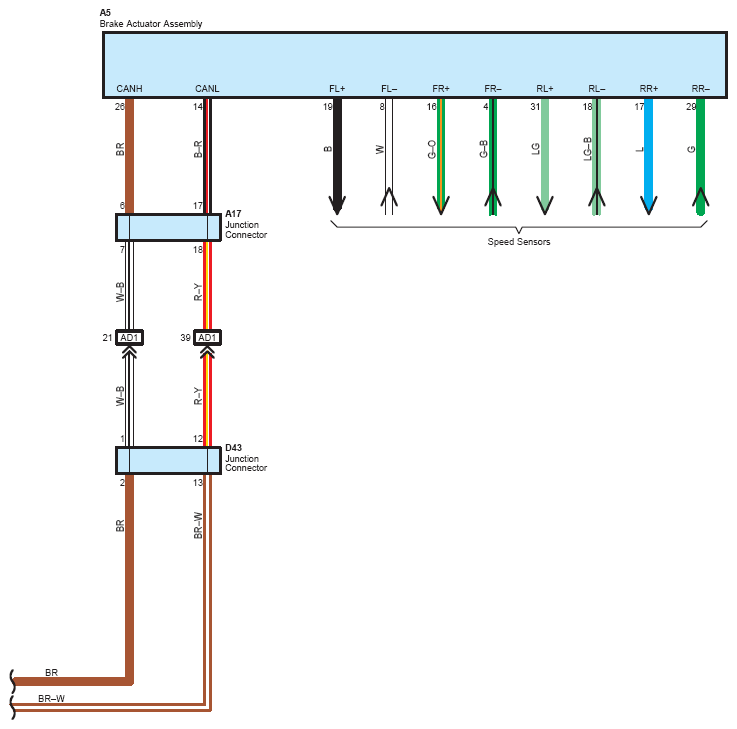

Fig 1: Seat Belt Warning (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

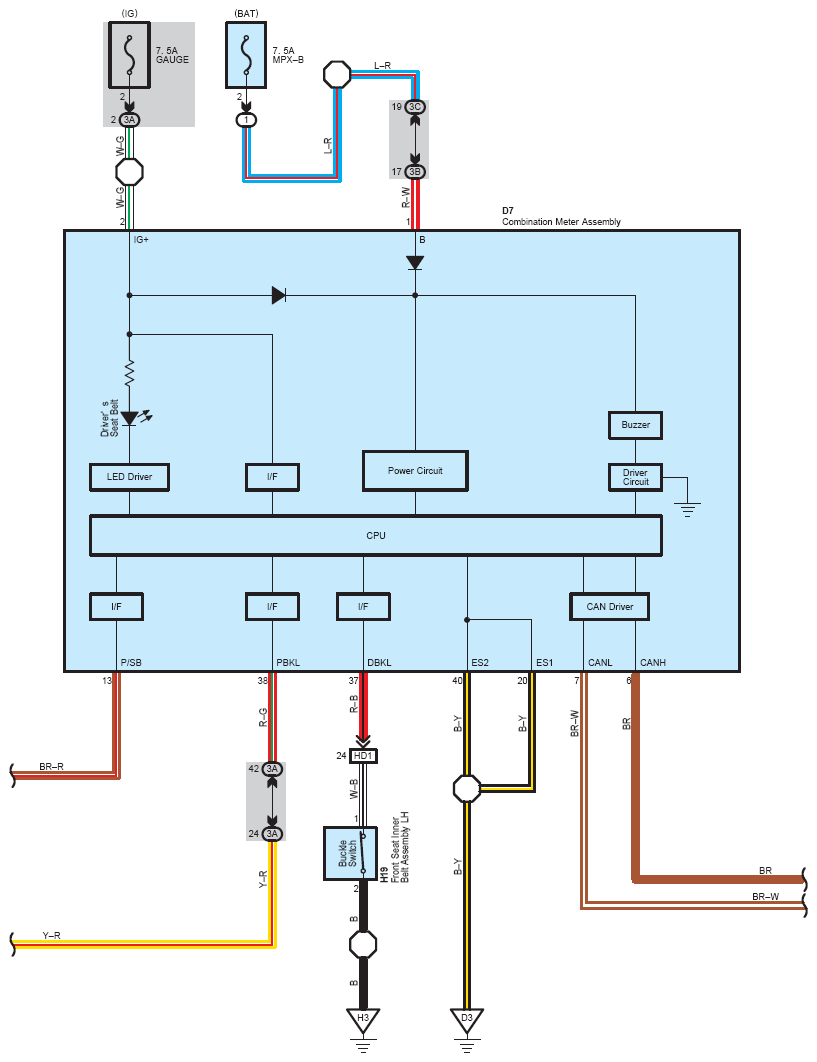

Fig 2: Seat Belt Warning (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

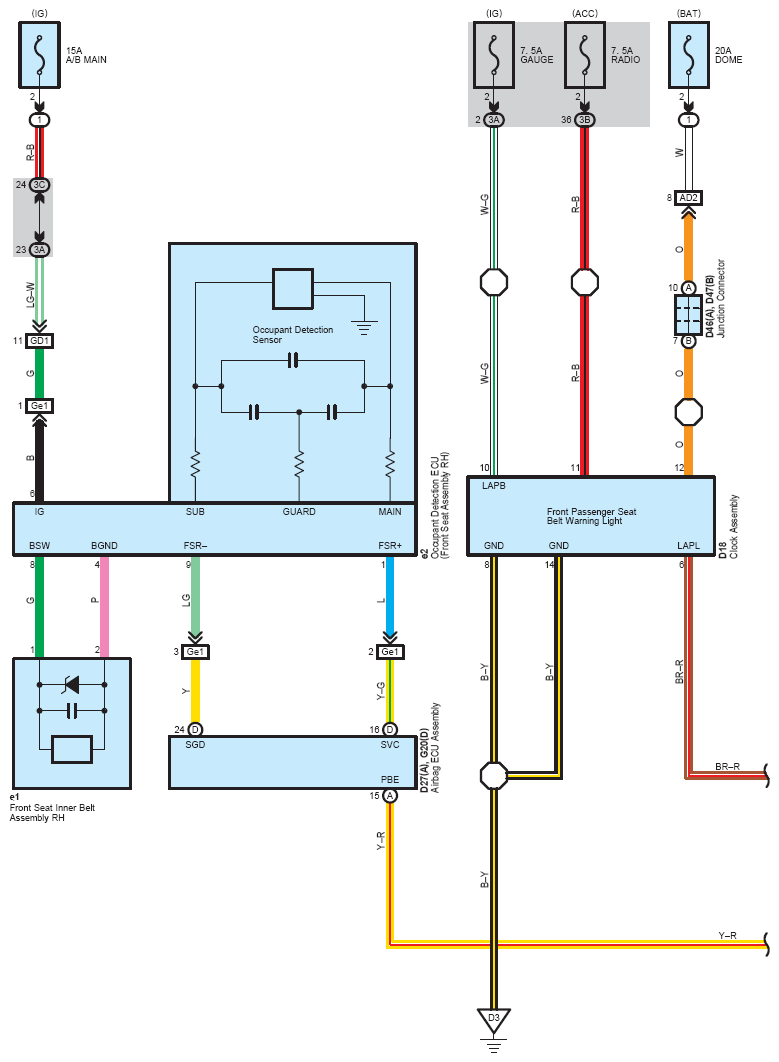

Fig 3: Seat Belt Warning (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
