Brake Pedal Stroke Sensor: Components: Illustration

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components Location (1 Of 2)
GTY330027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

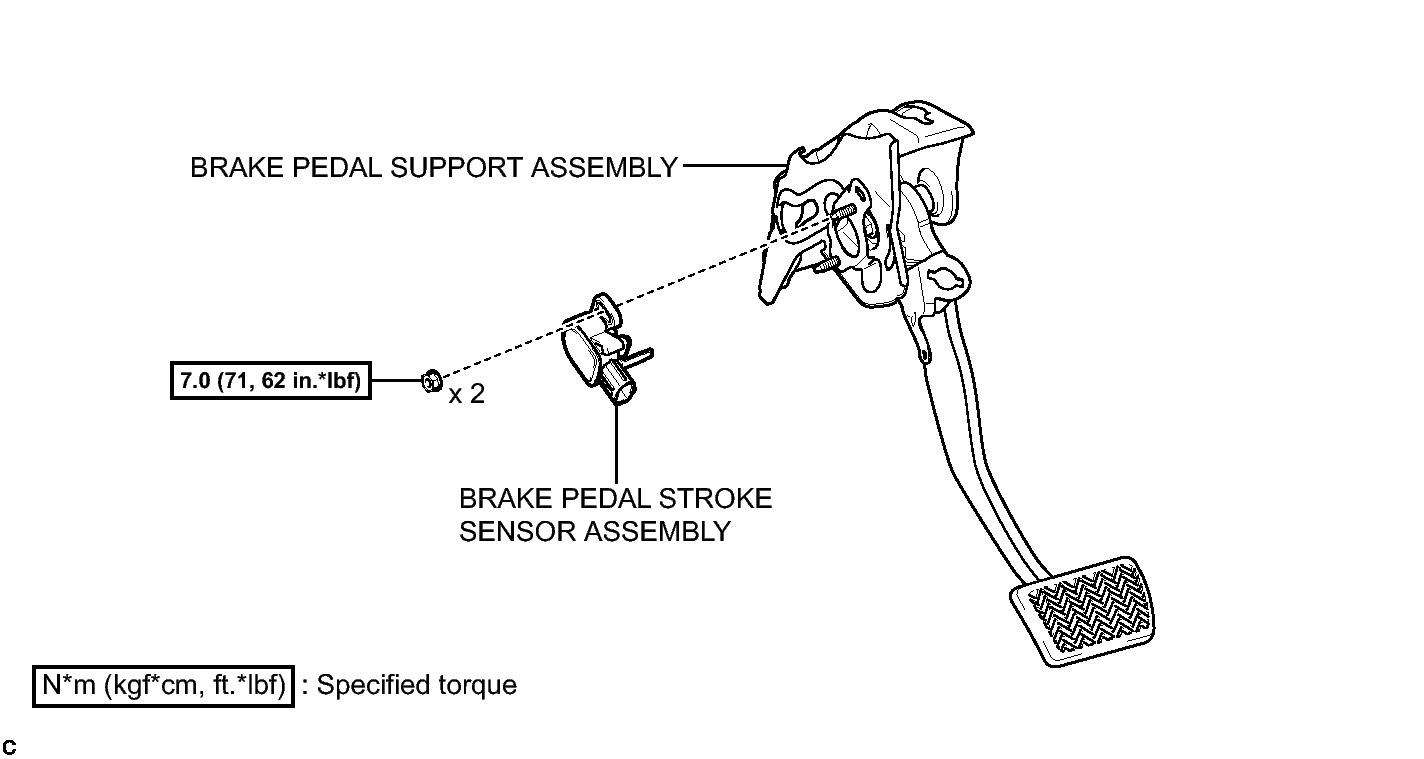

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components Location With Torque Specifications (2 Of 2)
GTY332361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
