Oil Pump: Components: Illustration

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (1 Of 7)
GTY375566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (2 Of 7)
GTY363696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

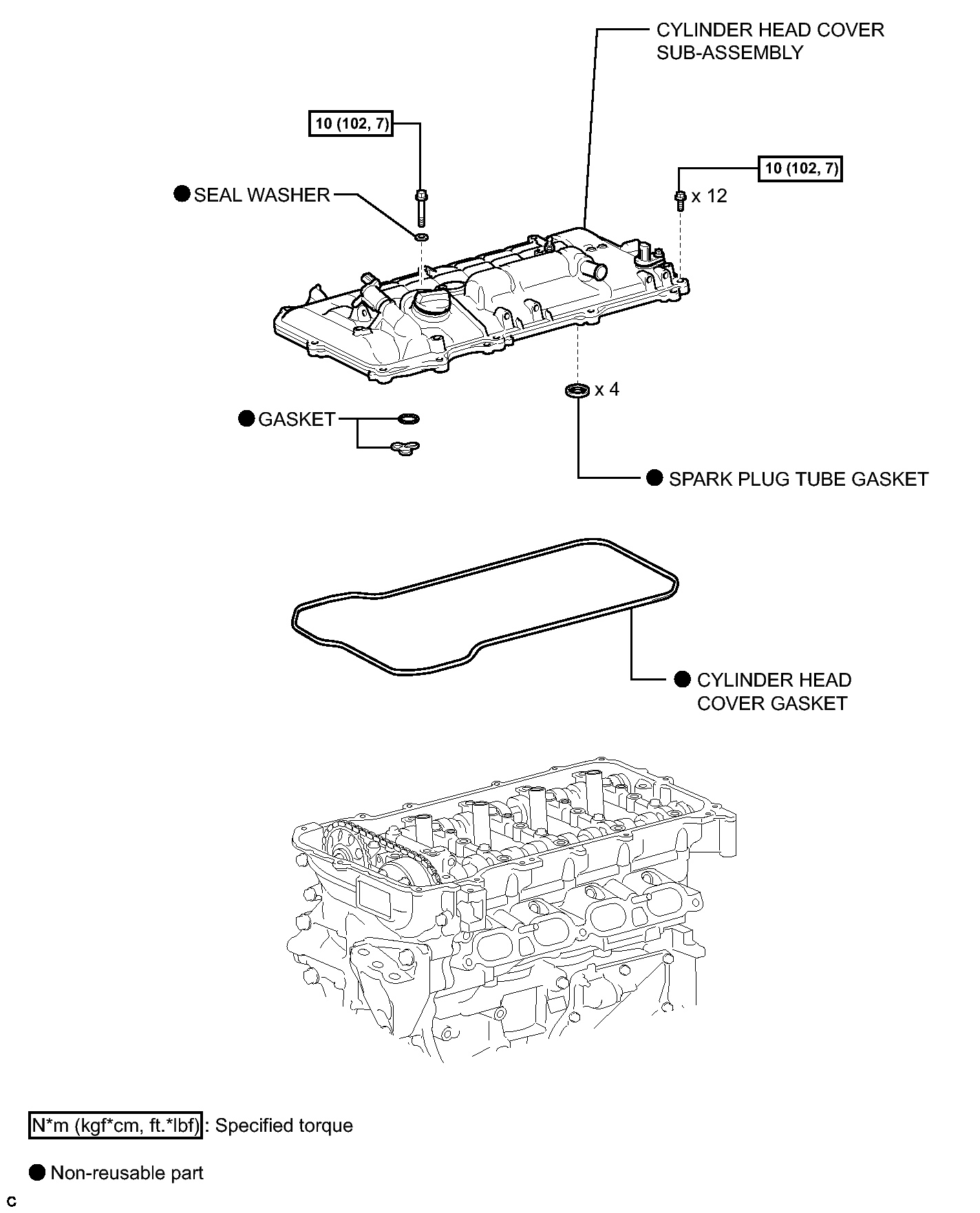

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (3 Of 7)
GTY235314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

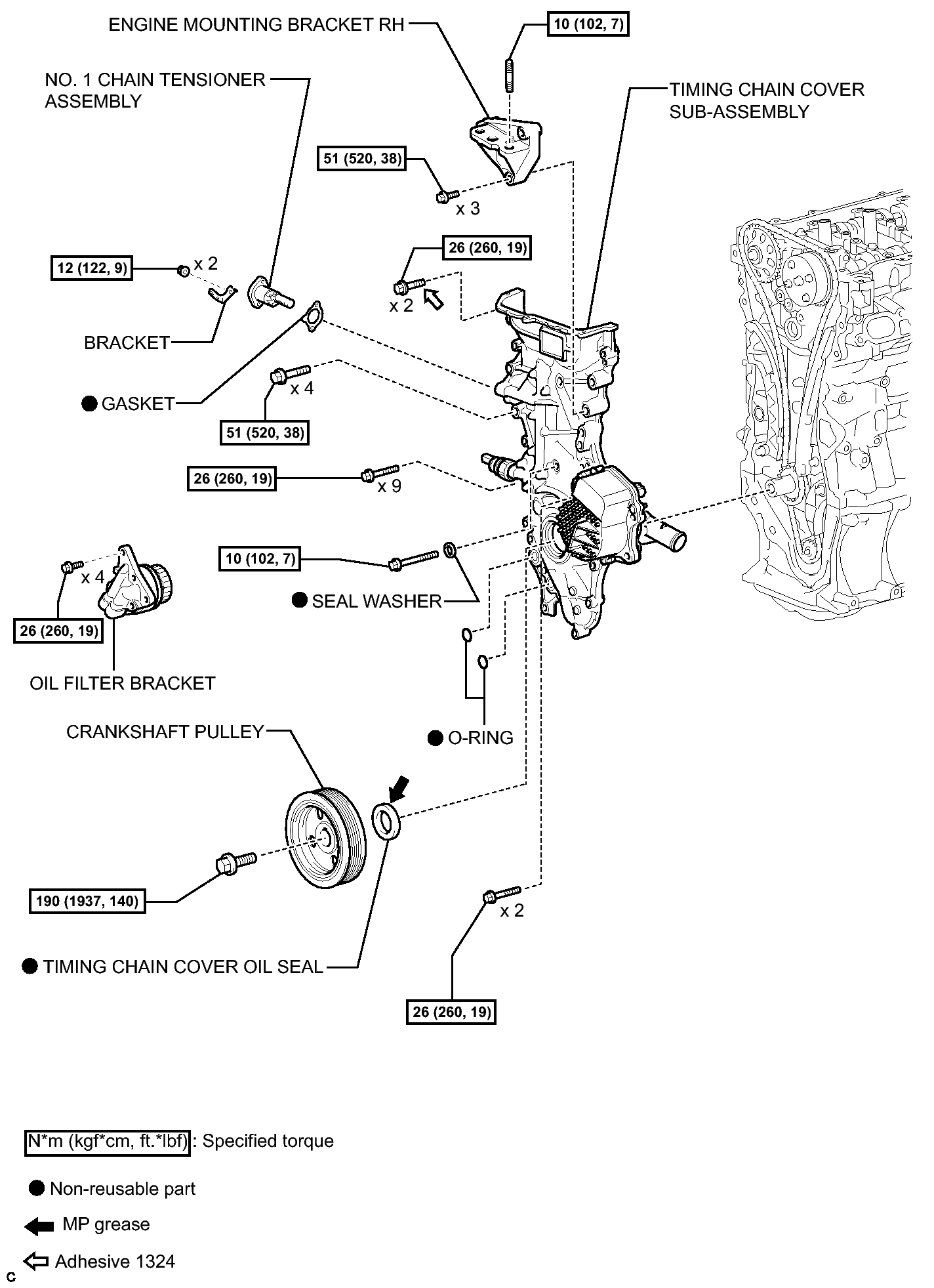

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (4 Of 7)
GTY217939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

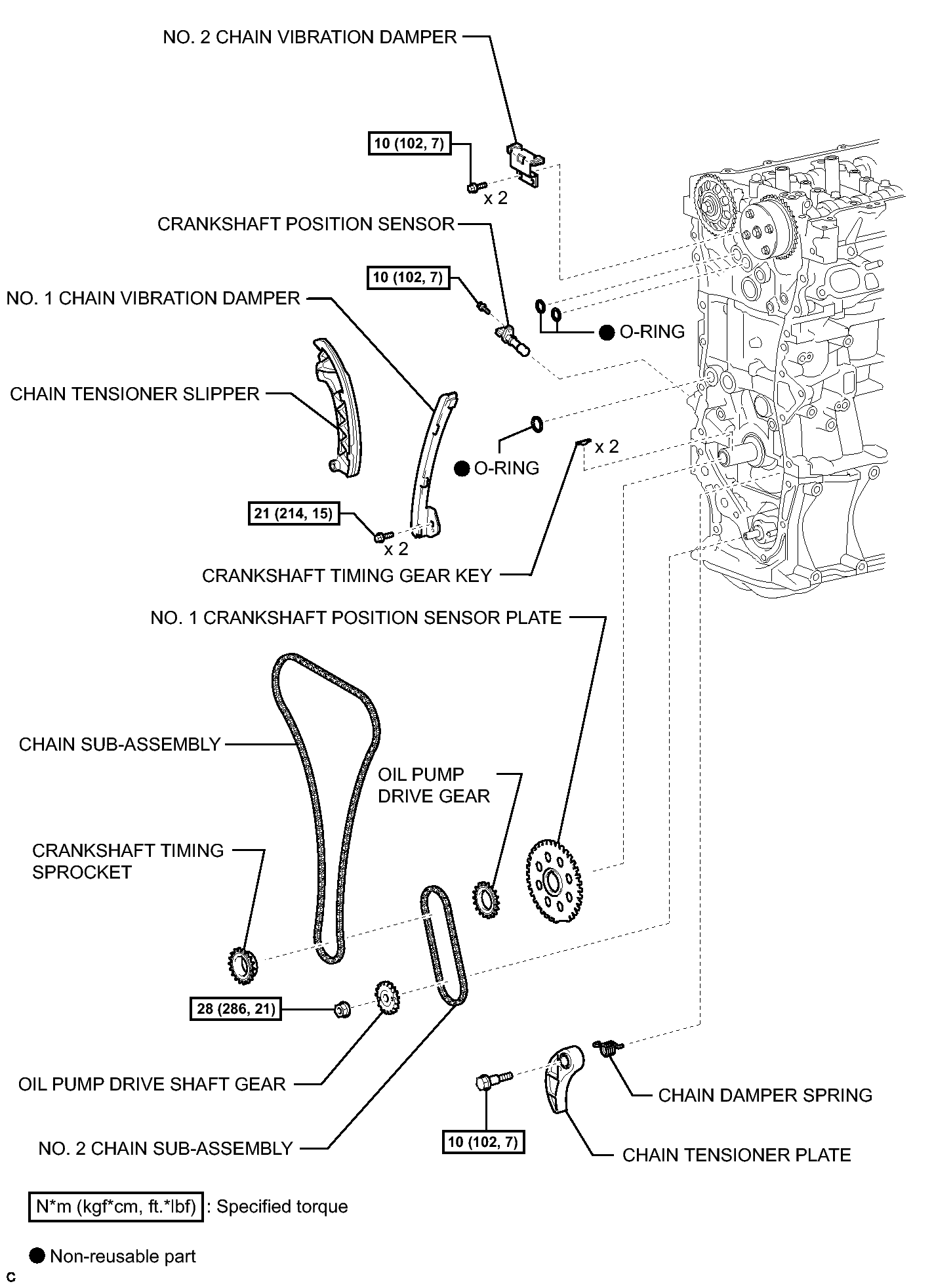

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (5 Of 7)
GTY235953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

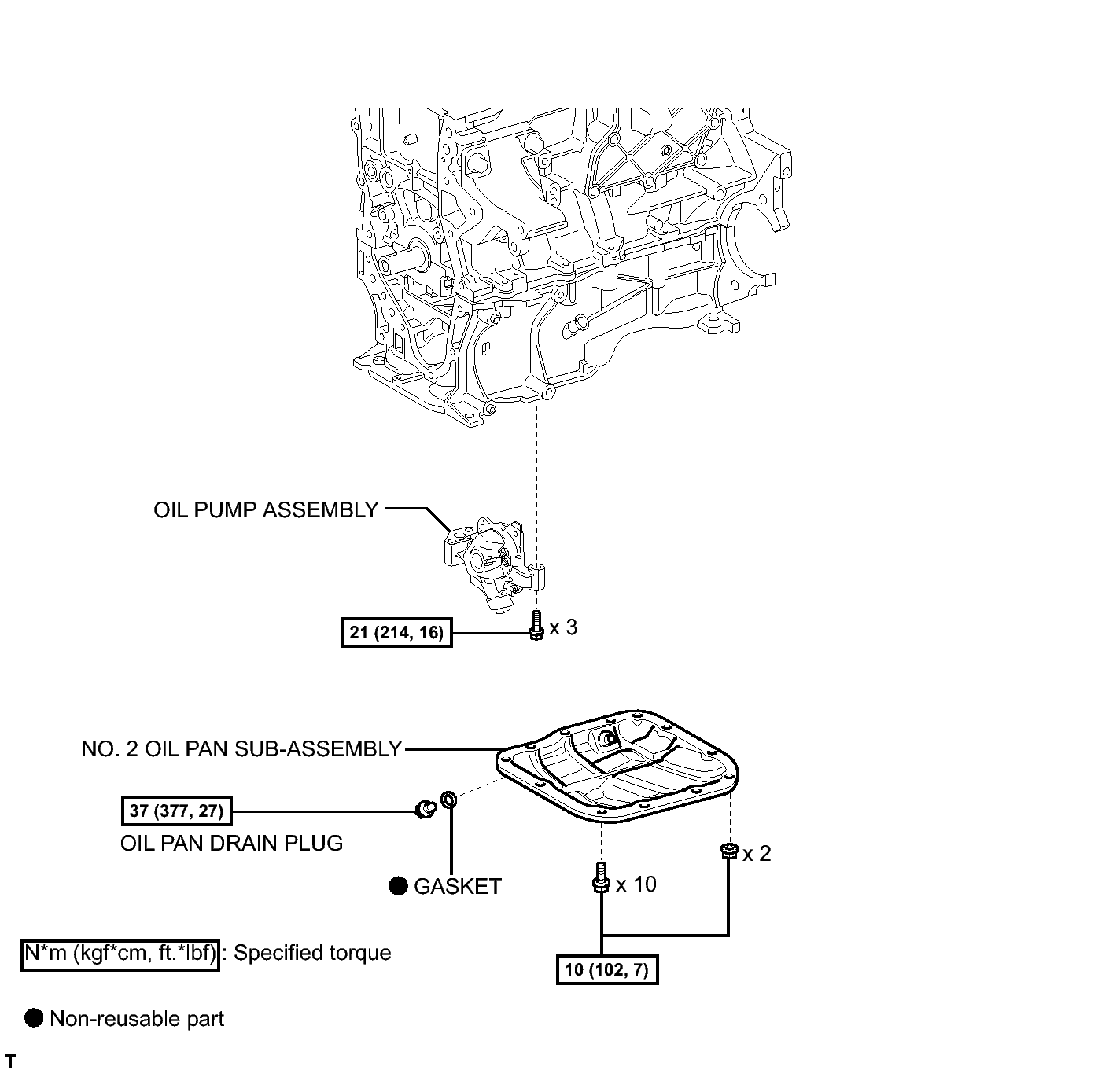

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (6 Of 7)
GTY230377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

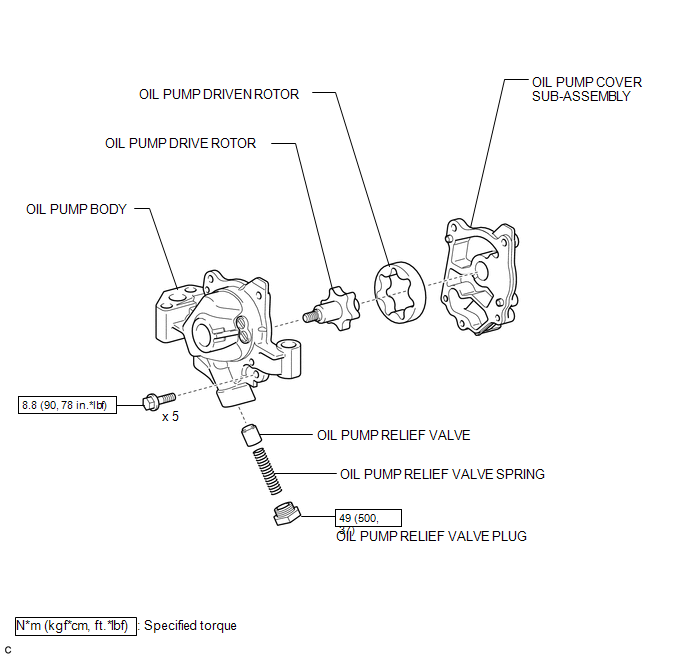

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (7 Of 7)
GTY227824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
