Fuel Pressure Regulator: Removal: Removal

REMOVE FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
1. Remove the fuel suction tube assembly with pump and gauge. Refer to REMOVAL .
REMOVE FUEL SENDER GAUGE ASSEMBLY See step 2
REMOVE FUEL PUMP See step 2
REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
1. Using a screwdriver with its tip wrapped in protective tape, remove the fuel pressure regulator assembly.

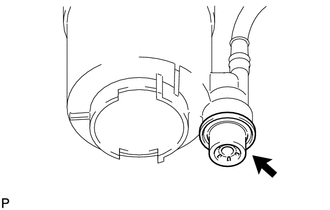

  Fig 1: Locating Fuel Pressure Regulator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Slowly pull out the fuel pressure regulator assembly because the O-ring is firmly installed between the regulator and the fuel filter.
2. Remove the 2 O-rings from the pressure regulator assembly.

  Fig 2: Identifying Pressure Regulator Assembly & O-Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 O-ring
