Oil Pump: Disassembly: Disassembly

  1. REMOVE OIL PUMP RELIEF VALVE
    1. Using a 27 mm socket wrench, remove the plug.

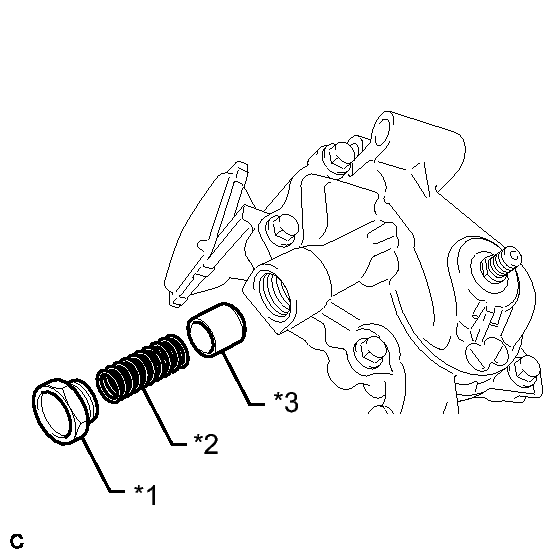

      Fig 1: Identifying Pump Relief Valve Components
      GTY227150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Plug
      *2 Spring
      *3 Valve
    2. Remove the valve spring and relief valve.
  2. REMOVE OIL PUMP COVER SUB-ASSEMBLY
    1. Remove the 5 bolts and oil pump cover.

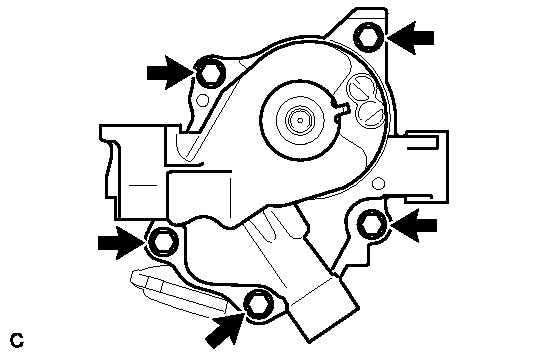

      Fig 2: View Of Oil Pump Cover Bolts
      GTY221471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pump drive and driven rotors from the oil pump.
