Front Brake: Reassembly: Reassembly

WARNING: This page is about a different car, the 2013 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

TEMPORARILY TIGHTEN FRONT DISC BRAKE BLEEDER PLUG
INSTALL FRONT DISC BRAKE BLEEDER PLUG CAP
INSTALL PISTON SEAL

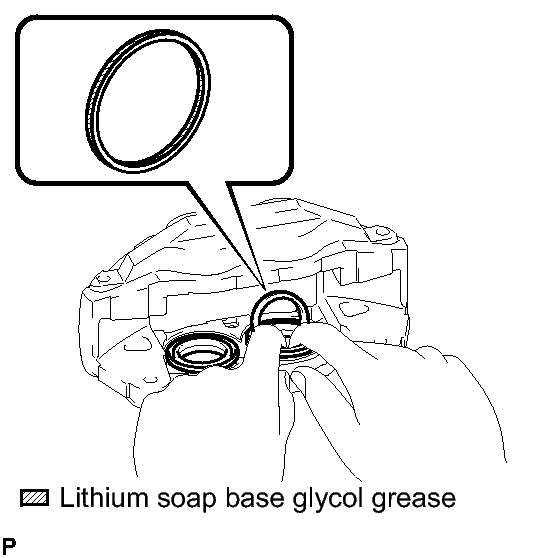

Fig 1: Applying Lithium Soap Base Glycol Grease To Piston Seals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Apply lithium soap base glycol grease to 4 new piston seals.
2. Install the 4 piston seals onto the disc brake cylinder.
  NOTE:
  Securely install the piston seal into the groove of the disc brake cylinder.
INSTALL FRONT DISC BRAKE PISTON

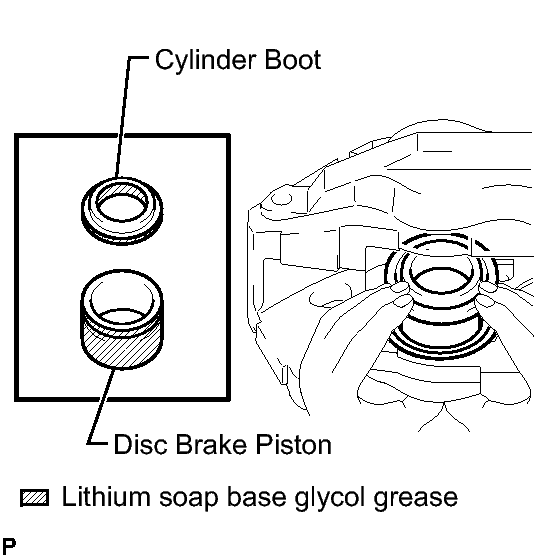

Fig 2: Applying Lithium Soap Base Glycol Grease To Disc Brake Pistons And Cylinder Boots
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Apply lithium soap base glycol grease to the 4 disc brake pistons and 4 new cylinder boots.
2. Install the 4 cylinder boots to the 4 disc brake pistons.
3. Install the 4 disc brake pistons onto the disc brake cylinder.
  NOTE:
  Do not forcibly install the piston into the disc brake cylinder.
INSTALL CYLINDER BOOT

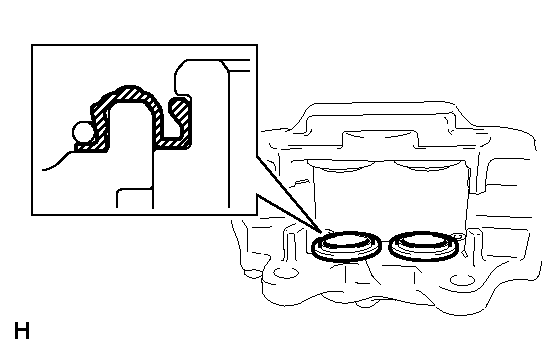

Fig 3: Identifying Cylinder Boots
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the 4 cylinder boots onto the disc brake cylinder.
  NOTE:
  Securely install the cylinder boot into the grooves of the disc brake cylinder and piston.
2. Using a screwdriver, install 4 new set rings.
  NOTE:
  Do not damage the boot.
