Turn Signal and Parking Lamp: Notes

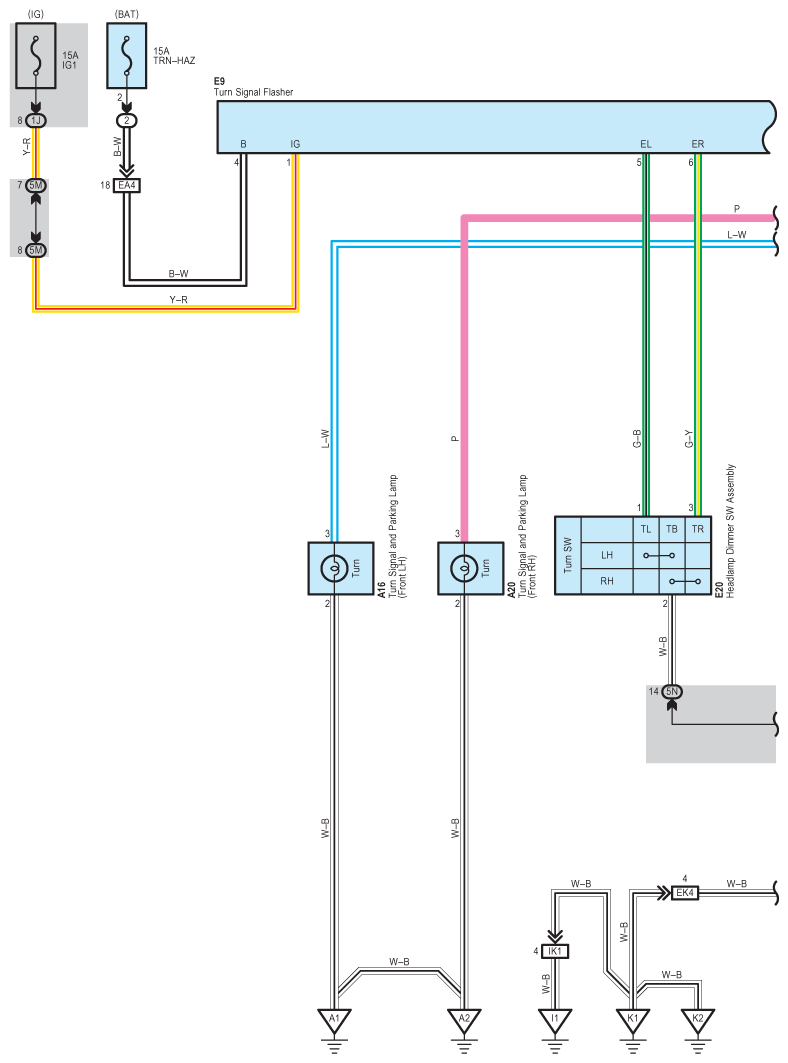

Fig 1: Turn Signal And Parking Lamp Wiring Diagram (1 Of 2)
G09097007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

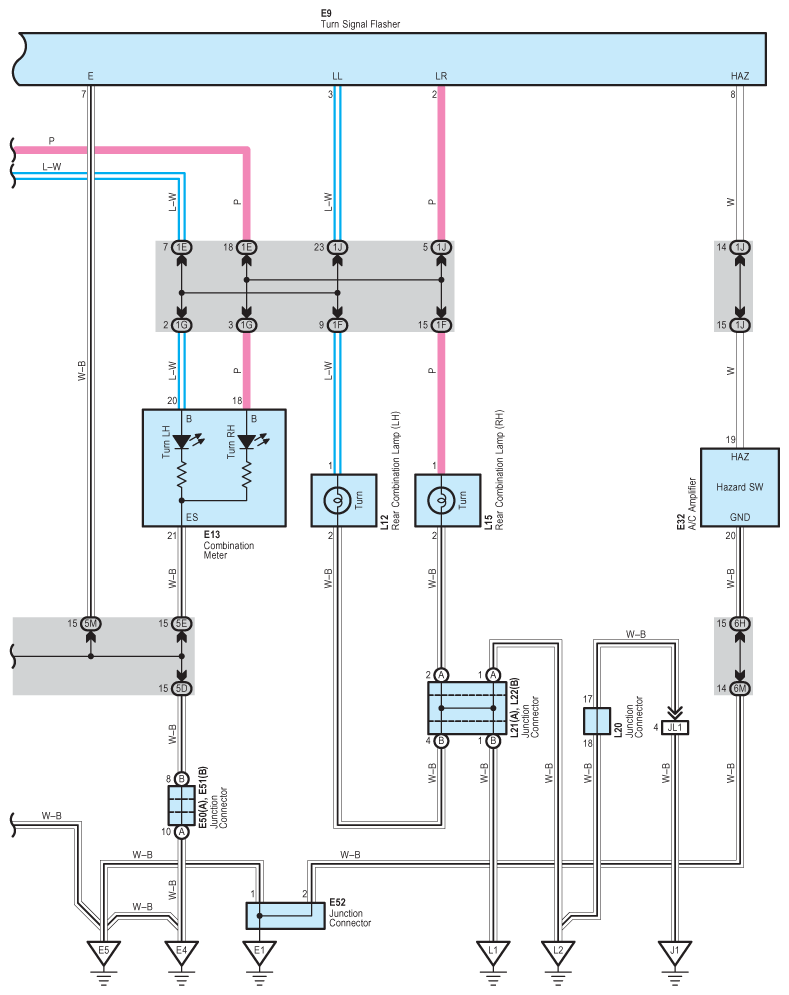

Fig 2: Turn Signal And Parking Lamp Wiring Diagram (2 Of 2)
G09097008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
