Parking Assist (Intuitive Parking Assist): Notes

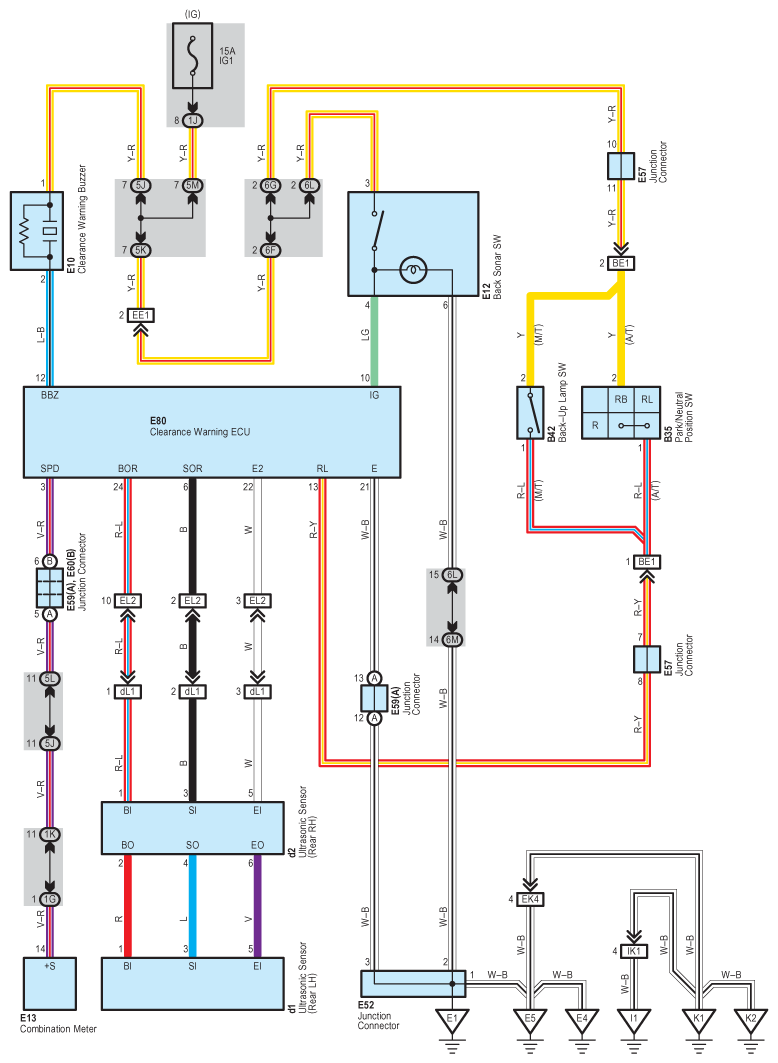

Fig 1: Intuitive Parking Assist Wiring Diagram

G09097097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
