Ground Point: Notes

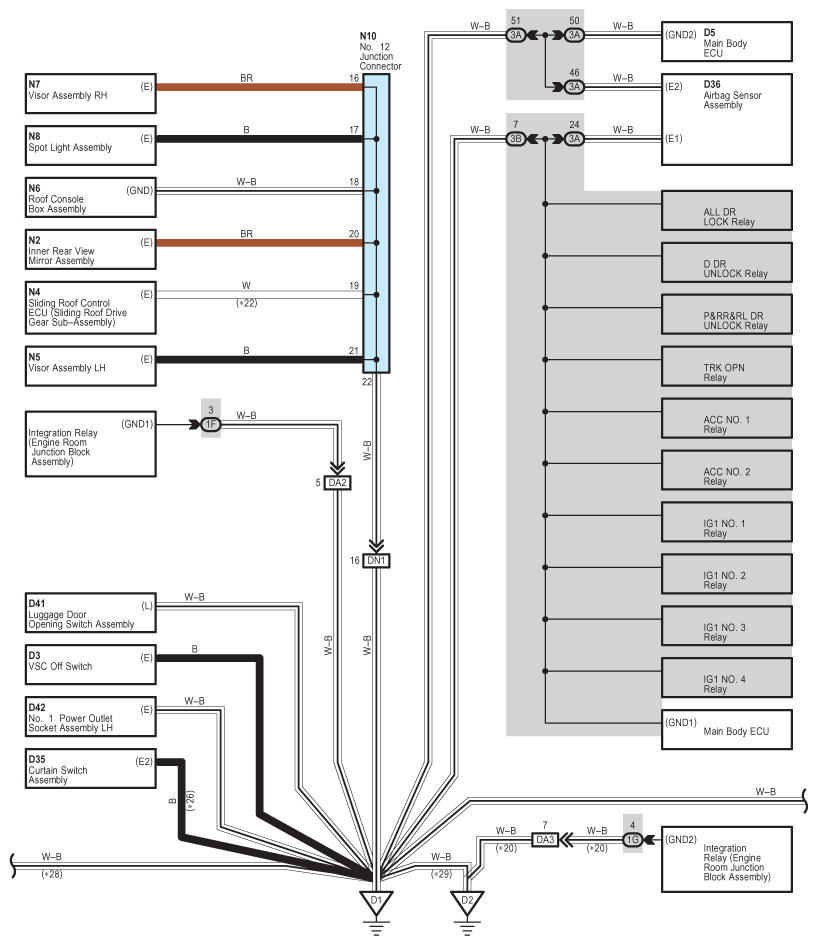

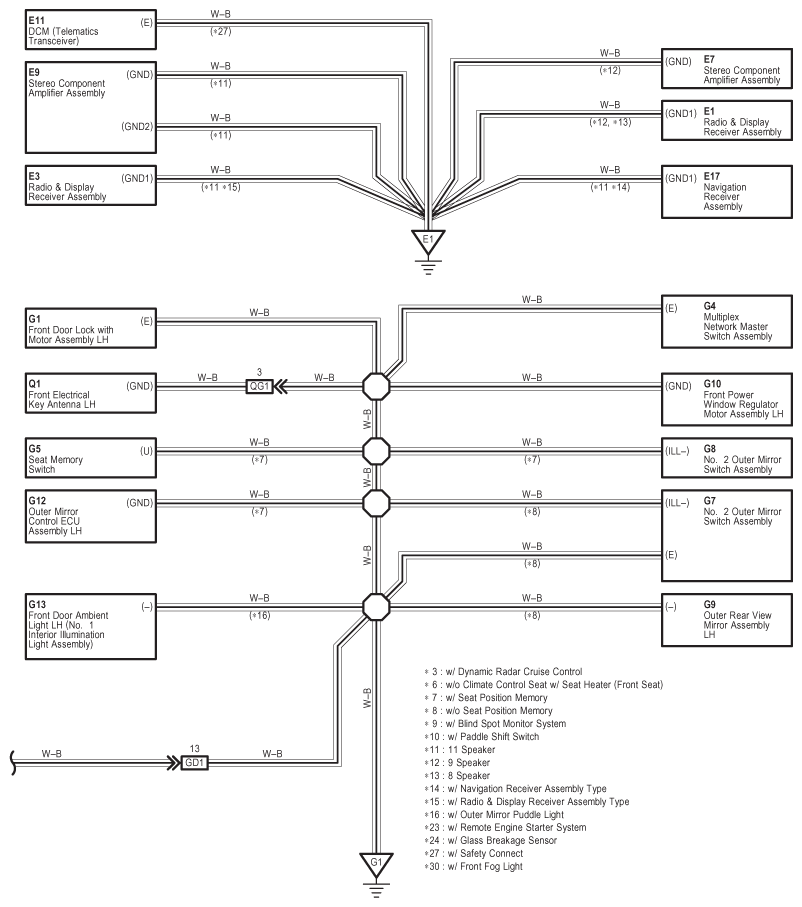

Fig 1: Ground Point System Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

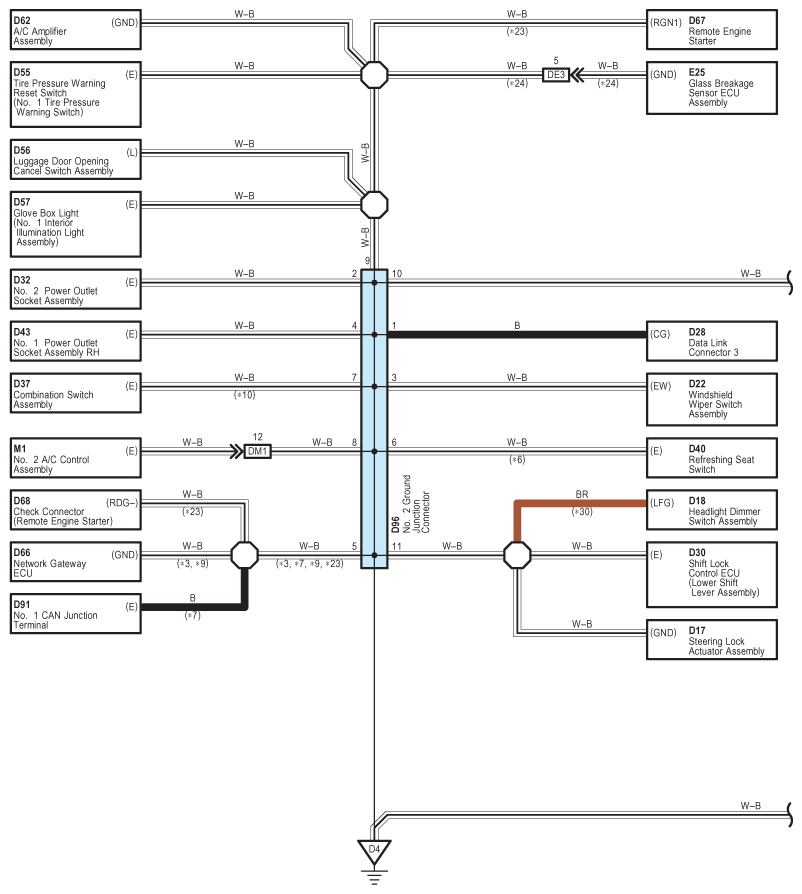

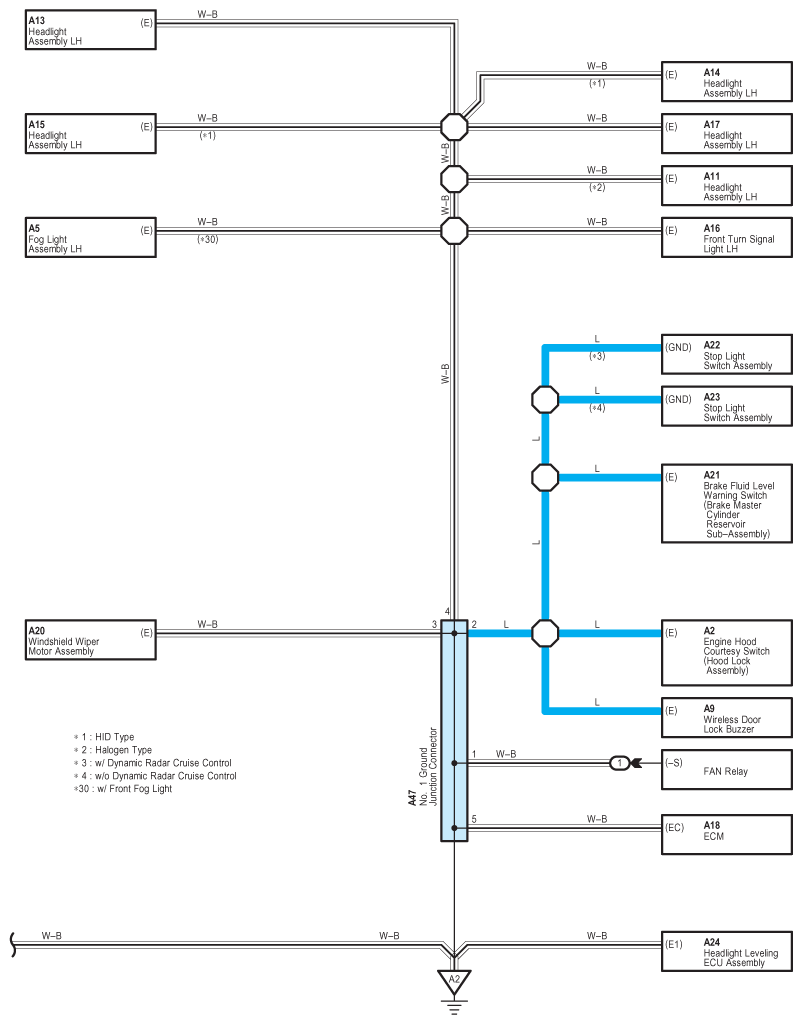

Fig 2: Ground Point System Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

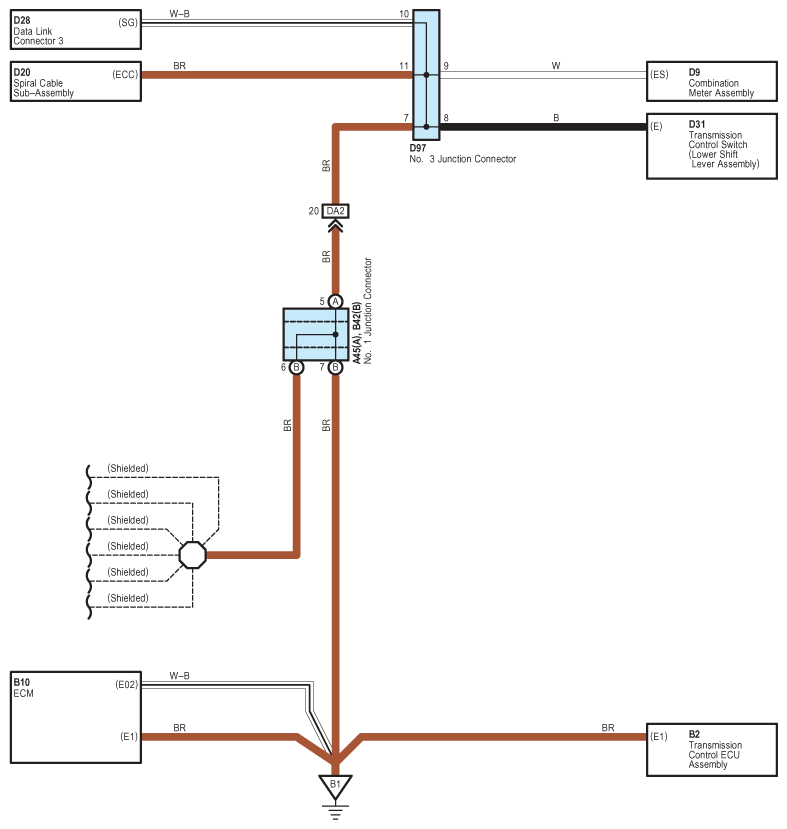

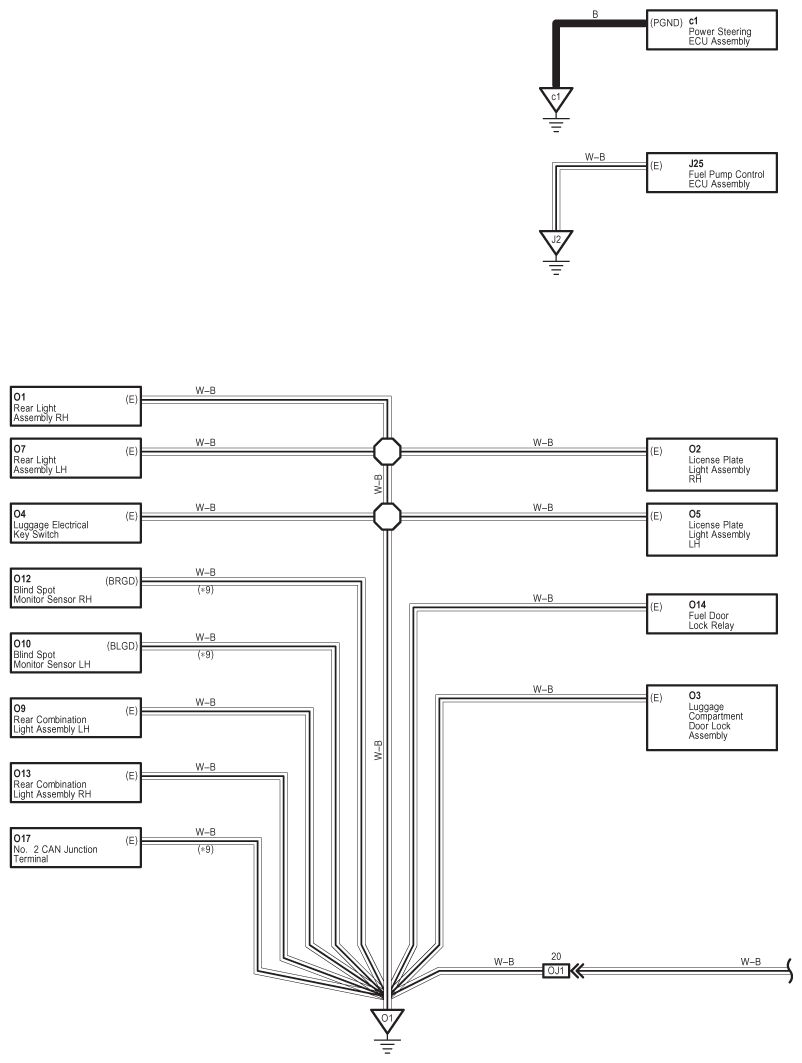

Fig 3: Ground Point System Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

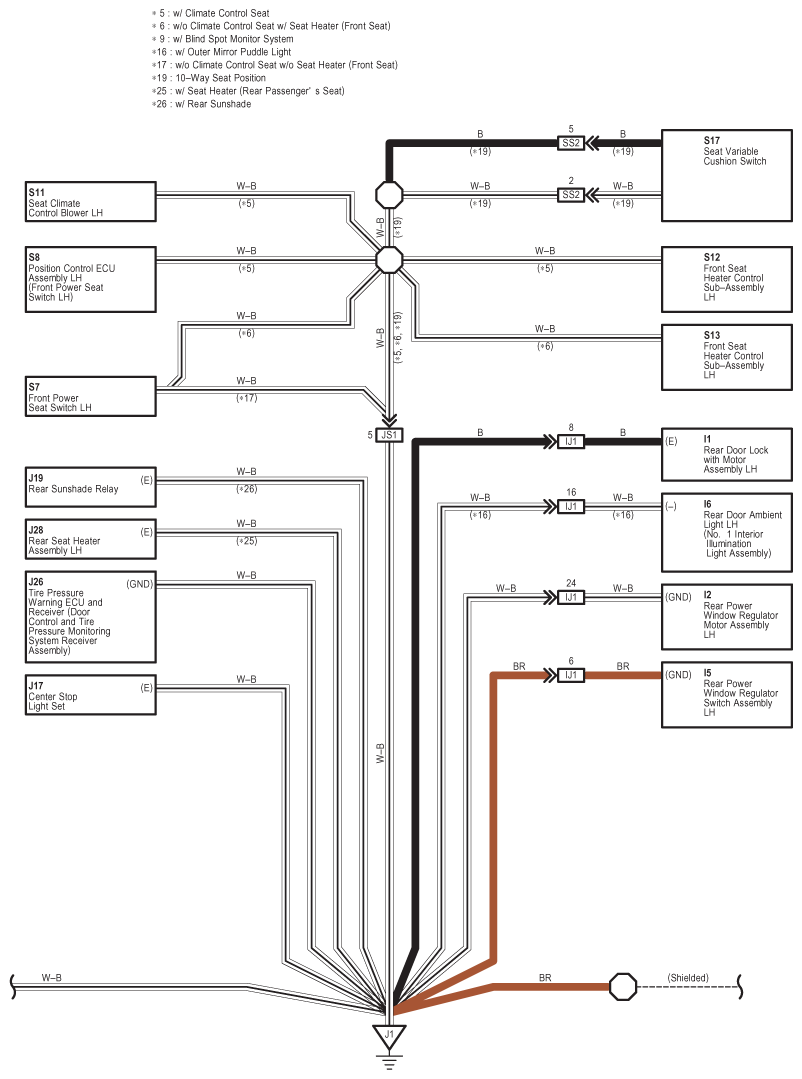

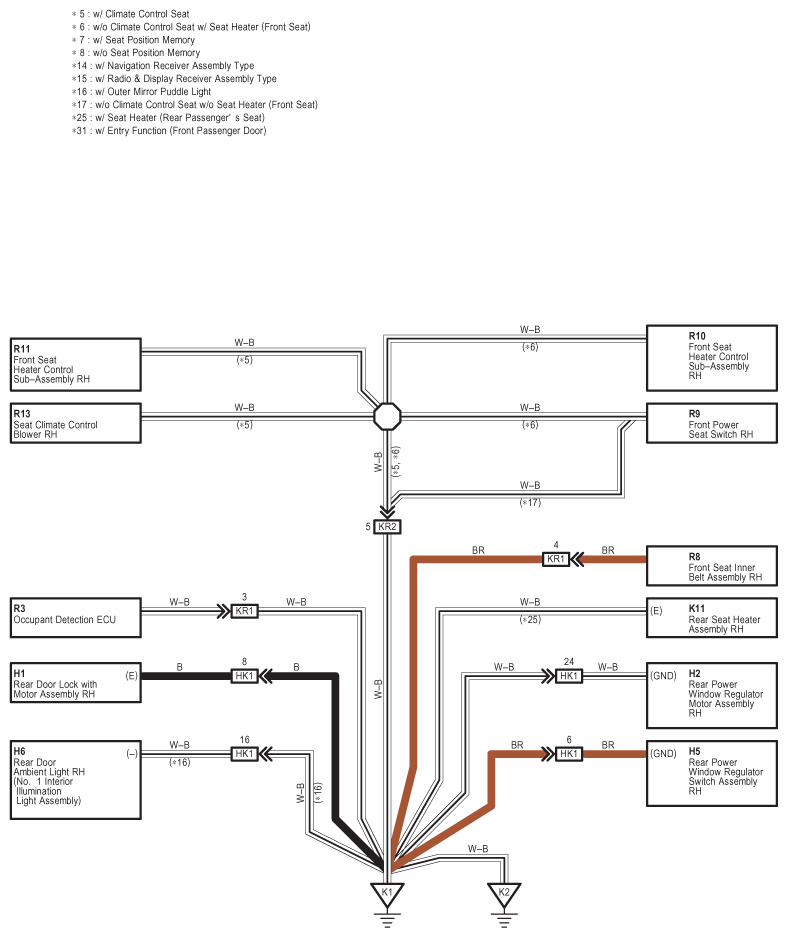

Fig 4: Ground Point System Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

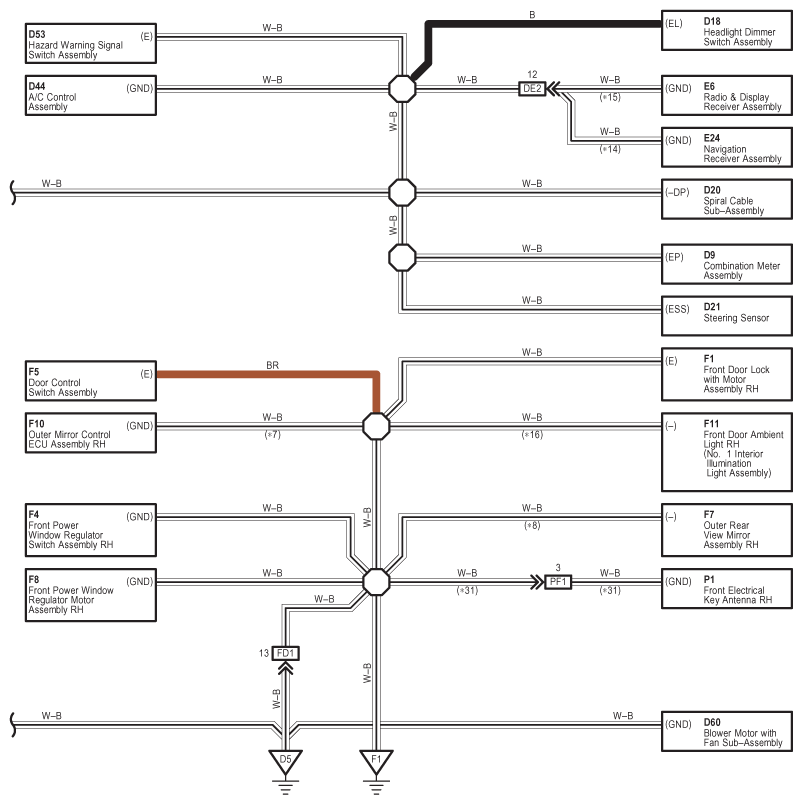

Fig 5: Ground Point System Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

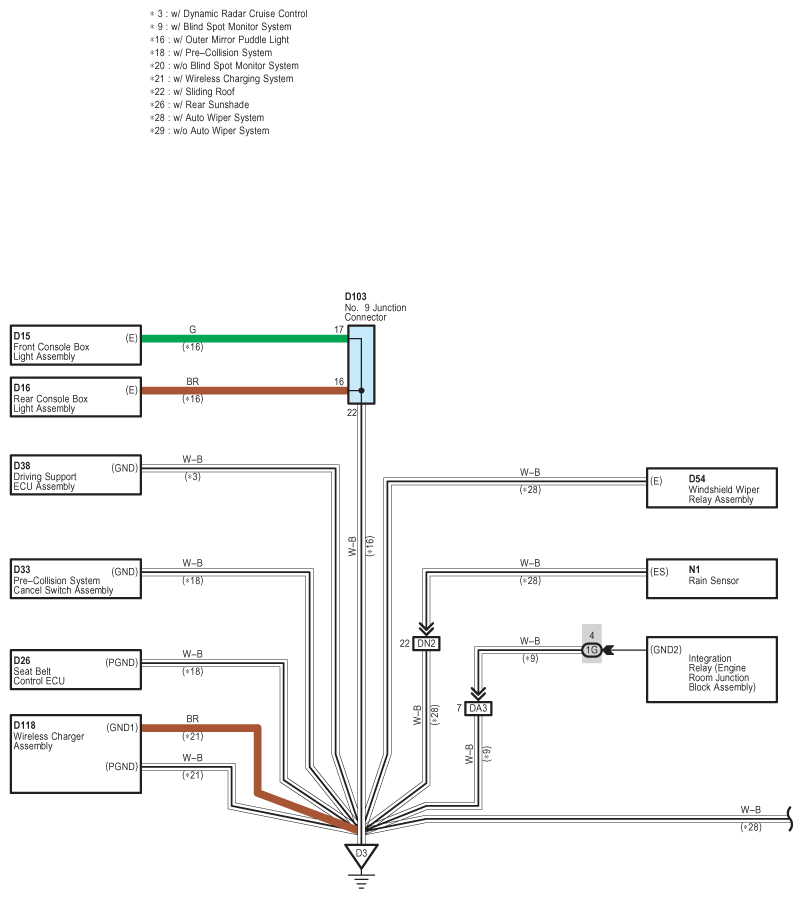

Fig 6: Ground Point System Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

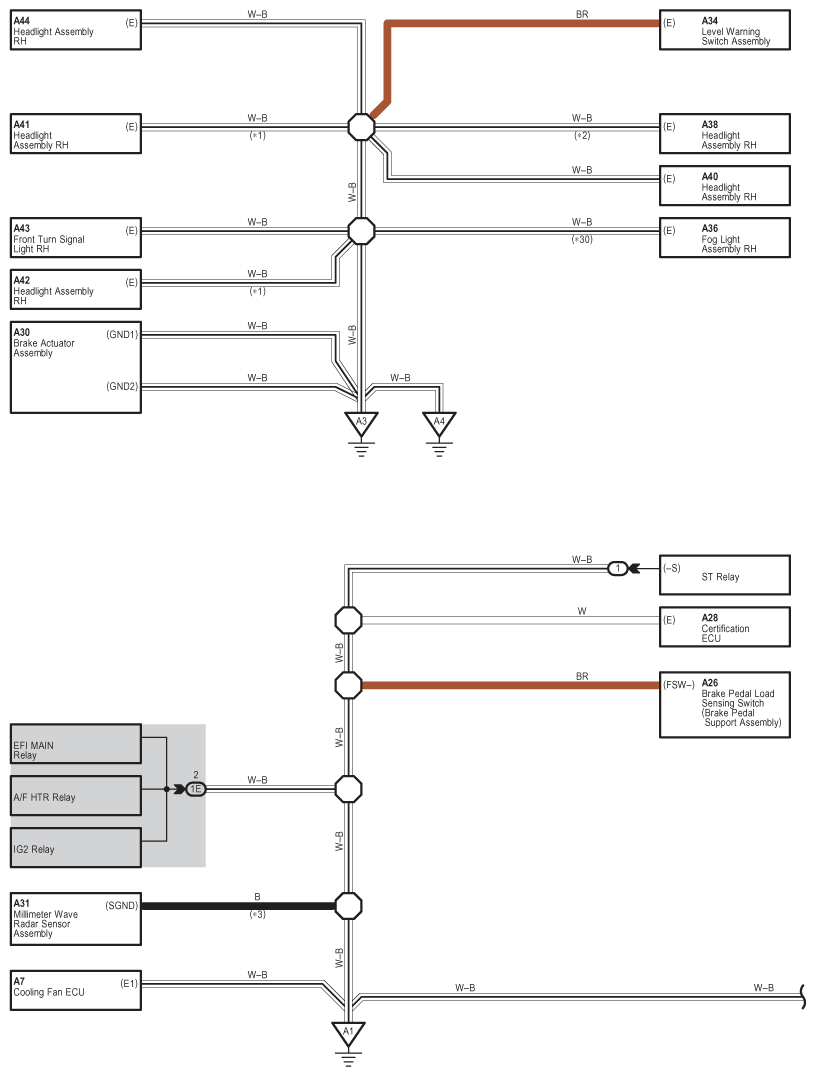

Fig 7: Ground Point System Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

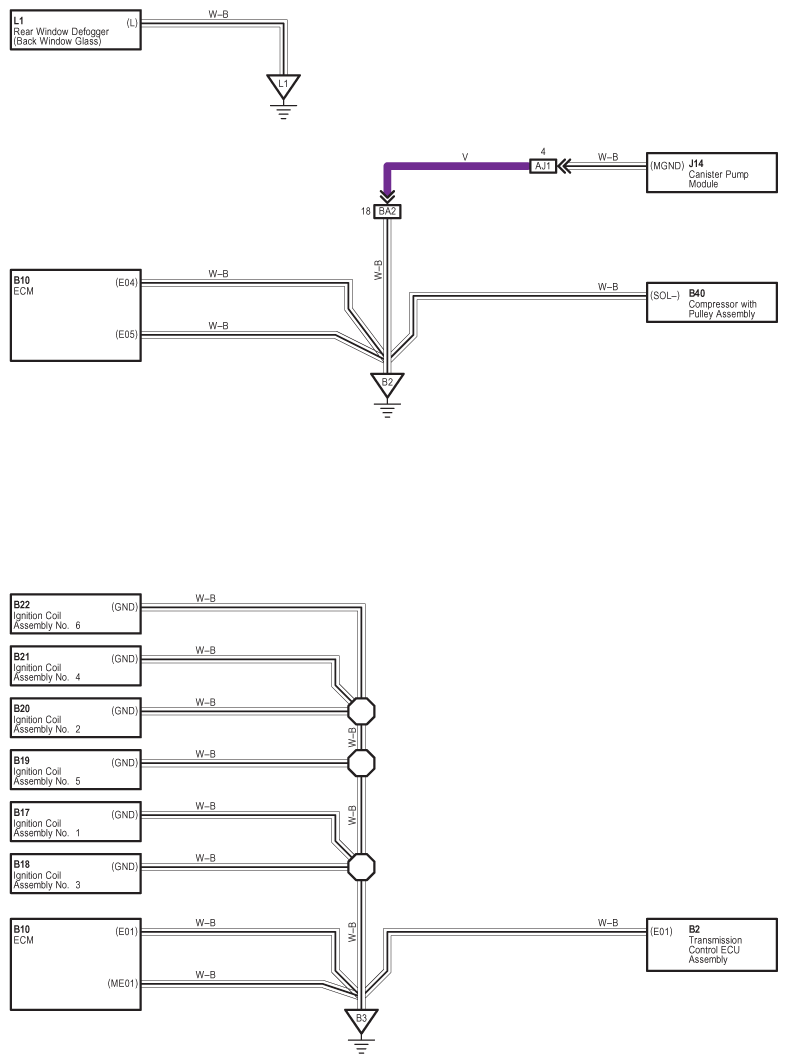

Fig 8: Ground Point System Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Ground Point System Wiring Diagram (9 Of 12)

Fig 10: Ground Point System Wiring Diagram (10 Of 12)

Fig 11: Ground Point System Wiring Diagram (11 Of 12)

Fig 12: Ground Point System Wiring Diagram (12 Of 12)
