Rear Seat Inner Belt Assembly: Installation: Installation

INSTALL REAR SEAT CENTER INNER BELT ASSEMBLY
1. Install the rear seat center inner belt assembly with the bolt.

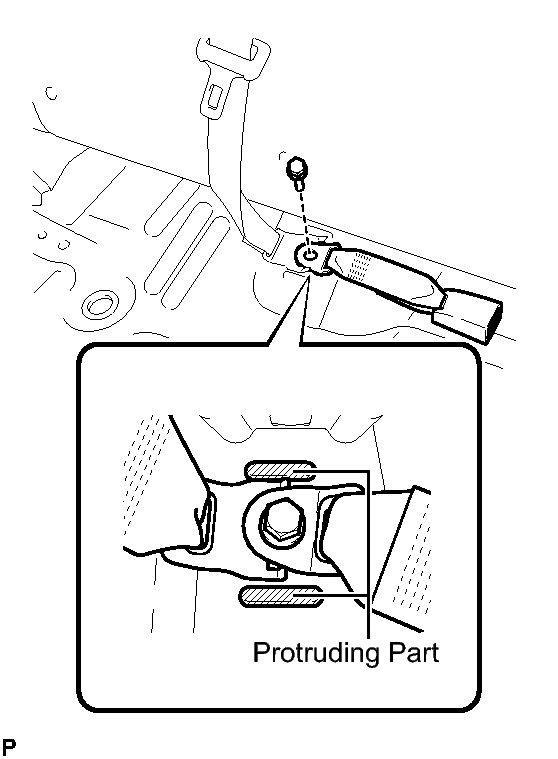

  Fig 1: Identifying Rear Seat Center Inner Belt Assembly And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 41 N*m (420 kgf*cm, 30 ft.*lbf)

  NOTE:
  Do not allow the anchor part of the rear seat center inner belt assembly to overlap the protruding part of the floor panel.
INSTALL REAR SEAT INNER BELT ASSEMBLY
1. Install the rear seat inner belt assembly with the bolt.

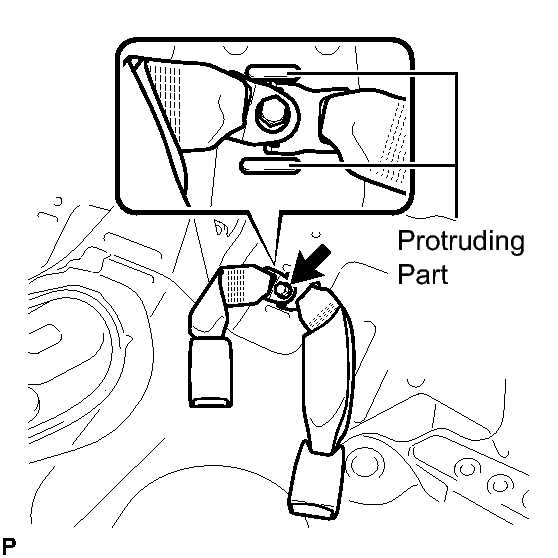

  Fig 2: Identifying Rear Seat Inner Belt Assembly And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 41 N*m (420 kgf*cm, 30 ft.*lbf)

  NOTE:
  Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding part of the floor panel.
INSTALL REAR SEAT CUSHION ASSEMBLY . Refer to INSTALLATION - Step 11
