Rear Airbag Sensor: Installation: Installation

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR AIRBAG SENSOR
    1. Check that the ignition switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Install the rear airbag sensor with the nut and pin.

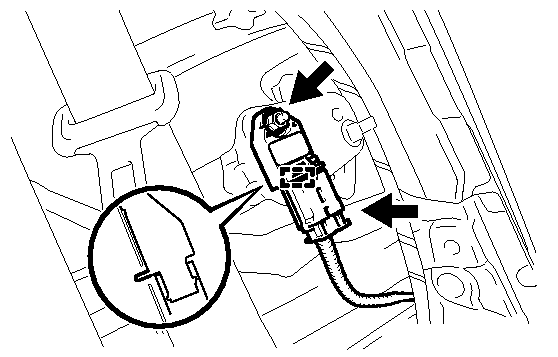

      Fig 1: Locating Rear Airbag Sensor Connector
      GTY187035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      NOTE:
      • If the rear airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
      • When installing the rear airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
      • Make sure that the pin is securely inserted into the body hole.
      • Tighten the nut while holding the rear airbag sensor because the rear airbag sensor pin (stopper) is easily damaged.
    4. Connect the connector.
      NOTE:

      When connecting the airbag connector, take care not to damage the airbag wire harness.

    5. Check that there is no looseness in the installation parts of the rear airbag sensor.
  2. INSTALL REAR SEAT SIDE GARNISH  . Refer to INSTALLATION - Step 27
  3. INSTALL REAR SEATBACK ASSEMBLY LH (for LH Side)  . Refer to INSTALLATION - Step 2
  4. INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
  5. INSTALL REAR SEATBACK ASSEMBLY RH (for RH Side)  . Refer to INSTALLATION - Step 1
  6. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)
  7. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
  8. INSTALL REAR SEAT CUSHION ASSEMBLY  . Refer to INSTALLATION - Step 3
  9. INSTALL SPARE WHEEL COVER  . Refer to INSTALLATION - Step 10
  10. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP  . Refer to INSTALLATION - Step 42
  11. INSTALL REAR DOOR SCUFF PLATE  . Refer to INSTALLATION - Step 43
  12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  13. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
