Curtain Shield Airbag Assembly: Components: Illustration

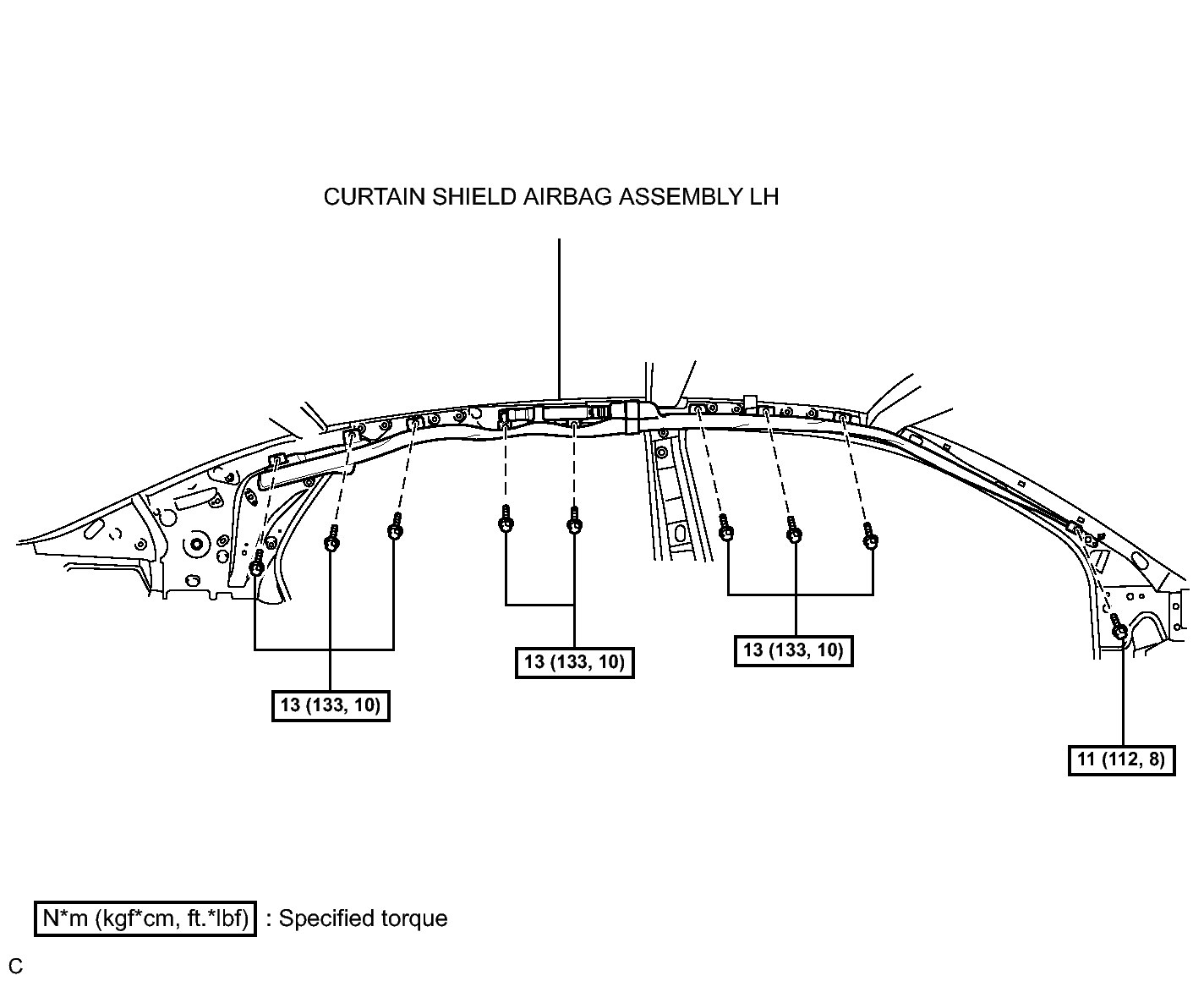

Fig 1: Identifying Curtain Shield Airbag Assembly Replacement Components With Torque Specifications
GTY201217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
