Luggage Compartment Door Opener: Notes

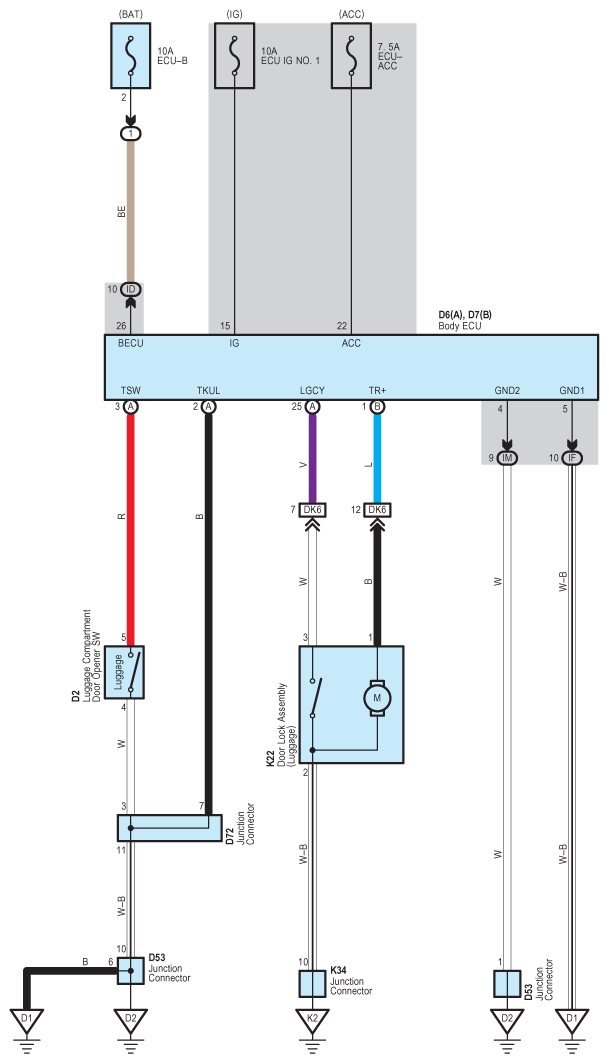

Fig 1: Luggage Compartment Door Opener System Wiring Diagram

G08797498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
