Id Code Box: Installation: Installation

INSTALL ID CODE BOX

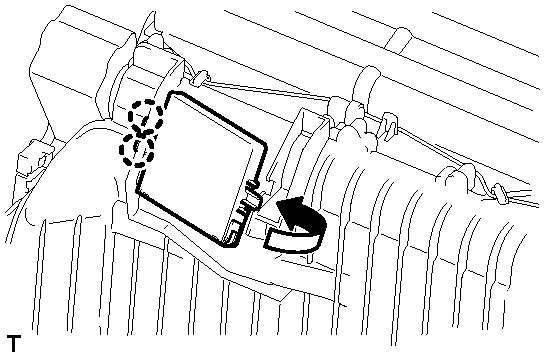

1. Attach the 2 claws and move the ID code box in the direction of the arrow.

  Fig 1: Identifying ID Code Box (Immobilizer Code ECU) And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

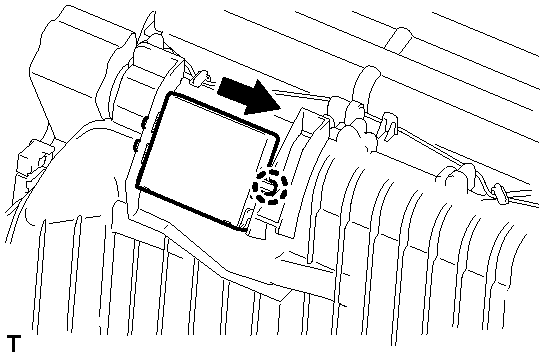

2. Move the ID code box in the direction of the arrow to attach the claw and install the ID code box.

  Fig 2: Identifying ID Code Box (Immobilizer Code ECU) And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT ASSEMBLY
1. Install the air conditioning unit. Refer to INSTALLATION .
REGISTER ECU CODE
1. Register the ECU code. Refer to REGISTRATION .
