Entry Lock And Unlock Switch: Installation: Installation

INSTALL FRONT DOOR OUTSIDE HANDLE ASSEMBLY
1. Insert the front end of the front door outside handle assembly into the front door outside handle frame.

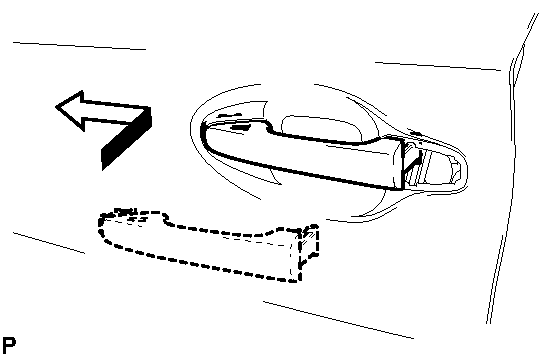

  Fig 1: Identifying Front Door Outside Handle Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert the rear end of the front door outside handle assembly into the front door outside handle frame, then slide the front door outside handle assembly toward the front of the vehicle to install it.

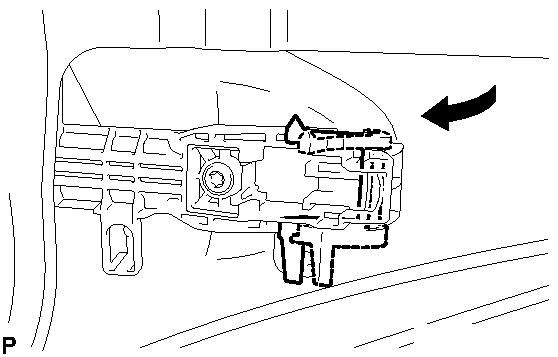

3. Move the lever back in the direction indicated by the arrow in the illustration to lock the door outside handle assembly.

  Fig 2: Identifying Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the connector.

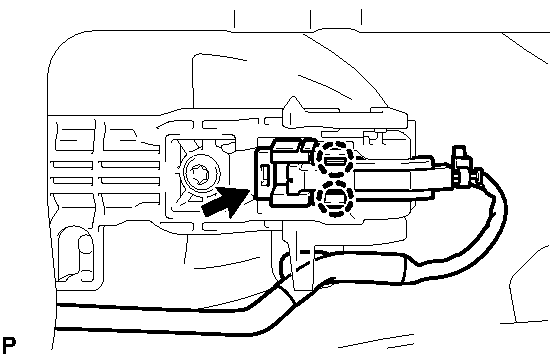

  Fig 3: Identifying Front Door Outside Handle Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Engage the 2 claws.
INSTALL FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side) . Refer to REASSEMBLY - Step 21
INSTALL FRONT DOOR OUTSIDE HANDLE COVER WITH LOCK CYLINDER ASSEMBLY (for Driver Side) . Refer to REASSEMBLY - Step 22
INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY . Refer to REASSEMBLY - Step 23
INSTALL FRONT DOOR GLASS RUN . Refer to REASSEMBLY - Step 24
INSTALL FRONT DOOR GLASS SUB-ASSEMBLY . Refer to REASSEMBLY - Step 28
INSTALL FRONT DOOR SERVICE HOLE COVER . Refer to REASSEMBLY - Step 29
INSTALL FRONT DOOR TRIM BRACKET . Refer to REASSEMBLY - Step 30
INSTALL FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY . Refer to REASSEMBLY - Step 37
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY . Refer to REASSEMBLY - Step 38
INSTALL COURTESY LIGHT ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL DOOR ARMREST COVER . Refer to REASSEMBLY - Step 40
INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side) . Refer to REASSEMBLY - Step 41
INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side) . Refer to INSTALLATION - Step 2
INSTALL ASSIST GRIP COVER . Refer to REASSEMBLY - Step 43
INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG . Refer to REASSEMBLY - Step 44
INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 58
INSTALL REAR DECK FLOOR BOX . Refer to INSTALLATION - Step 59
INSTALL REAR NO. 2 FLOOR BOARD (for Separate Type) . Refer to INSTALLATION - Step 60
INITIALIZE POWER WINDOW CONTROL SYSTEM
Refer to INITIALIZATION
CHECK POWER WINDOW CONTROL SYSTEM
Refer to OPERATION CHECK
