Removal (To 12/2010): Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 9
REMOVE V-RIBBED BELT . Refer to REMOVAL - Step 4
REMOVE GENERATOR ASSEMBLY
1. Disconnect the wire harness clamp.

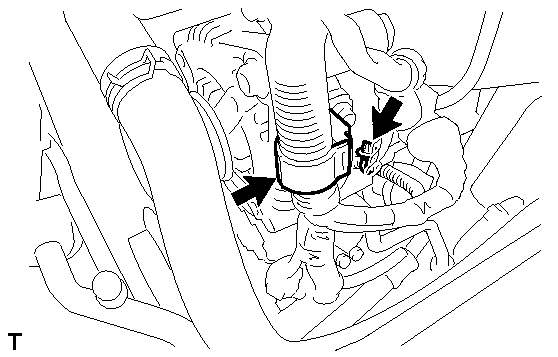

  Fig 1: Locating Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the terminal cap.

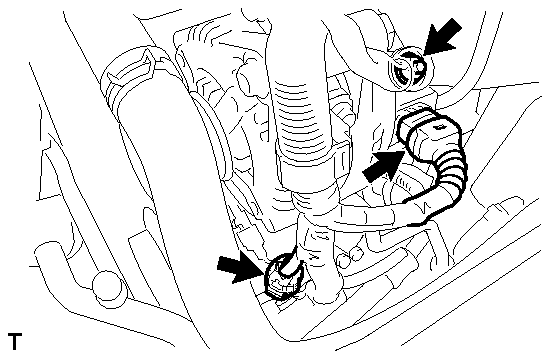

  Fig 2: Locating Generator Connector To Generator Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the nut and disconnect the wire harness from terminal B.
4. Disconnect the generator connector from the generator assembly.
5. Remove the nut from the cylinder block.

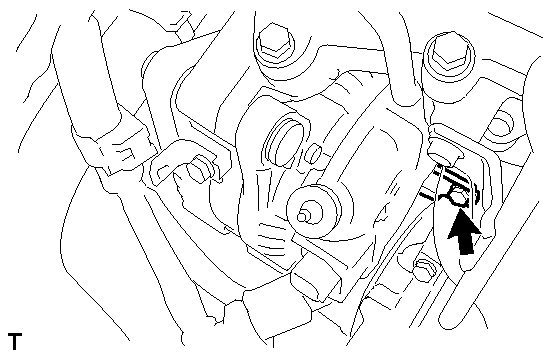

  Fig 3: Locating Cylinder Block Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the 2 bolts and generator assembly.

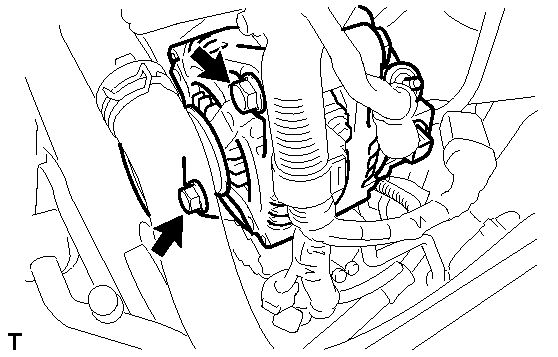

  Fig 4: Locating Generator Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Remove the bolt and wire harness clamp stay.

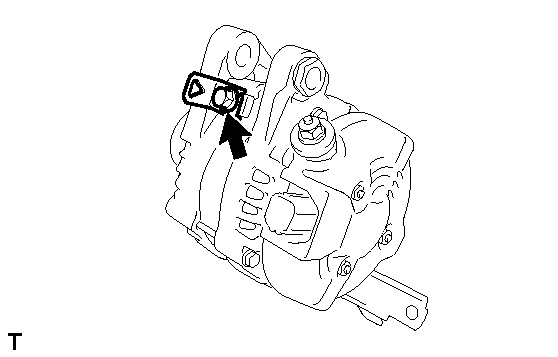

  Fig 5: Locating Wire Harness Clamp Stay Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Remove the bolt and bracket.

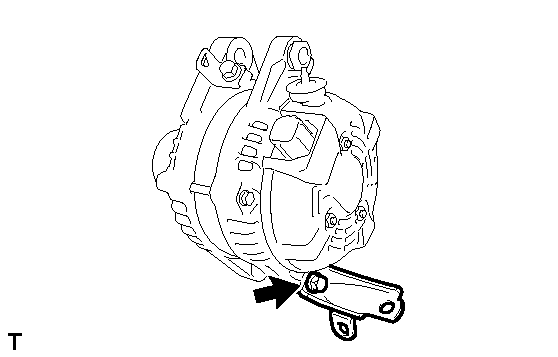

  Fig 6: Locating Bolt And Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
