Remote Control Mirror (w/ Seat Position Memory): Notes

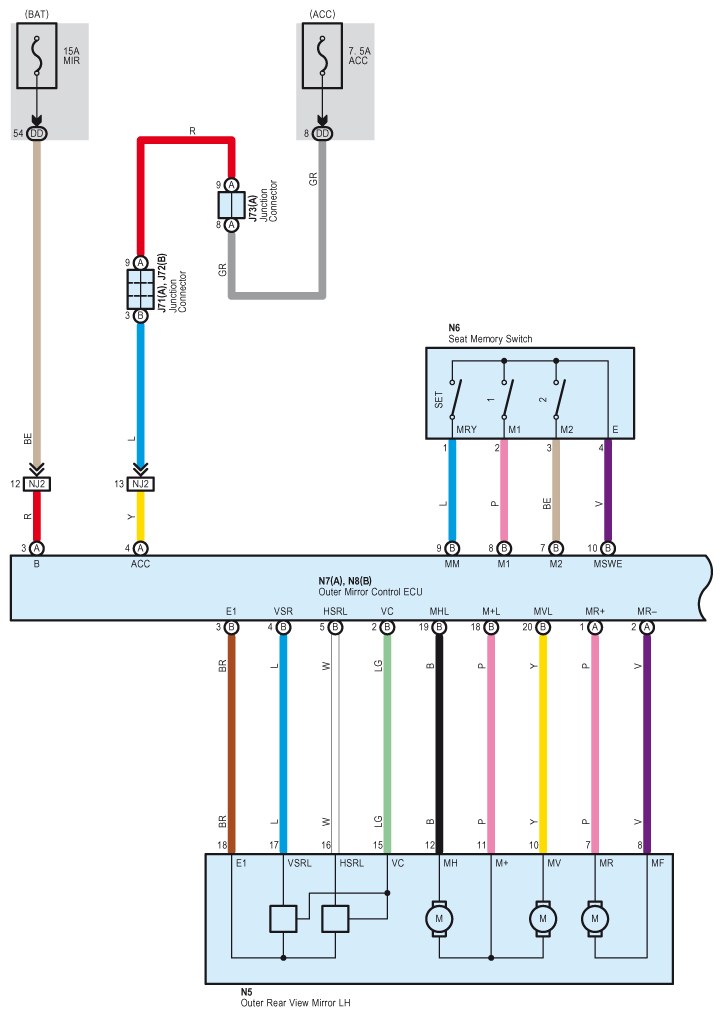

Fig 1: Remote Control Mirror (W/ Seat Position Memory) - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

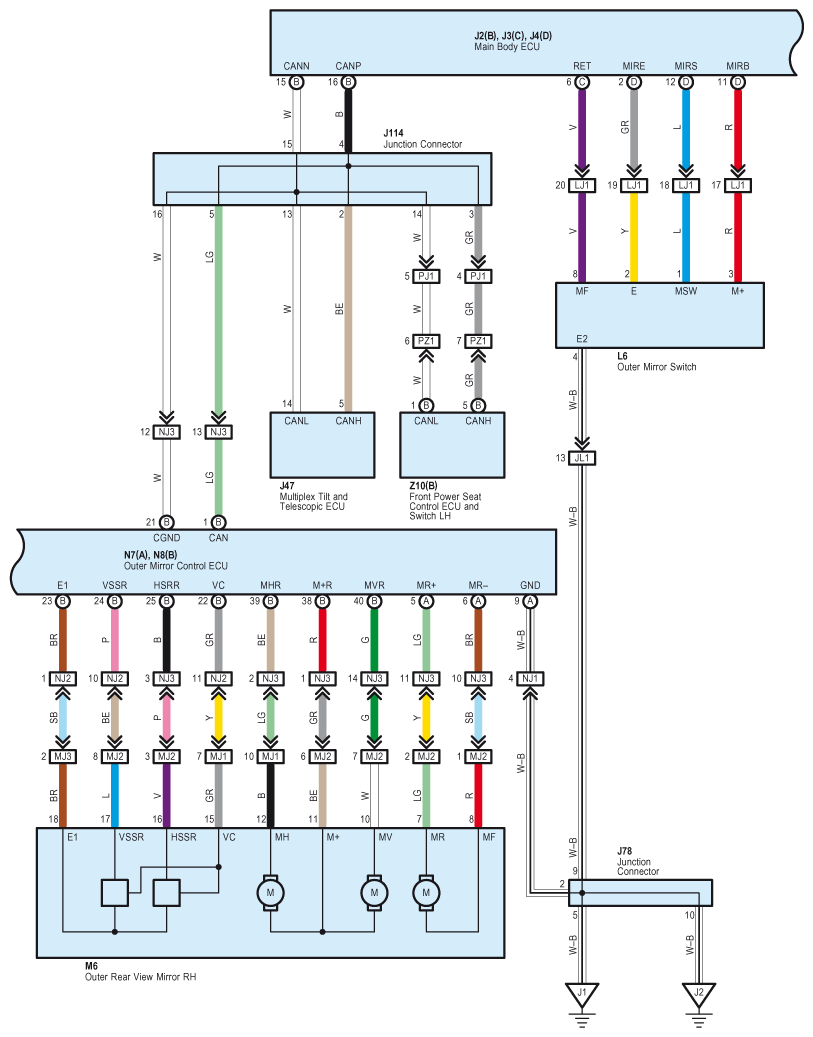

Fig 2: Remote Control Mirror (W/ Seat Position Memory) - Circuit Diagram (2 Of 3)

Fig 3: Remote Control Mirror (W/ Seat Position Memory) - Circuit Diagram (3 Of 3)
