Front Speed Sensor: Installation: Installation

HINT:

Install the RH side by the same procedures with LH side.

INSTALL FRONT SPEED SENSOR LH
1. Install the speed sensor front LH with the bolt.

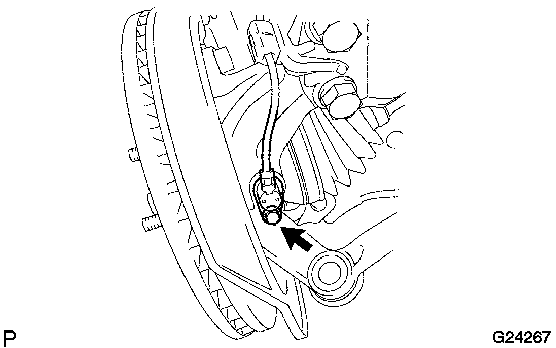

  Fig 1: Identifying Front Speed Sensor & Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  NOTE:
  Keep the tip of the front speed sensor LH.
2. Install the sensor harness clamps with the 2 bolts A and B to the body and shock absorber.

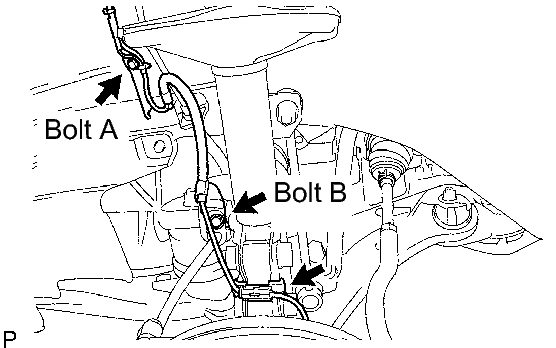

  Fig 2: Identifying Sensor Harness, Clamps, Shock Absorber & Bolts A & B
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bolt A

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  Bolt B

  Torque: 19 N*m (192 kgf*cm, 14 ft.*lbf)

  NOTE:
  Do not twist the sensor wire when installing the sensor.
3. Connect the clamp to the knuckle.
4. Install the sensor harness and clamp to the body.
5. Connect the speed sensor connector.

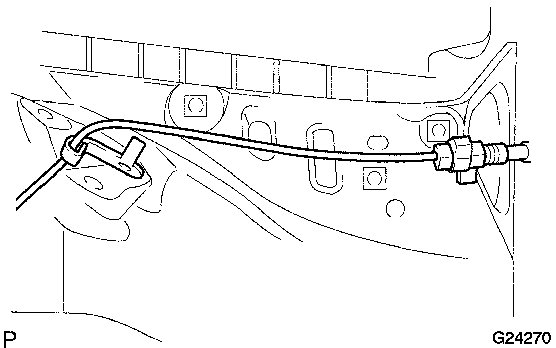

  Fig 3: Identifying Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER LH
REMOVE FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CHECK ABS SPEED SENSOR SIGNAL
HINT:

Refer toTEST MODE PROCEDURE
