Knock Sensor: Removal: Removal

  1. REMOVE INTAKE MANIFOLD
    1. Remove the intake manifold. Refer to REMOVAL .
  2. REMOVE SEPARATOR CASE
    1. Remove the 4 bolts and separator case.

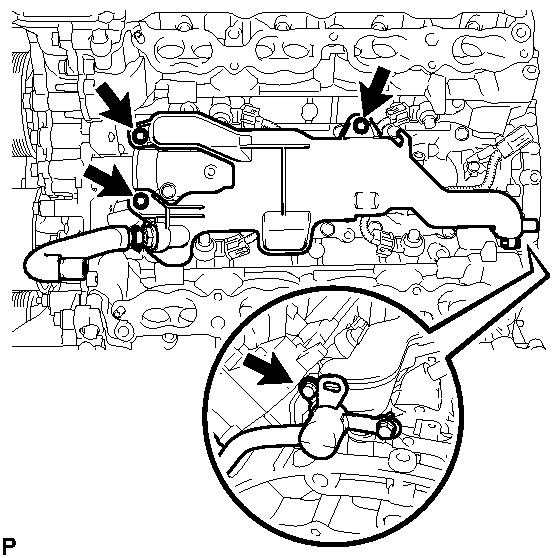

      Fig 1: Locating Separator Case & Bolts
      GTY185858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE KNOCK SENSOR

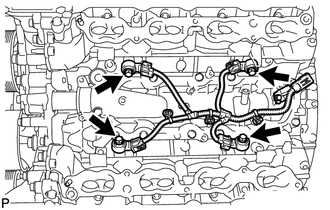

    Fig 2: Locating Knock Sensors, Bolts & Connectors
    GTY167650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 4 knock sensor connectors.
    2. Remove the 4 bolts and 4 knock sensors.
