Section 61 (Air Conditioning (Service Information)): Condenser: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COOLER CONDENSER ASSEMBLY
1. Install the cooler condenser assembly with the 4 bolts.

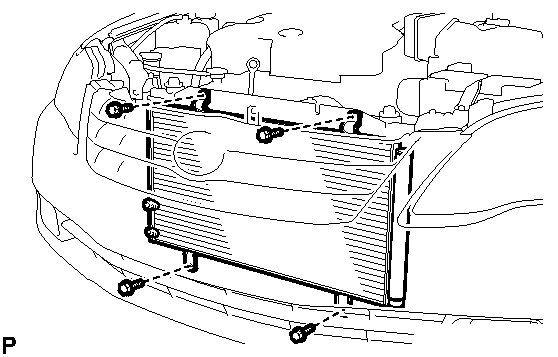

  Fig 1: Identifying Cooler Condenser Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  HINT:

  If the condenser is replaced with a new one, add compressor oil to the new condenser.

  Capacity

  40 cc (1.4 fl. oz.)

  Compressor oil

  ND-8 or equivalent
INSTALL AIR CONDITIONER TUBE AND ACCESSORY
1. Remove the attached vinyl tape from the tube and the connecting part of the cooler condenser assembly.
2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the hose joint.
  Compressor oil

  ND-OIL 8 or equivalent
3. Install the O-ring on the air conditioning tube assembly.
4. Install the air conditioner tube & accessory on the cooler condenser assembly with the bolt.

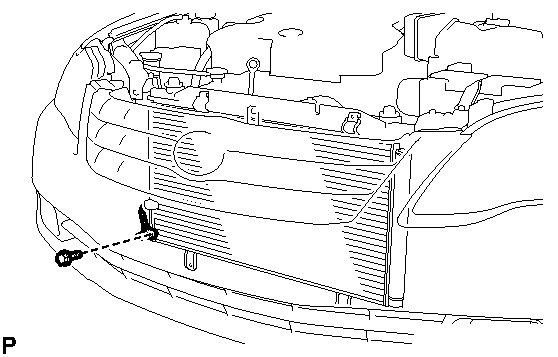

  Fig 2: Identifying Air Conditioner Tube & Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
INSTALL COOLER REFRIGERANT DISCHARGE HOSE NO. 1
1. Remove the attached vinyl tape from the pipe and the connecting part of the cooler condenser assembly.
2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the pipe joint.
  Compressor oil

  ND-OIL 8 or equivalent
3. Install the O-ring on the cooler refrigerant discharge hose No. 1.
4. Install the cooler refrigerant discharge hose No. 1.

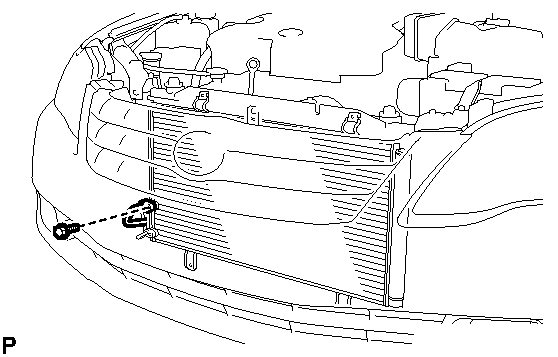

  Fig 3: Identifying Cooler Refrigerant Discharge Hose No. 1 and Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
INSTALL RADIATOR SUPPORT UPPER . Refer to INSTALLATION - Step 5
INSTALL HOOD LOCK ASSEMBLY
CHARGE REFRIGERANT See step 2
WARM UP ENGINE See step 3
INSPECT FOR REFRIGERANT LEAK See step 4
