Power Seat (Except TMC Made): Notes

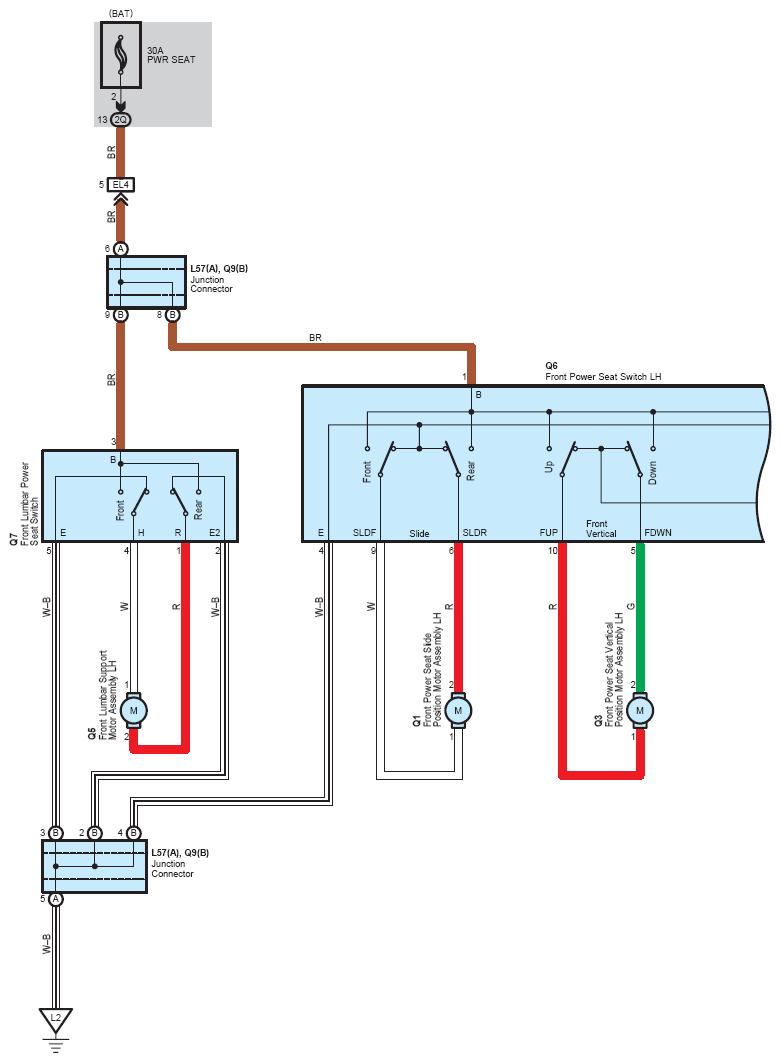

Fig 1: Power Seat (Except TMC Made) - Circuit Diagram (1 Of 2)
G07551301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

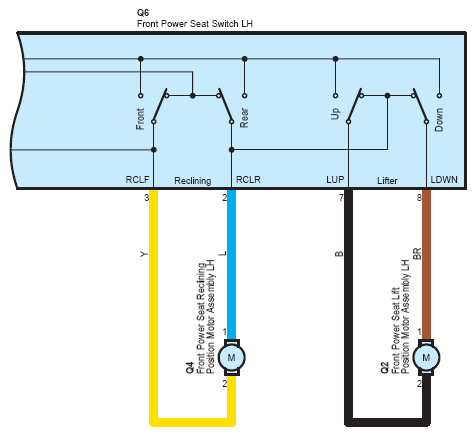

Fig 2: Power Seat (Except TMC Made) - Circuit Diagram (2 Of 2)
G07551302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
