Horn (TMC Made): Notes

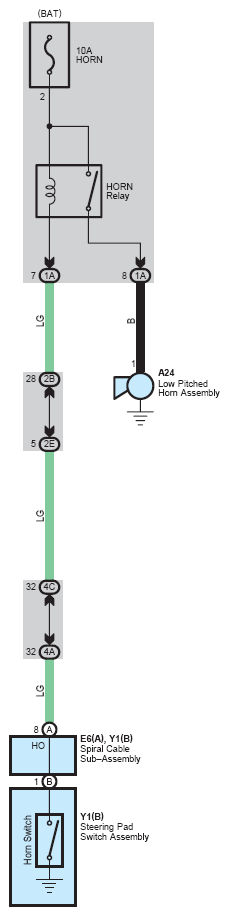

Fig 1: Horn (TMC Made) - Circuit Diagram

G07551171

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
