Rear Power Window Switch: Inspection

  1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear LH)
    1. Check the switch function.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        RESISTANCE SPECIFICATION

        Tester Connection Switch Condition Specified Condition
        6 (UP) - 1 (GND) Auto up or up position Below 1 Ω
        7 (DOWN) - 1 (GND) Auto down or down position Below 1 Ω
        8 (AUTO) - 1 (GND) Auto up or auto down position Below 1 Ω
        6 (UP) - 1 (GND) Free 10 kΩ or higher
        7 (DOWN) - 1 (GND) Free 10 kΩ or higher
        8 (AUTO) - 1 (GND) Free 10 kΩ or higher
        Fig 1: Identifying Power Window Regulator Switch Assembly Connector Terminals
        G06028869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Text in Illustration

        ILLUSTRATION LEGEND

        *1 Component without harness connected (to Power Window Regulator Switch Assembly (for Rear LH Side))

        If the result is not as specified, replace the power window regulator switch assembly (for rear LH side).

    2. Check that the LED illuminates.
      1. Apply battery voltage to the power window regulator switch assembly and check that the LED illuminates.

        OK

        MEASUREMENT AND SPECIFIED CONDITION REFERENCE

        Measurement Condition Specified Condition
        Battery positive (+) → 4 (LED)
        Battery negative (-) → 1 (GND)        		 LED Illuminates

        Text in Illustration

        ILLUSTRATION LEGEND

        *1 Component without harness connected (to Power Window Regulator Switch Assembly (for Rear LH Side))

        If the result is not as specified, replace the power window regulator switch assembly (for rear LH side).

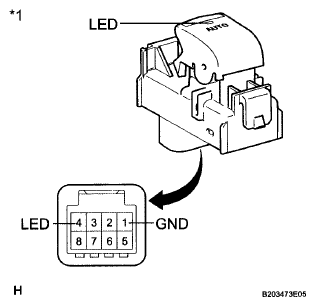

        Fig 2: Identifying Power Window Regulator Switch Assembly Connector Terminals
        G06028909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH)
    1. Check the switch function.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        RESISTANCE SPECIFICATION

        Tester Connection Switch Condition Specified Condition
        6 (UP) - 1 (GND) Auto up or up position Below 1 Ω
        7 (DOWN) - 1 (GND) Auto down or down position Below 1 Ω
        8 (AUTO) - 1 (GND) Auto up or auto down position Below 1 Ω
        6 (UP) - 1 (GND) Free 10 kΩ or higher
        7 (DOWN) - 1 (GND) Free 10 kΩ or higher
        8 (AUTO) - 1 (GND) Free 10 kΩ or higher
        Fig 3: Identifying Power Window Regulator Switch Assembly Connector Terminals
        G06028869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Text in Illustration

        ILLUSTRATION LEGEND

        *1 Component without harness connected (to Power Window Regulator Switch Assembly (for Rear RH Side))

        If the result is not as specified, replace the power window regulator switch assembly (for rear RH side).

    2. Check that the LED illuminates.
      1. Apply battery voltage to the power window regulator switch assembly and check that the LED illuminates.

        OK

        MEASUREMENT AND SPECIFIED CONDITION REFERENCE

        Measurement Condition Specified Condition
        Battery positive (+) → 4 (LED)
        Battery negative (-) → 1 (GND)        		 LED Illuminates

        Text in Illustration

        ILLUSTRATION LEGEND

        *1 Component without harness connected (to Power Window Regulator Switch Assembly (for Rear RH Side))

        If the result is not as specified, replace the power window regulator switch assembly (for rear RH side).

        Fig 4: Identifying Power Window Regulator Switch Assembly Connector Terminals
        G06028909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
