Home >> Toyota >> 2009 >> Tundra Base, 5.7 W >> Repair and Diagnosis >> Engine Performance >> Engine Ignition System (3UR-FBE) >> Ignition Coil And Spark Plug >> Components

Ignition Coil And Spark Plug: Components

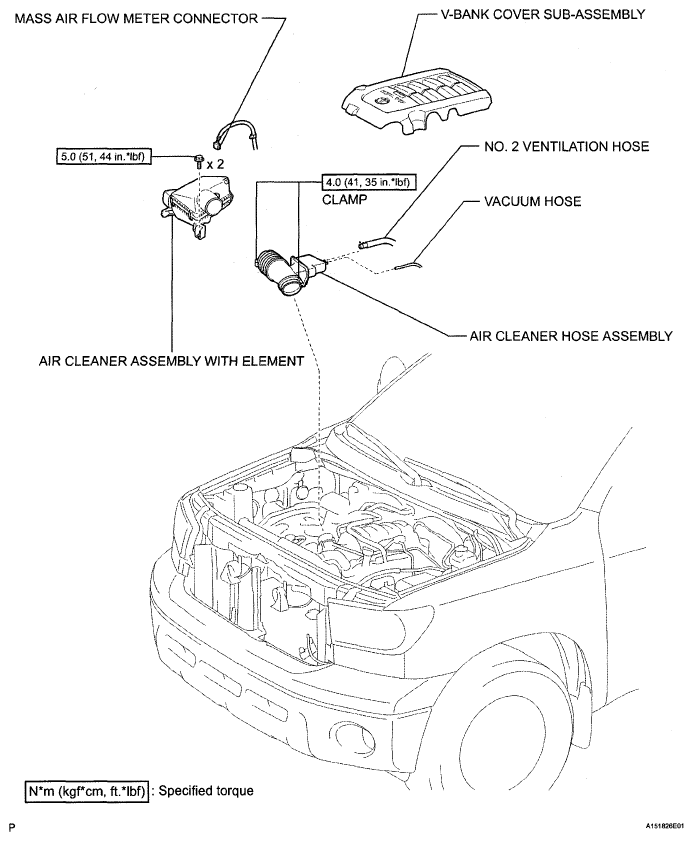

Fig 1: Air Cleaner And Related Replacement Components With Torque Specifications
G05157898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

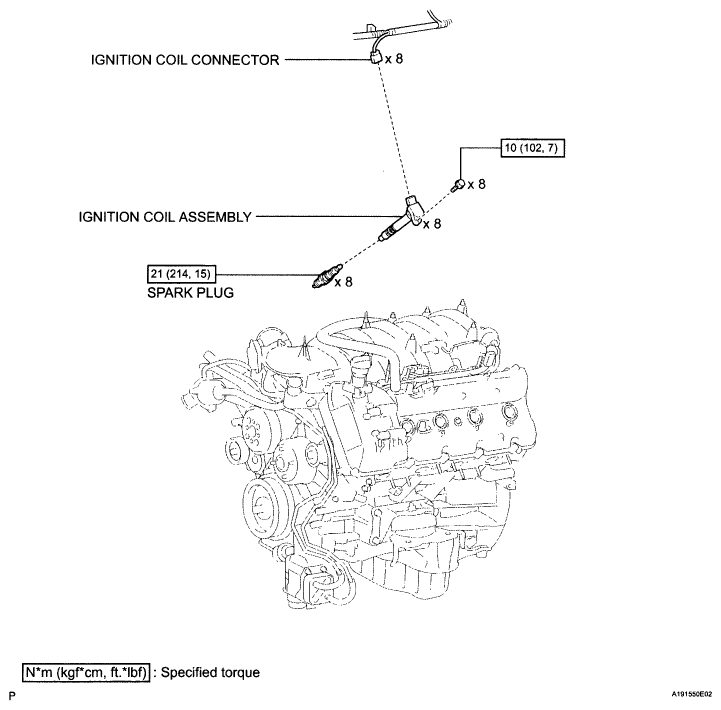

Fig 2: Ignition Coil Replacement Components With Torque Specifications
G06070510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
