Cruise Control (2UZ-FE): Notes

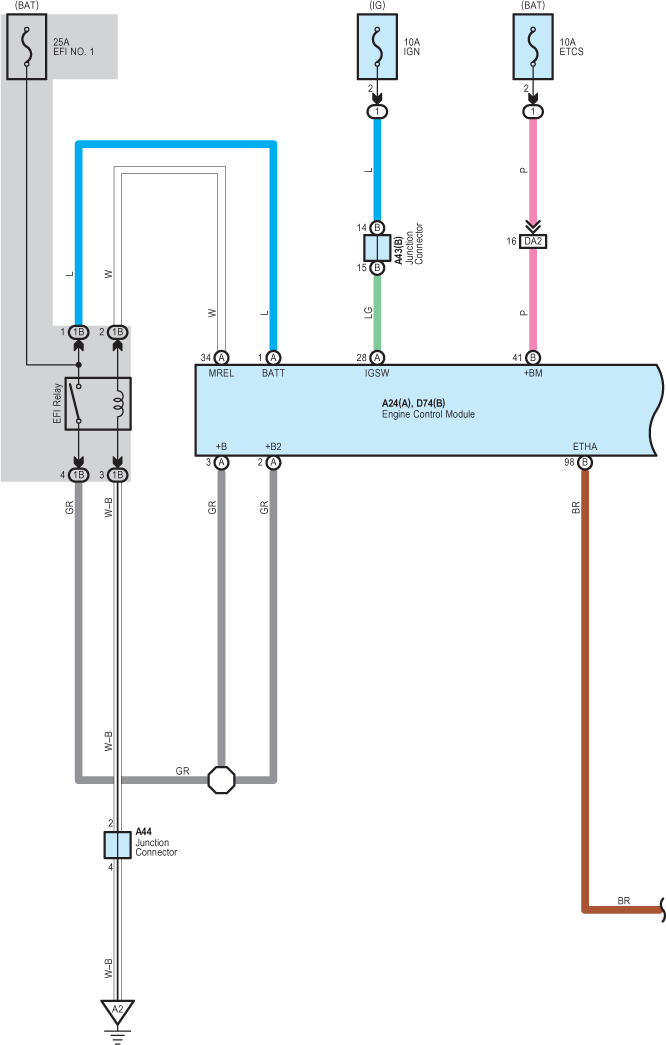

Fig 1: Cruise Control (2UZ-FE) - Circuit Diagram (1 Of 7)
G07624290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

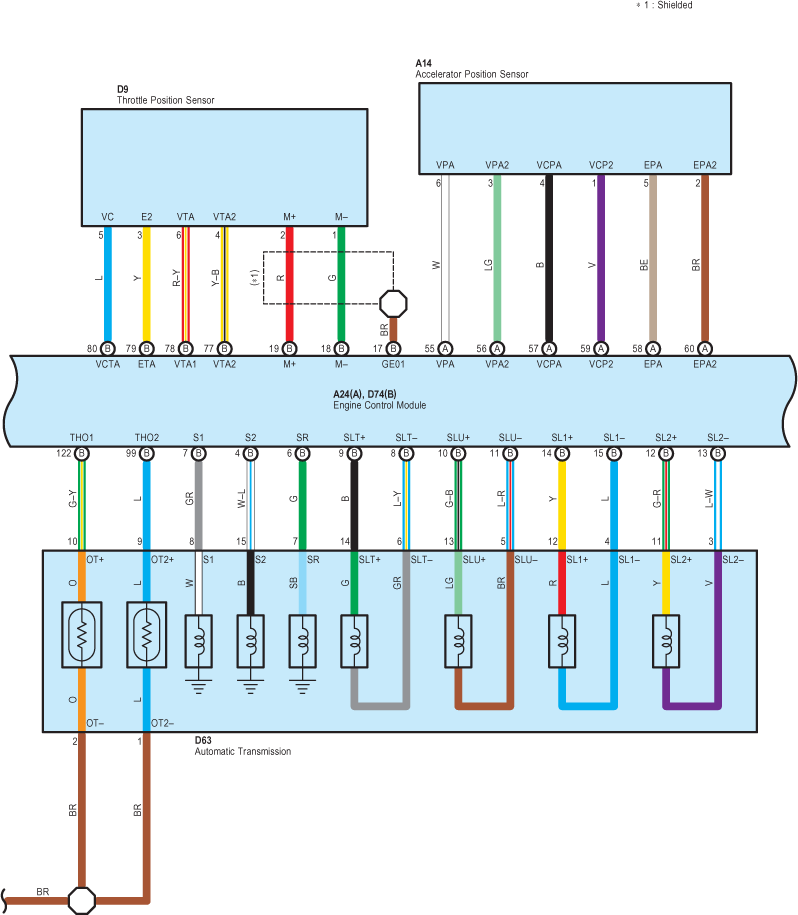

Fig 2: Cruise Control (2UZ-FE) - Circuit Diagram (2 Of 7)
G07624291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

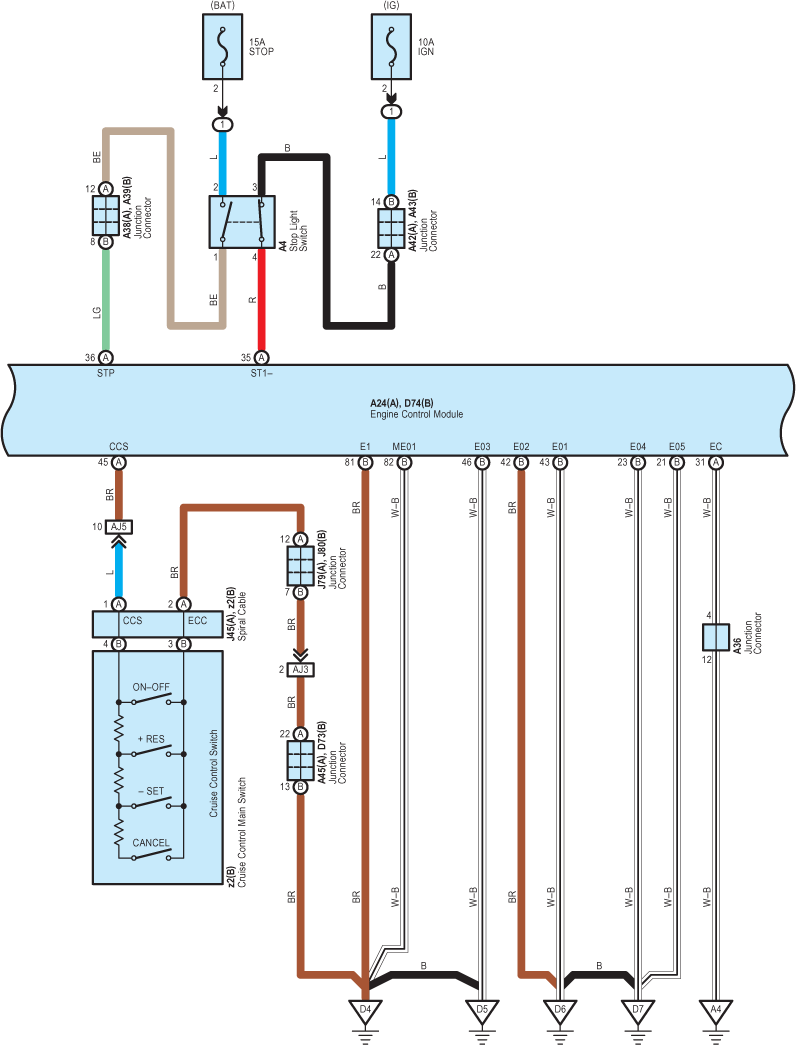

Fig 3: Cruise Control (2UZ-FE) - Circuit Diagram (3 Of 7)
G07624292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

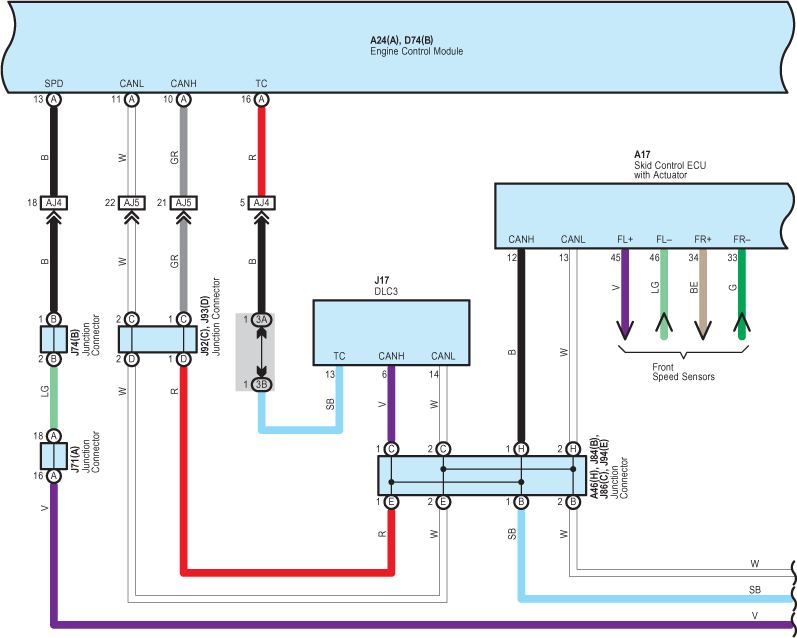

Fig 4: Cruise Control (2UZ-FE) - Circuit Diagram (4 Of 7)
G07624293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

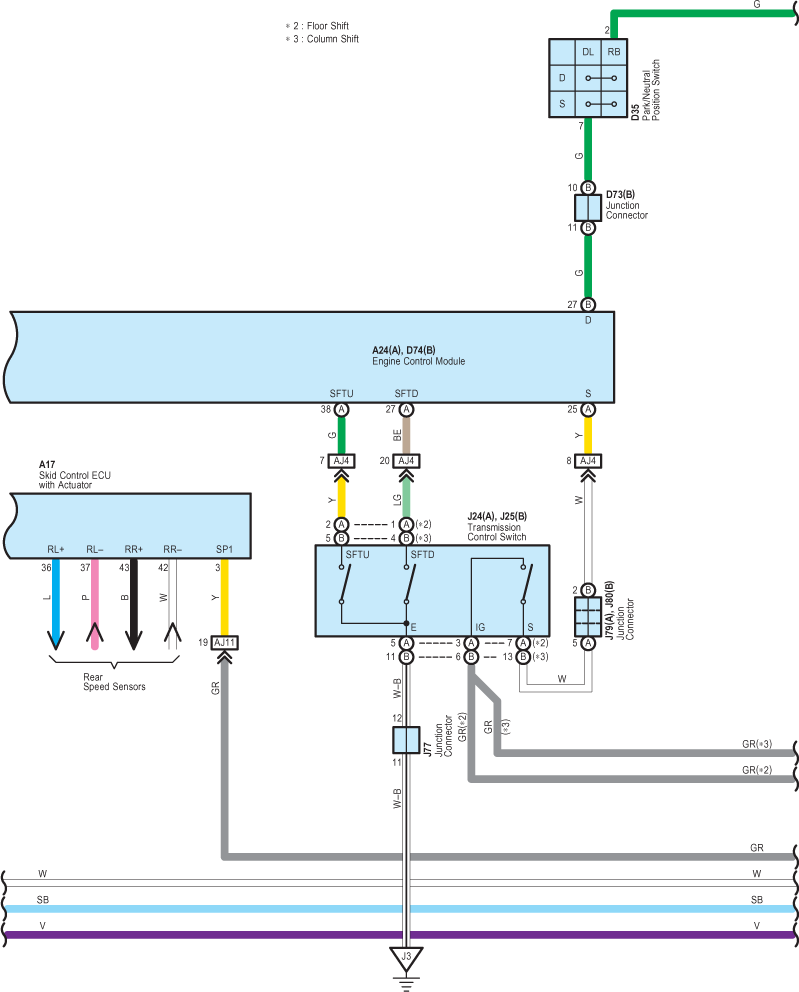

Fig 5: Cruise Control (2UZ-FE) - Circuit Diagram (5 Of 7)
G07624294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

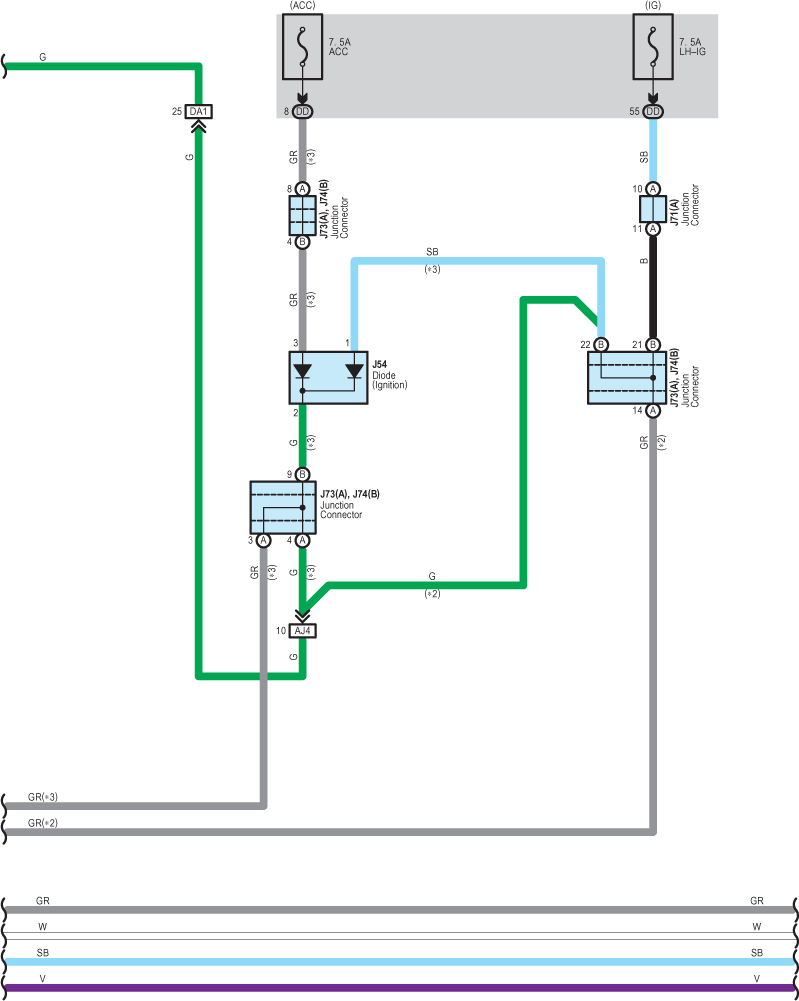

Fig 6: Cruise Control (2UZ-FE) - Circuit Diagram (6 Of 7)
G07624295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

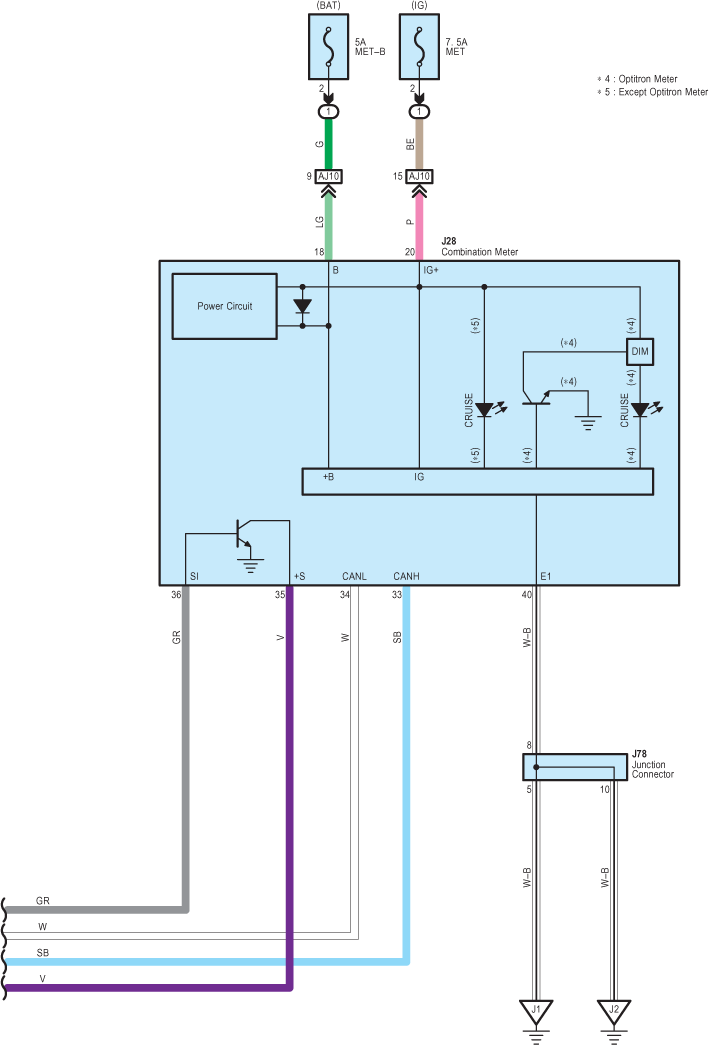

Fig 7: Cruise Control (2UZ-FE) - Circuit Diagram (7 Of 7)
G07624296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
