Parts Location

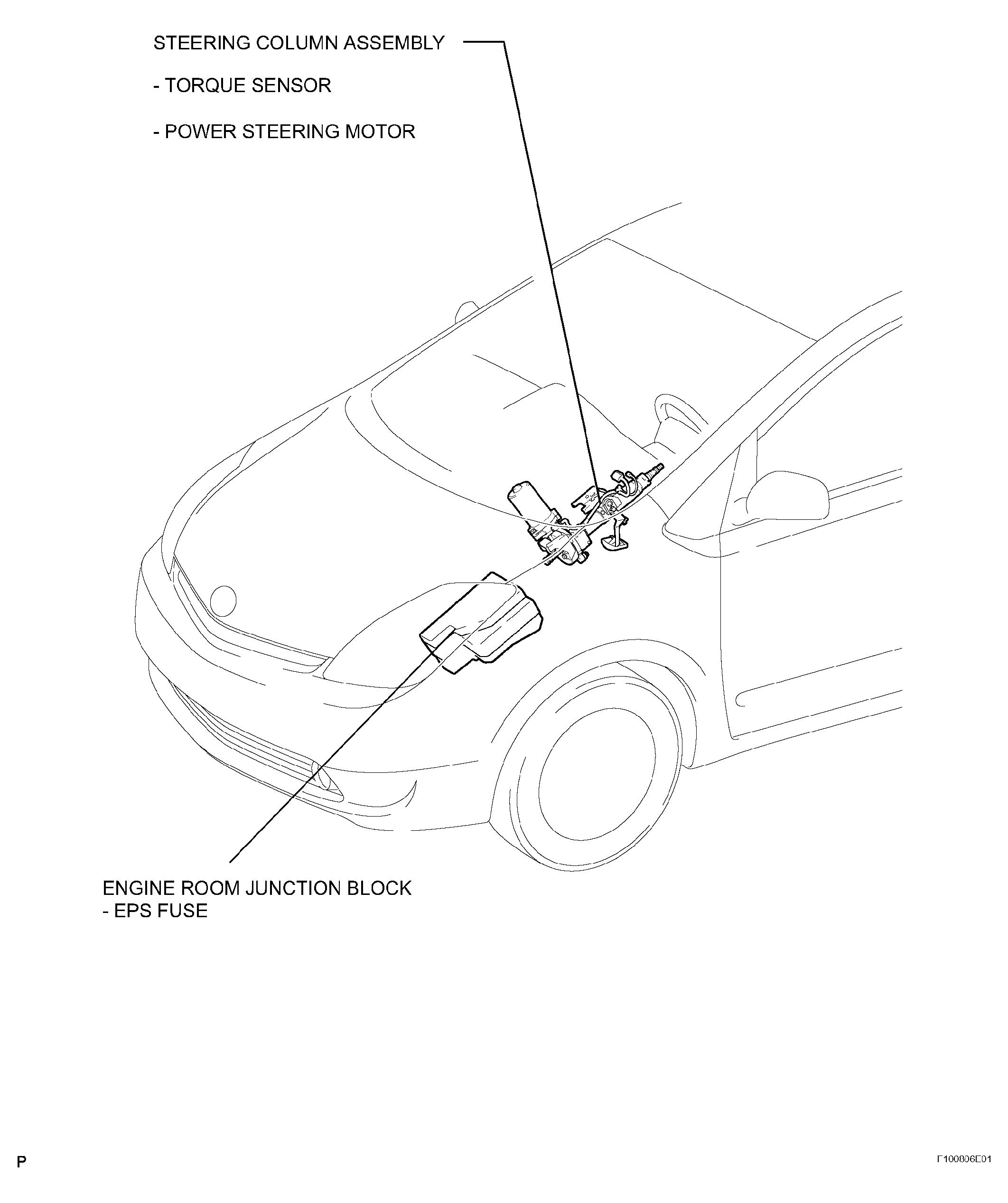

Fig 1: Locating Electronic Power Steering System Components (1 Of 2)
G04474940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

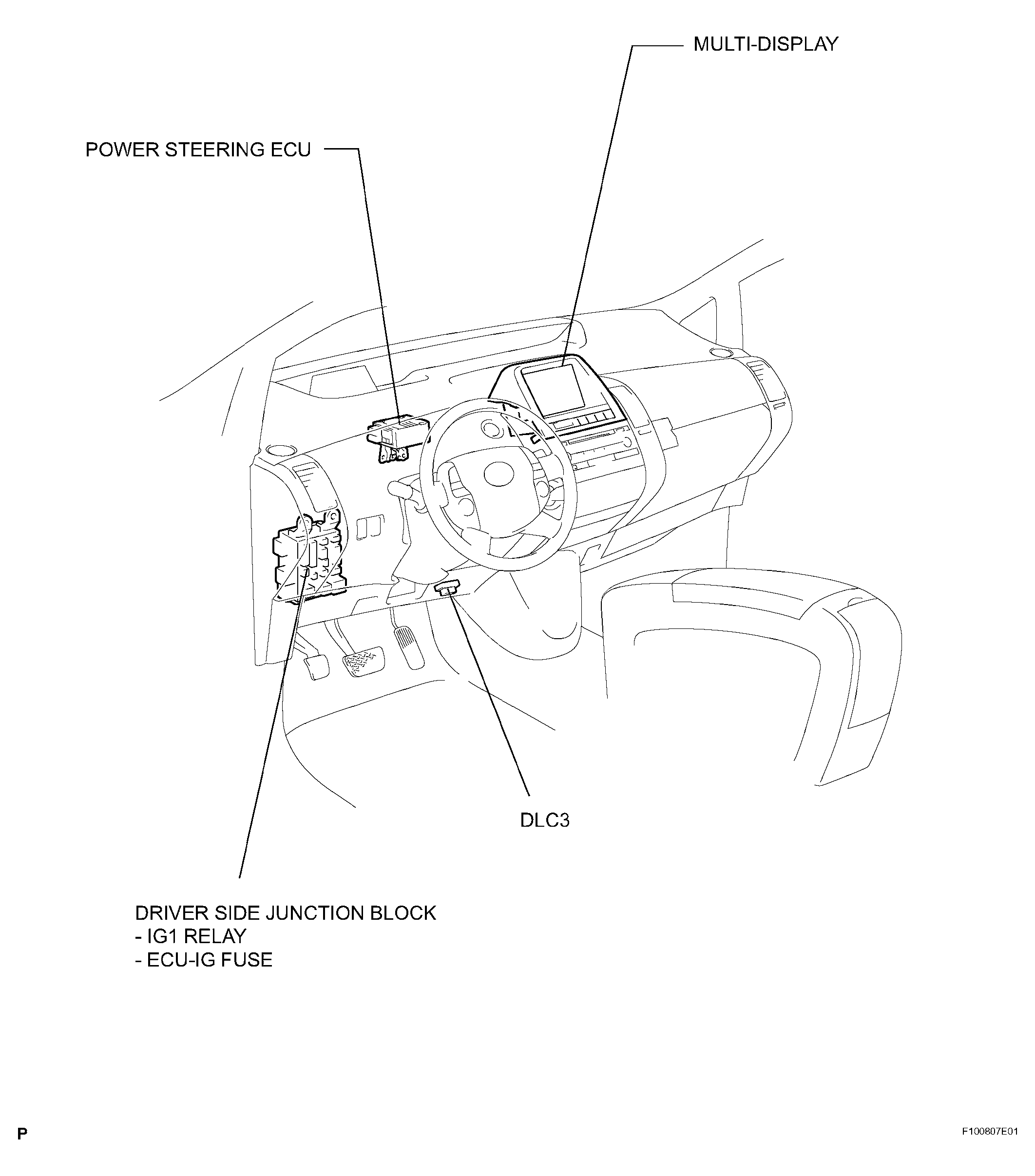

Fig 2: Locating Electronic Power Steering System Components (2 Of 2)
G04474941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
