Home >> Toyota >> 2009 >> Prius Base >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> Emission Control System (1NZ-FXE) >> PCV Valve >> Components

PCV Valve: Components

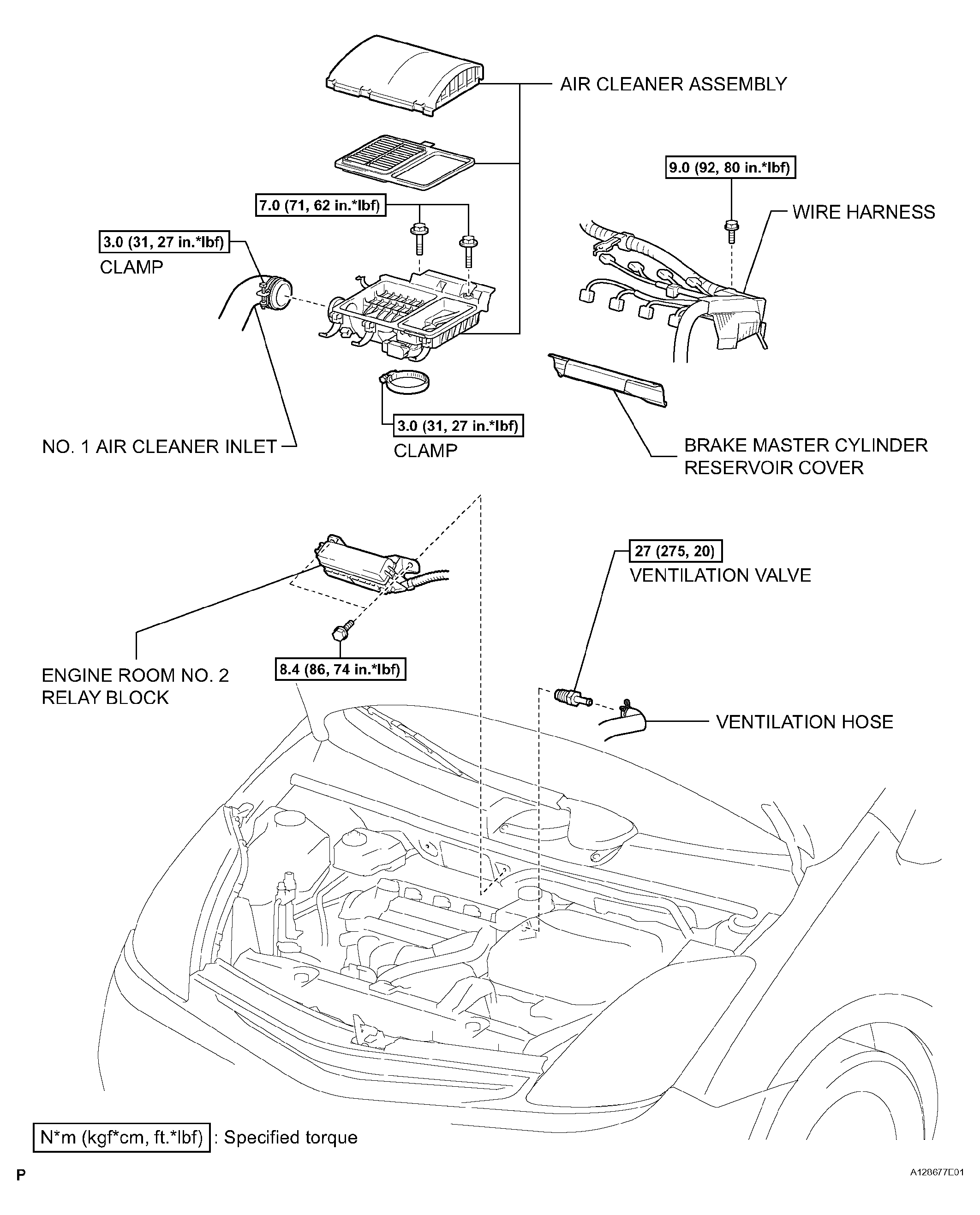

Fig 1: Ventilation Valve Replacement Components -- With Torque Specification

G04472959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
