Emission Control System
>>
System Diagram
System Diagram
The emission control system is controlled by the ECM based on signals from various sensors.
Fig 1: Emission Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

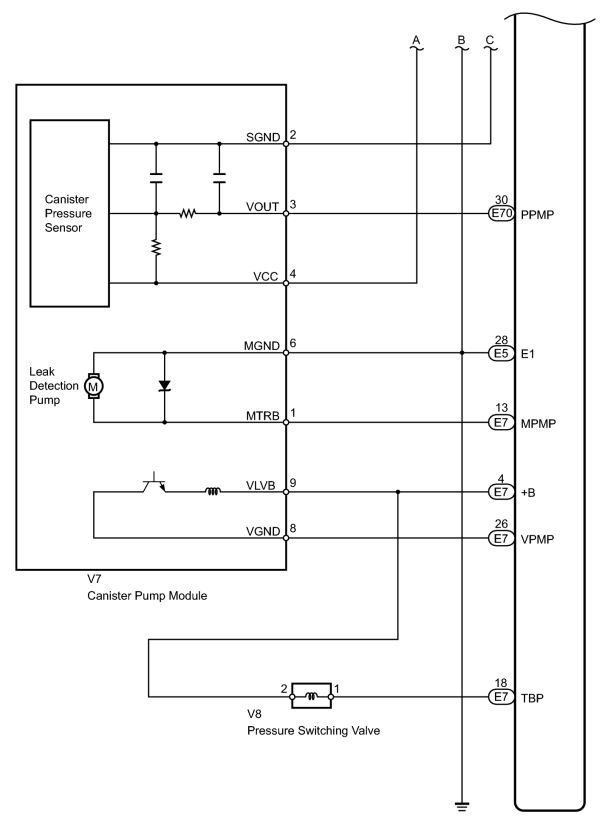

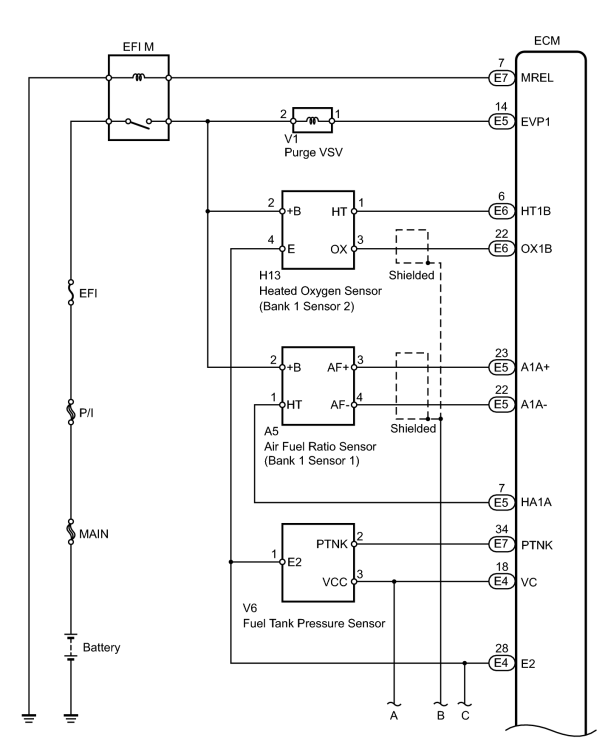

Fig 2: Emission Control System - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
