Cruise Control Switch Circuit: Wiring Diagram

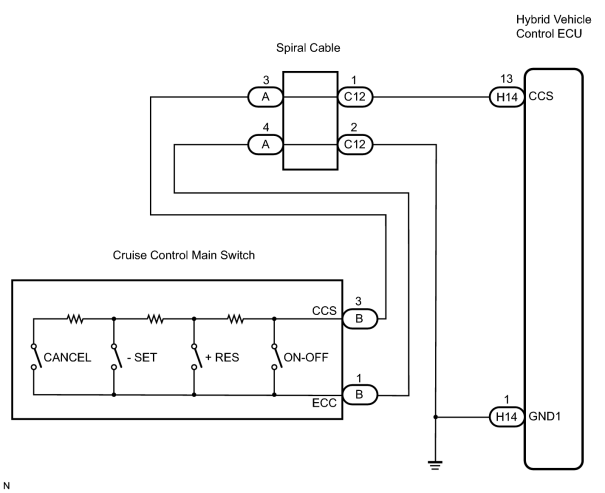

Fig 1: Identifying Cruise Control Switch Circuit Diagram

G00483026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
