Differential Case: Disassembly: Disassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT DIFFERENTIAL RING GEAR
1. Put matchmarks on the front differential ring gear and differential case.

  Fig 1: Identifying Matchmarks On Front Differential Ring Gear And Differential Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 12 bolts.

  Fig 2: Locating Front Differential Ring Gear Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a plastic hammer, tap on the front differential ring gear to remove it from the differential case.

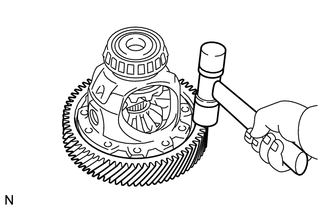

  Fig 3: Tapping On Front Differential Ring Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
1. Using SST, remove the front differential case front tapered roller bearing from the differential case.

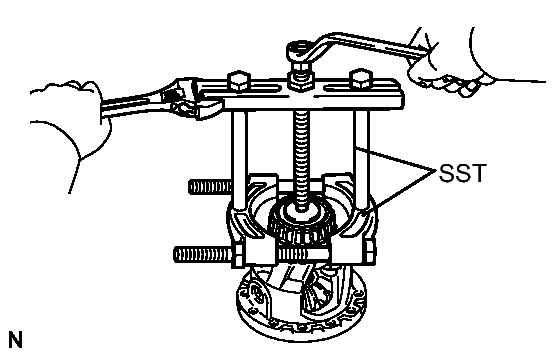

  Fig 4: Removing Front Differential Case Front Tapered Roller Bearing Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09950-00020
  - SST: 09950-00030
  - SST: 09950-60010
    1. 09951-00480
2. Using SST, remove the front differential case front tapered roller bearing outer race and shim from the transaxle housing.

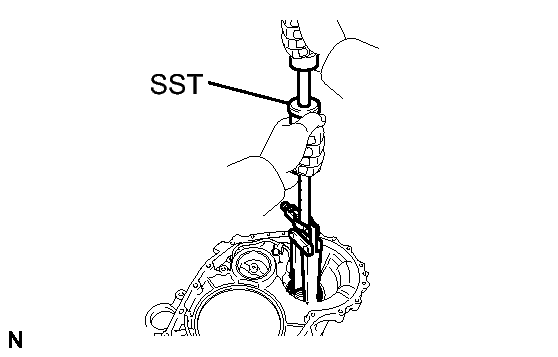

  Fig 5: Removing Front Differential Case Front Tapered Roller Bearing Outer Race Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09308-00010
REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING
1. Using SST, remove the front differential case rear tapered roller bearing from the differential case.

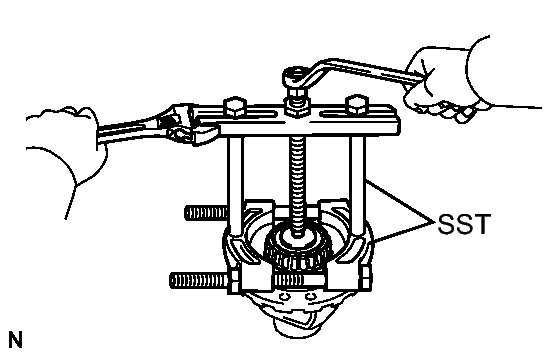

  Fig 6: Removing Front Differential Case Rear Tapered Roller Bearing Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09950-00020
  - SST: 09950-00030
  - SST: 09950-60010
    1. 09951-00480
2. Using SST, remove the front differential case rear tapered roller bearing outer race from the transaxle case.

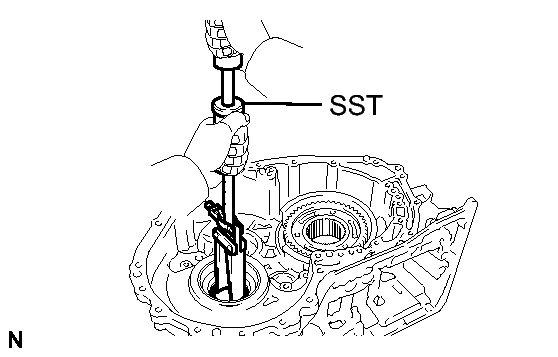

  Fig 7: Removing Front Differential Case Rear Tapered Roller Bearing Outer Race Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09308-00010
REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN
1. Using a pin punch (3 mm) and hammer, remove the straight pin.

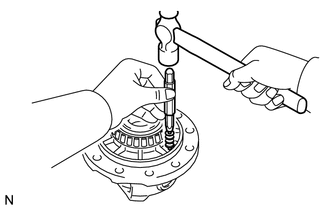

  Fig 8: Removing Straight Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Before removing the straight pin, unstake it with a pin punch.
REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT
1. Remove the front No. 1 differential pinion shaft from the differential case.

  Fig 9: Locating Front No. 1 Differential Pinion Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DIFFERENTIAL SIDE GEAR
1. Remove the 2 front differential pinions, 2 pinion thrust washers, 2 front differential side gears, and 2 side gear thrust washers from the differential case.

  Fig 10: Identifying Differential Side Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT TRANSAXLE CASE OIL SEAL
1. Using SST and a hammer, remove the front transaxle case oil seal from the transaxle housing.

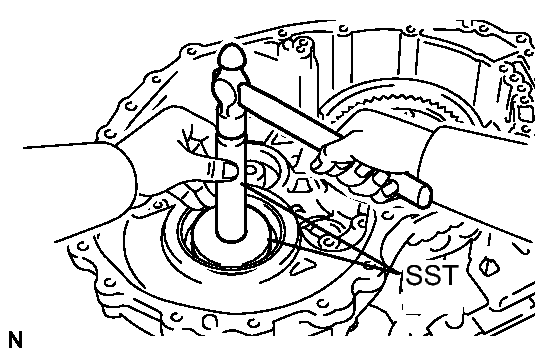

  Fig 11: Removing Front Transaxle Case Oil Seal From Transaxle Housing Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09950-60010
    1. 09951-00540
  - SST: 09950-70010
    1. 09951-07200
REMOVE TRANSAXLE CASE OIL SEAL
1. Using SST and a hammer, remove the transaxle case oil seal from the transaxle case.

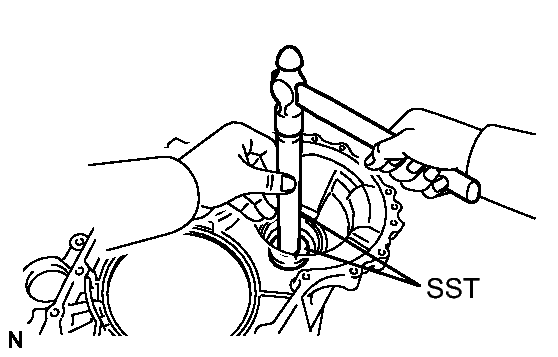

  Fig 12: Removing Transaxle Case Oil Seal From Transaxle Case Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09950-60010
    1. 09951-00650
  - SST: 09950-70010
    1. 09951-07100
