On-Vehicle Inspection

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT INTAKE SYSTEM
    1. Check that there is no air suction at the points shown in the illustration.

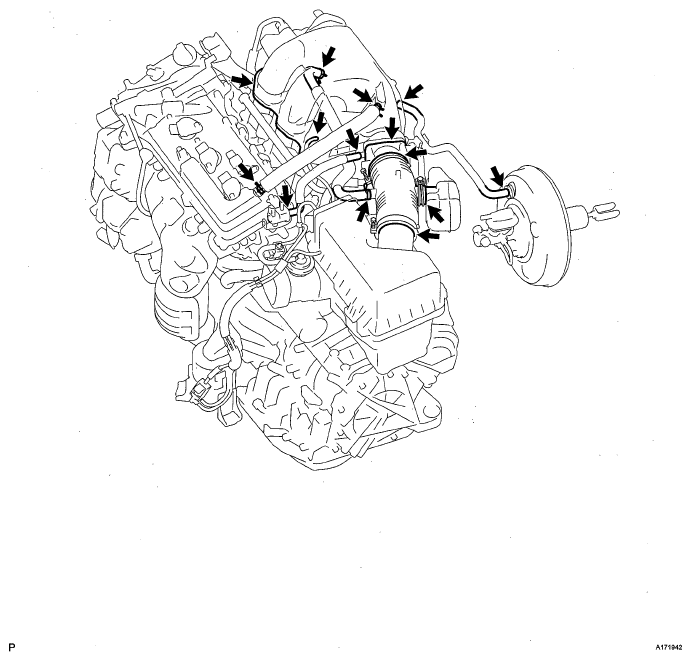

    Fig 1: Locating Intake System Inspection Points
    G05414955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
