Intake Manifold: Components

WARNING: This page is about a different variant/trim than selected.

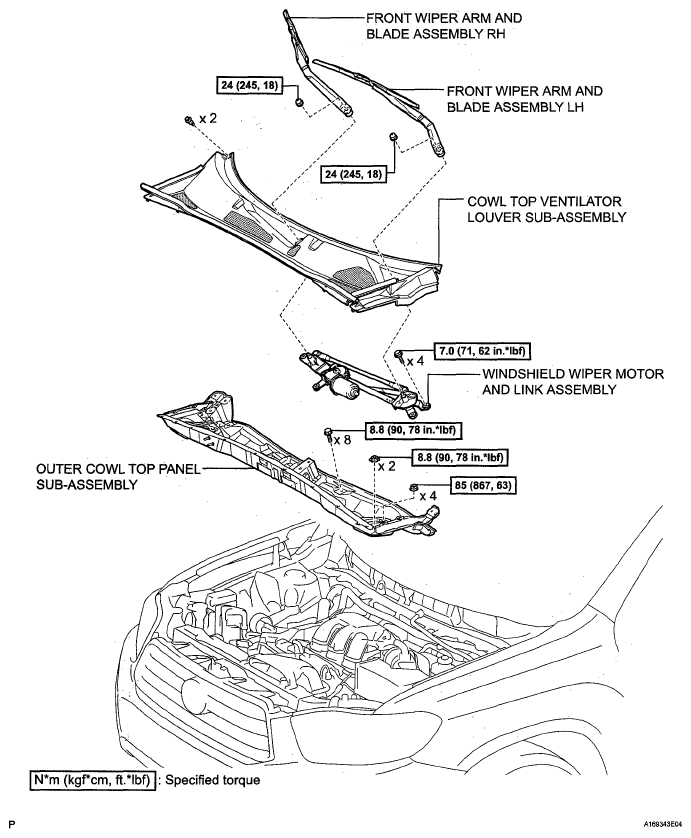

Fig 1: Identifying Intake Manifold Replacement Components And Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

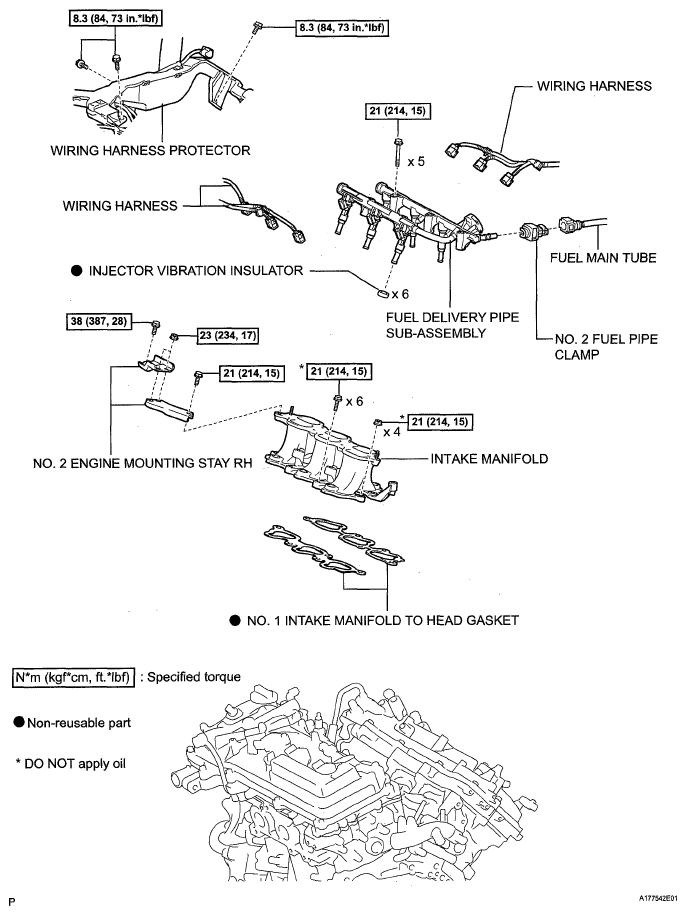

Fig 2: Identifying Intake Manifold Replacement Components And Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

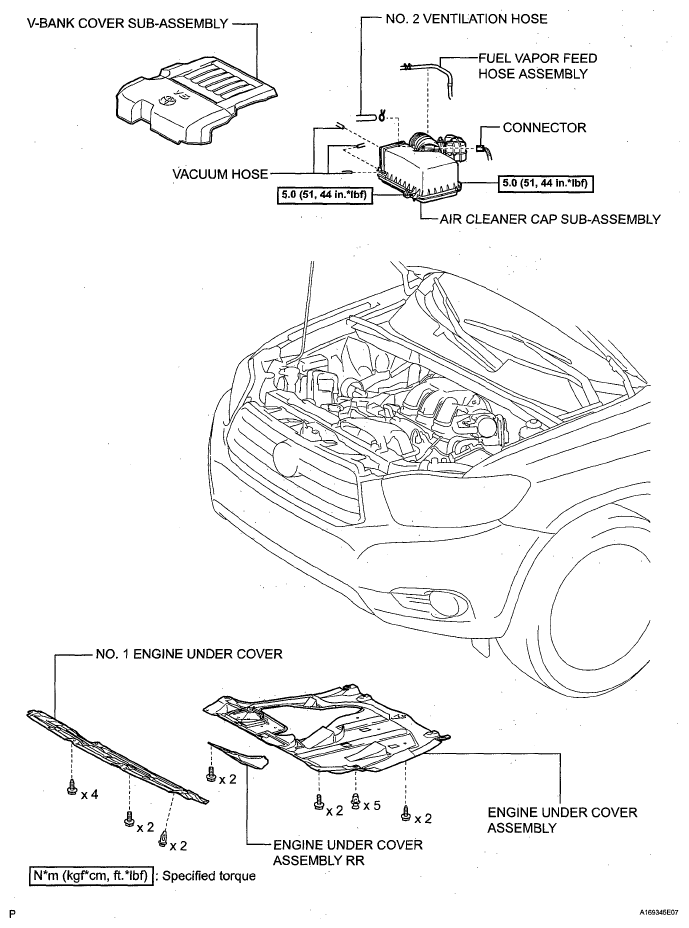

Fig 3: Identifying Intake Manifold Replacement Components And Torque Specifications (3 Of 4)

Fig 4: Identifying Intake Manifold Replacement Components And Torque Specifications (4 Of 4)
