Lumbar Switch: Installation

  1. INSTALL LUMBAR SWITCH
    1. Install the lumbar switch with the 2 screws.
  2. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY  (See REASSEMBLY )

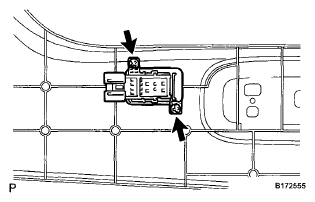

    Fig 1: Locating Lumbar Switch Screws
    G06015064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB  (See REASSEMBLY )
  4. INSTALL RECLINING POWER SEAT SWITCH KNOB  (See REASSEMBLY )
  5. INSTALL FRONT SEAT ASSEMBLY  (See INSTALLATION )
  6. INSTALL INNER SEAT TRACK COVER  (See INSTALLATION )
  7. INSTALL OUTER SEAT TRACK COVER  (See INSTALLATION )
  8. INSTALL FRONT SEAT HEADREST ASSEMBLY
  9. INSPECT FRONT SEAT ASSEMBLY  (See INSTALLATION )
  10. INSPECT SRS WARNING LIGHT

    HINT:

    Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
