Power Steering Link: Components

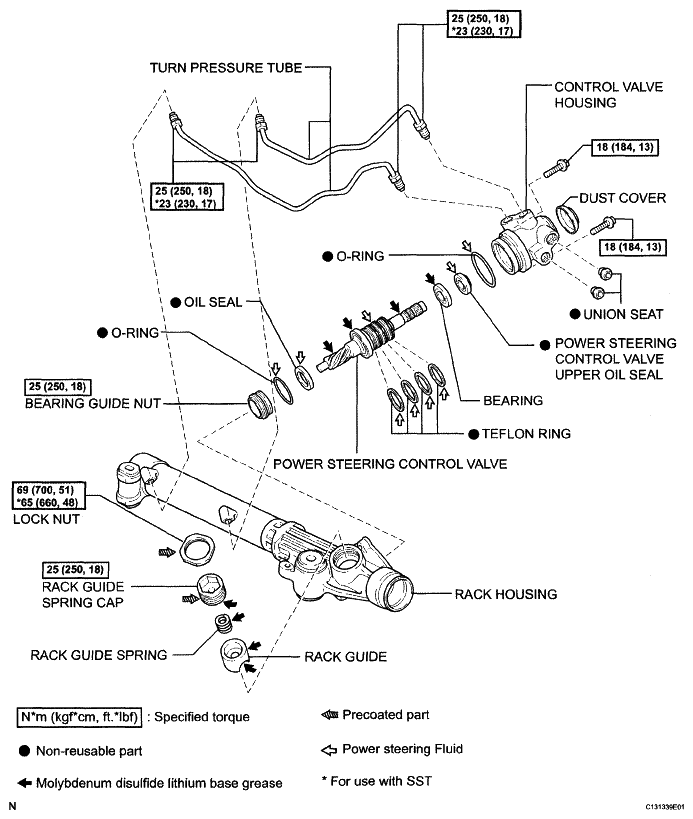

Fig 1: Power Steering Link Replacement Components With Torque Specifications (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

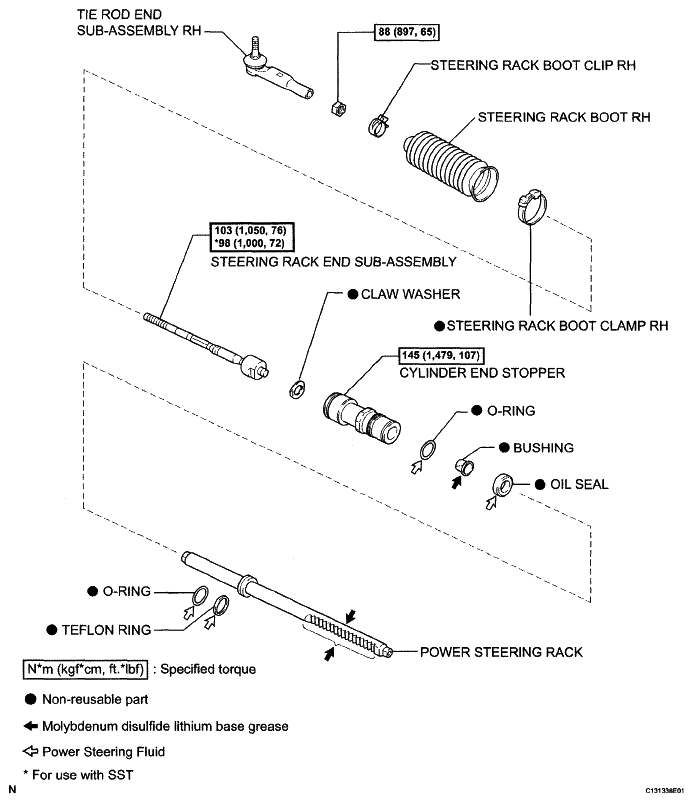

Fig 2: Power Steering Link Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

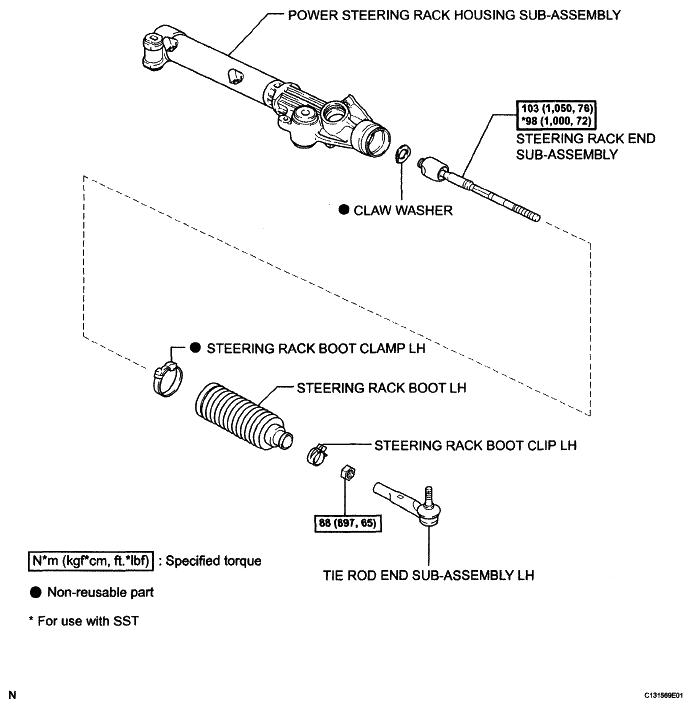

Fig 3: Power Steering Link Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

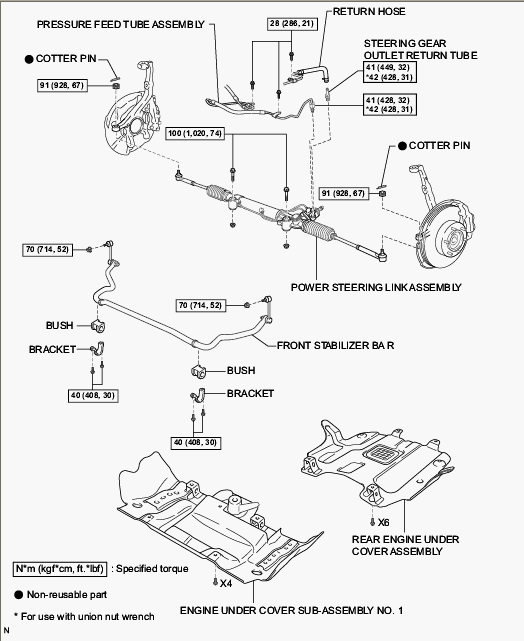

Fig 4: Power Steering Link Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
