Engine Immobiliser System: Notes

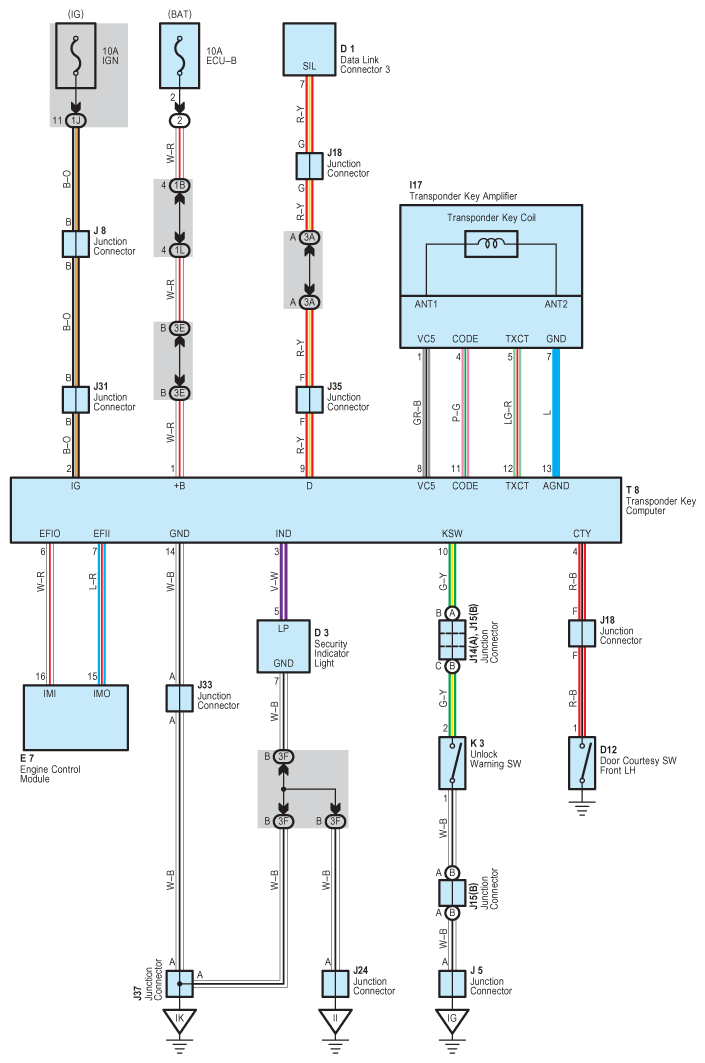

Fig 1: Engine Immobiliser System - Circuit Diagram

G07601357

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
