Cruise Control (1GR-FE): Notes

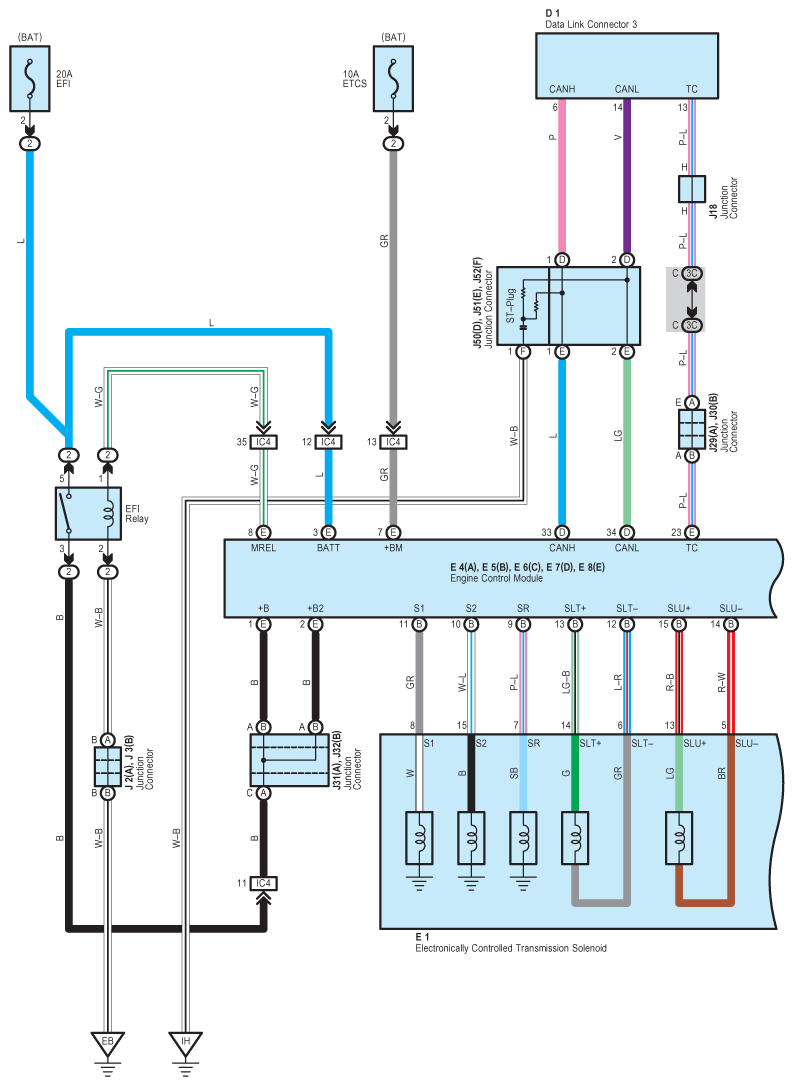

Fig 1: Cruise Control (1GR-FE) - Circuit Diagram (1 Of 4)
G07601460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

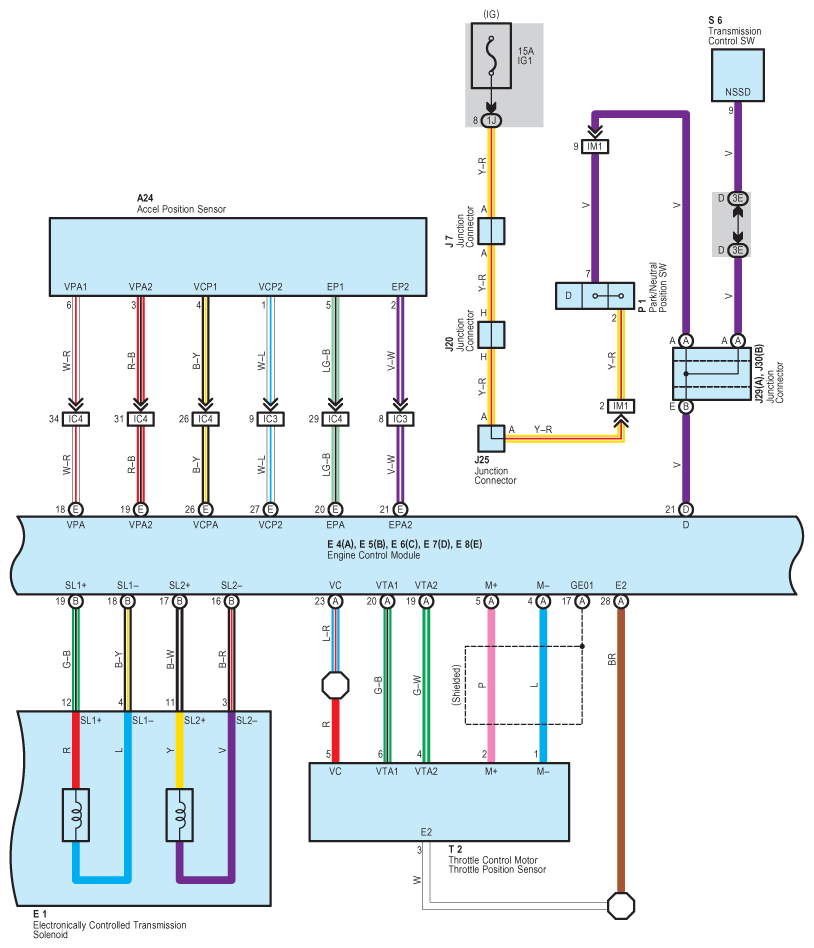

Fig 2: Cruise Control (1GR-FE) - Circuit Diagram (2 Of 4)
G07601461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

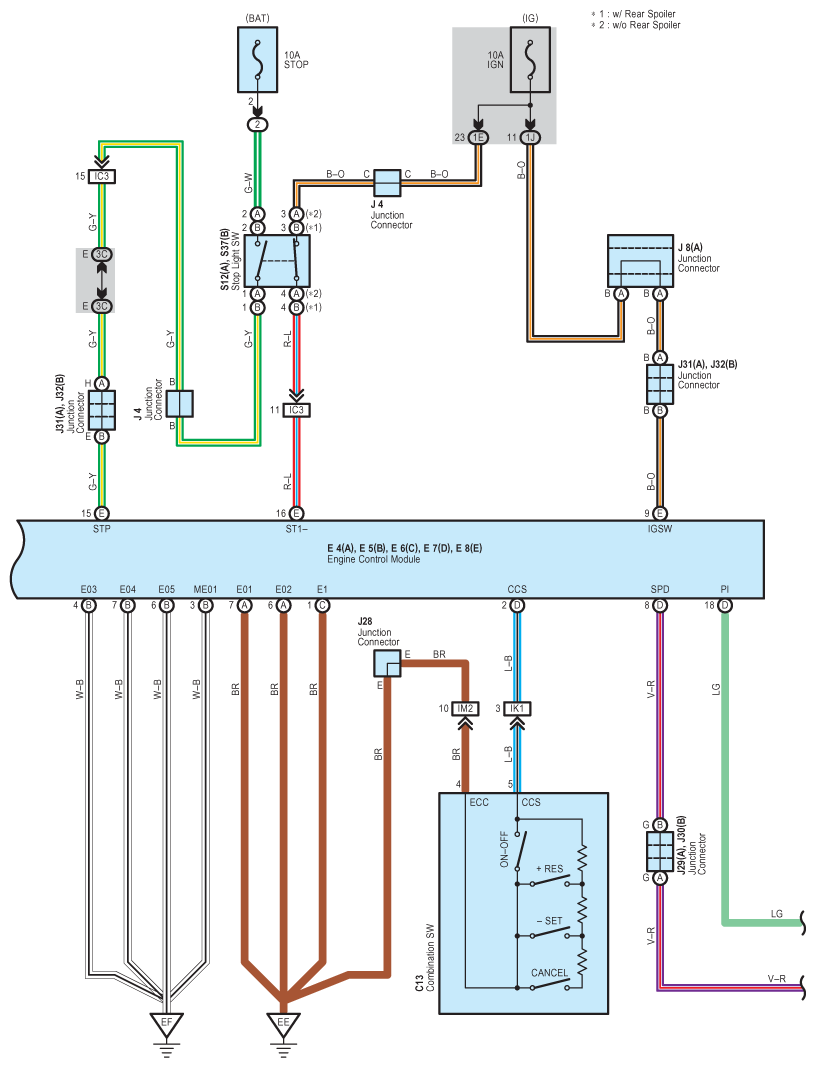

Fig 3: Cruise Control (1GR-FE) - Circuit Diagram (3 Of 4)
G07601462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

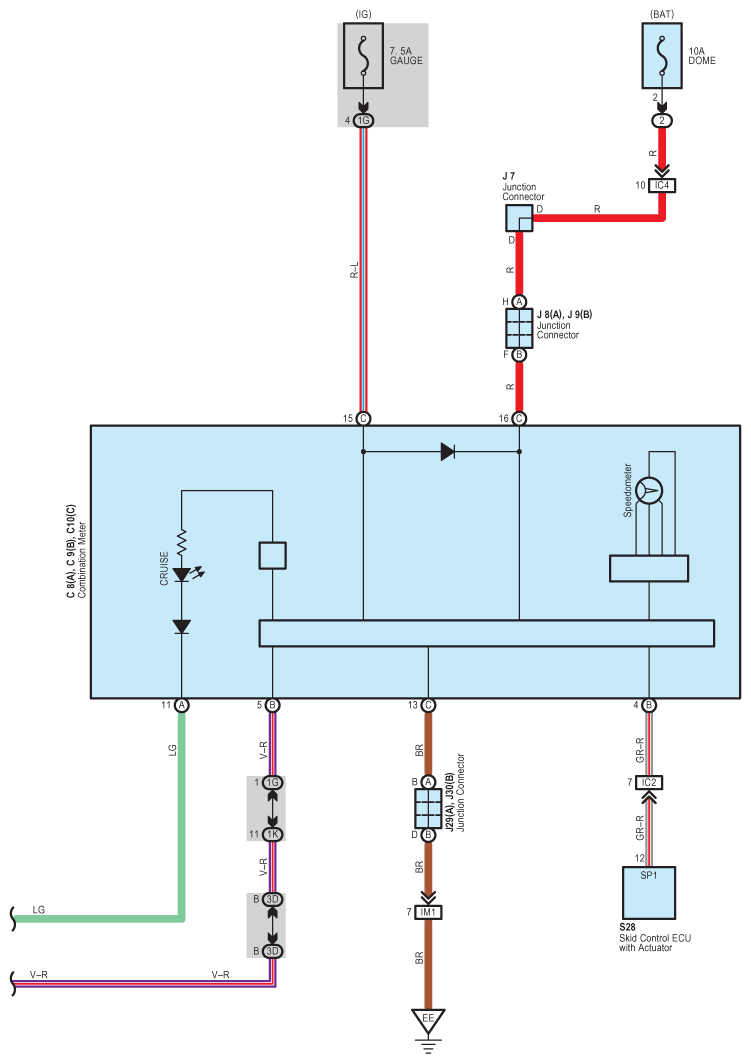

Fig 4: Cruise Control (1GR-FE) - Circuit Diagram (4 Of 4)
G07601463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
