Mass Air Flow Meter: Components

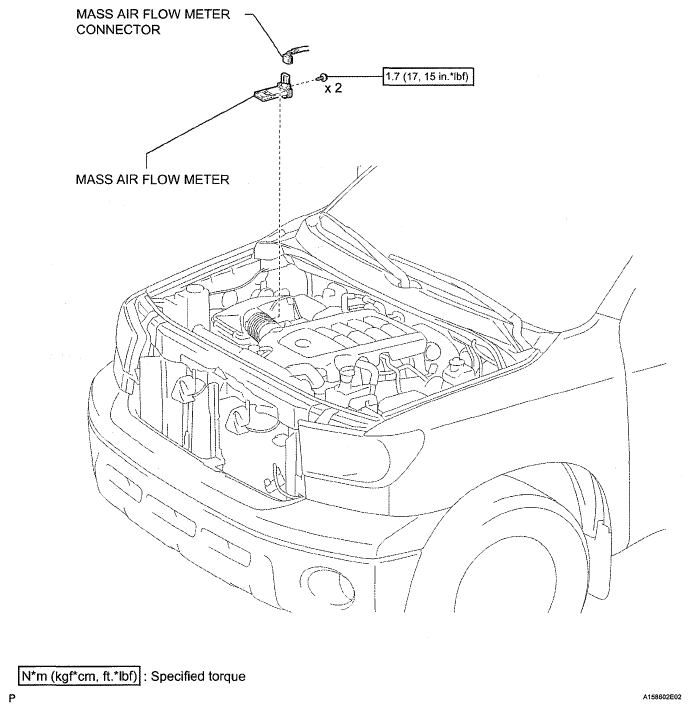

Fig 1: Identifying Mass Air Flow Meter Replacement Components With Torque Specification
G05681714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
