Power Seat Driver's Seat without Memory: Notes

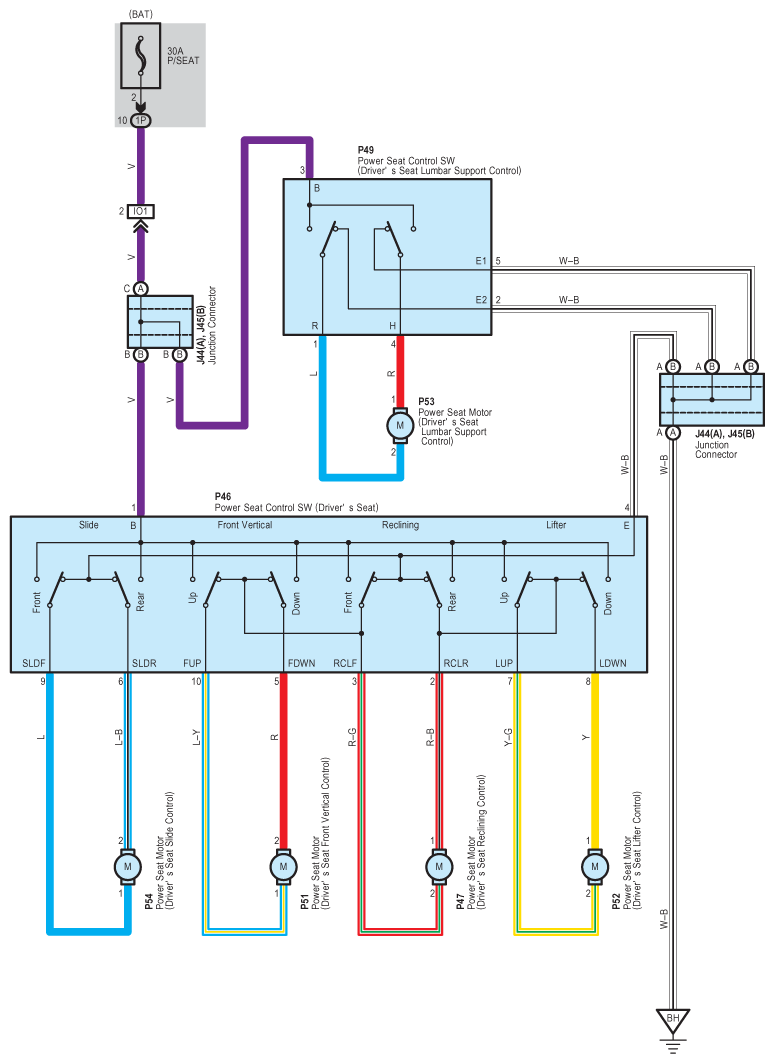

Fig 1: Power Seat Drivers Seat Without Memory - Circuit Diagram

G07588489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
