System Diagram

WARNING: This page is about a different variant/trim than selected.

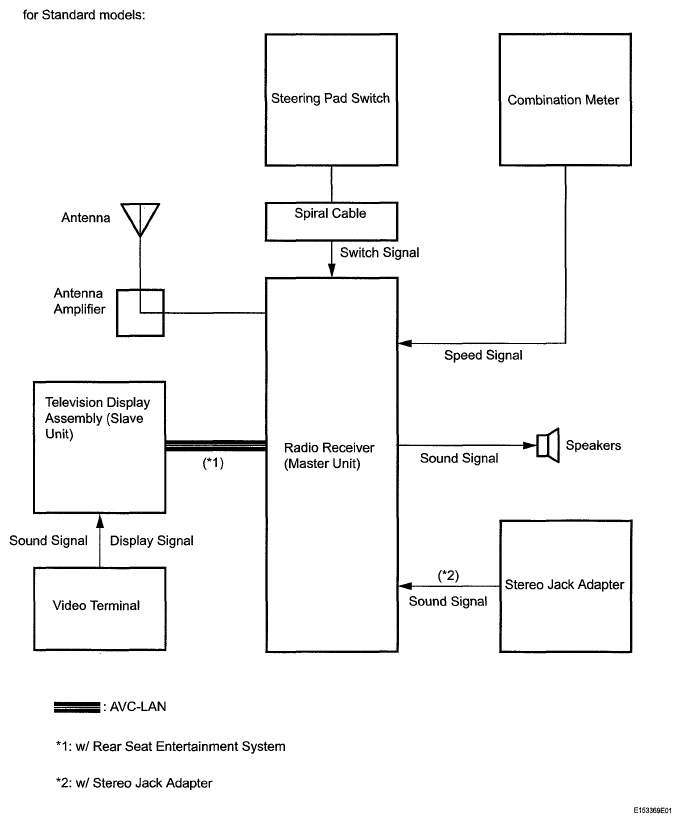

Fig 1: Audio And Visual System Diagram (1 Of 2)
G05626464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

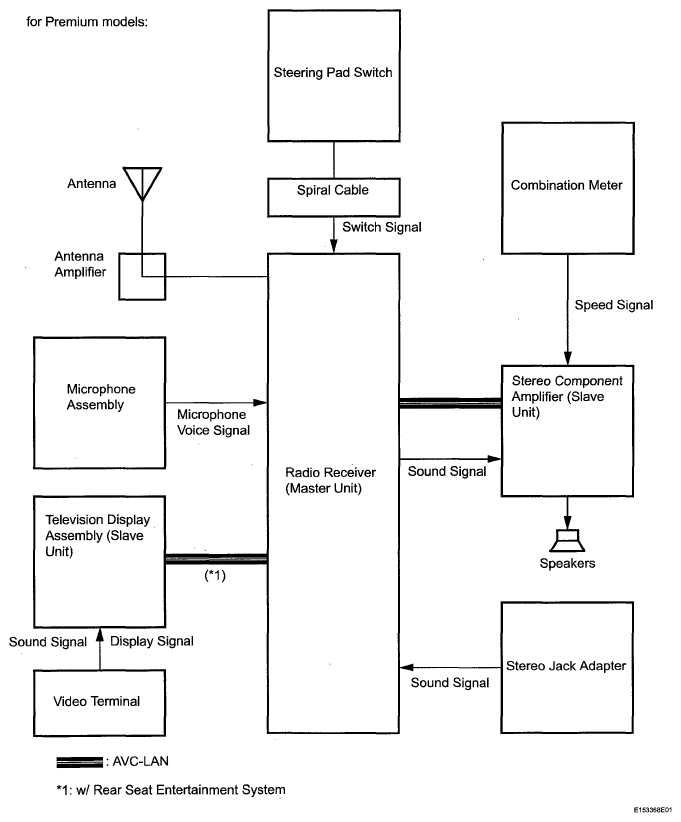

Fig 2: Audio And Visual System Diagram (2 Of 2)
G05626465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
