Inspection Procedure
WARNING: This page is about a different variant/trim than selected.

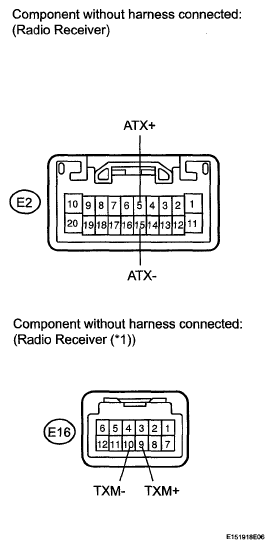

- INSPECT RADIO RECEIVER
- Disconnect the radio receiver connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition E2-5 (ATX+) - E2-15 (ATX-) Always 60 to 80 Ω E16-9 (TXM+) - E16-10 (TXM-) (*1) Always 60 to 80 Ω HINT:
*1: w/ Rear Seat Entertainment SystemNG: REPLACE RADIO RECEIVER (See RADIO RECEIVER )
OK: Go to next step
- CHECK HARNESS AND CONNECTOR
HINT:
For details of the connectors, refer to "TERMINALS OF ECU " (See TERMINALS OF ECU ).
- Referring to the AVC-LAN wiring diagram below, check all AVC-LAN circuits.
- Disconnect all connectors in all AVC-LAN circuits.
- Check for an open or short in all AVC-LAN circuits.
OK: There is no open or short circuit.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
- Referring to the AVC-LAN wiring diagram below, check all AVC-LAN circuits.
