PCV Valve: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Windshield Wiper Motor And Link Assembly With Torque Specifications
G05625714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Air Cleaner Case Sub-Assembly With Torque Specifications
G05640149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

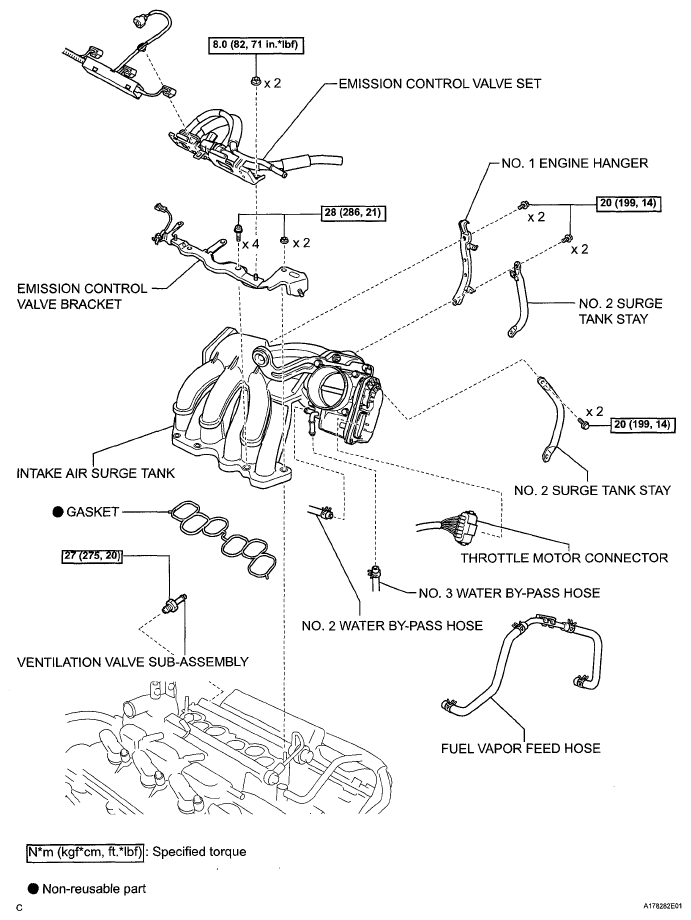

Fig 3: Emission Control Valve Set And Intake Air Surge Tank With Torque Specifications
G05639968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
