Home >> Toyota >> 2008 >> Highlander Base, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control - Except Hybrid >> Vehicle Stability Control System >> Parts Location

Parts Location

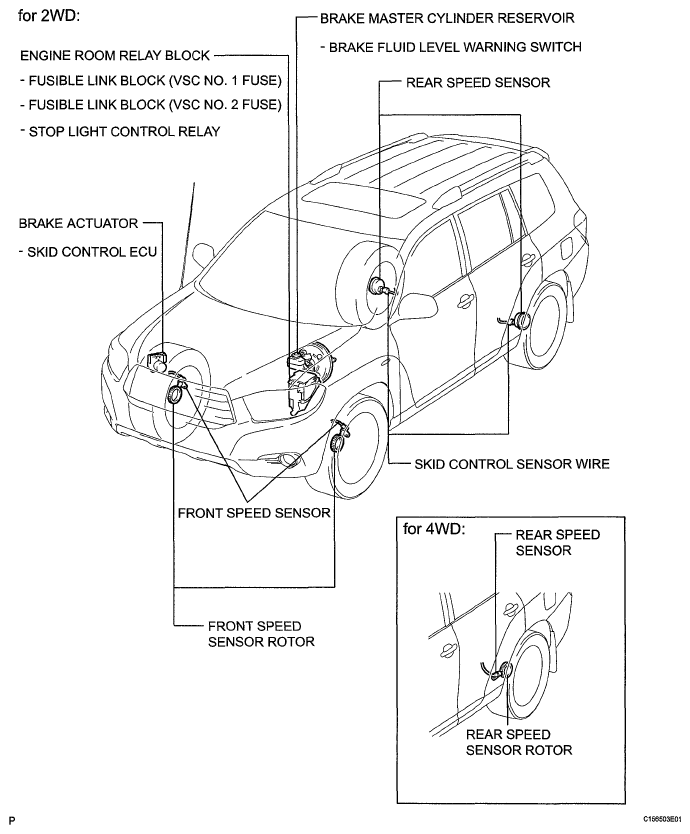

Fig 1: Identifying Vehicle Stability Control System Components (1 Of 2)
G05417634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

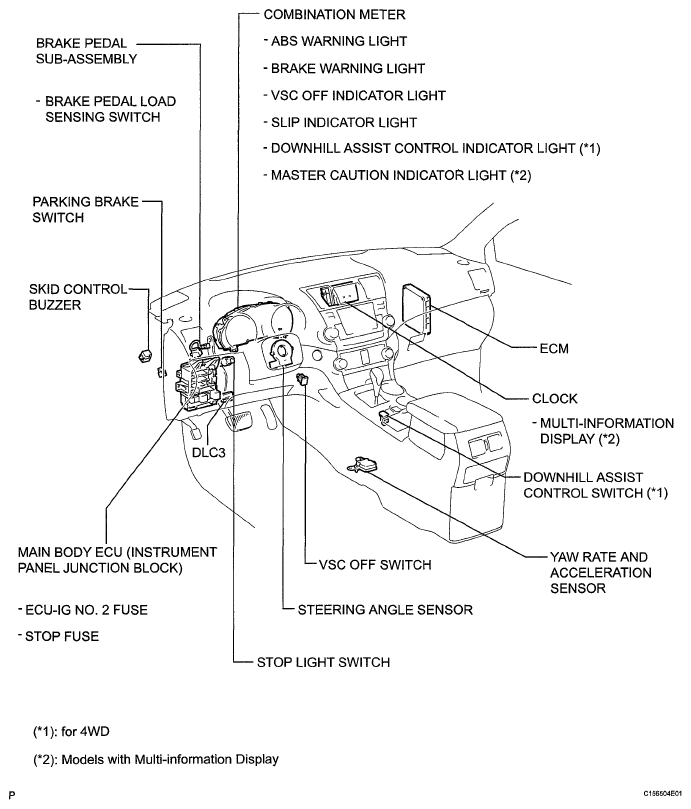

Fig 2: Identifying Vehicle Stability Control System Components (2 Of 2)
G05417635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
