Home >> Toyota >> 2008 >> Highlander Base, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control - Except Hybrid >> Steering Angle Sensor >> Components

Steering Angle Sensor: Components

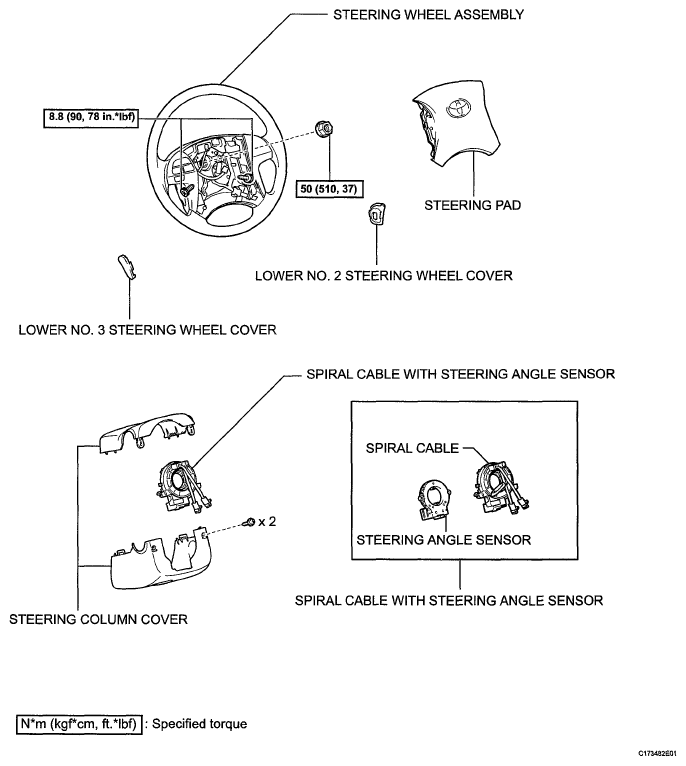

Fig 1: Steering Angle Sensor Replacement Components With Torque Specifications

G05417857

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
